| SPECIFICATION | YGTL304 |
| Input Power | 50W/60W 100W/120W |
| Beam Angle | 6°/10°/15°/30°/60° |
| Color Temp. | 3000K/4000K/5000K/5700K/RGB/RGBW |
| System Efficiency | 110-150 lm/W |
| CRI | ≥70 |
| Voltage | 100-277V |
| Power Factor | 0.95 |
| Housing | Aluminium Die-casting |
| Diffuser | Tempered glass+Lens |
| Working Temp. | -40℃~+50℃ |
| IP grade | IP66 |
| IK | IK08 |
| Optional | DMX |
| LED Life Span（L70/B50） | >60000 hours |

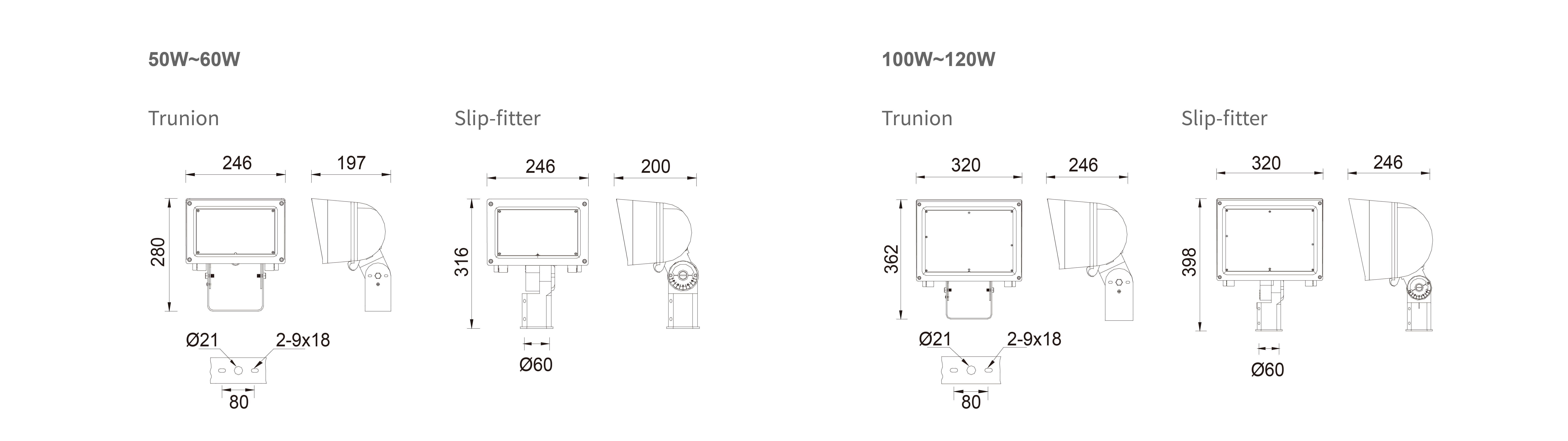

Size Chart
Distribution
