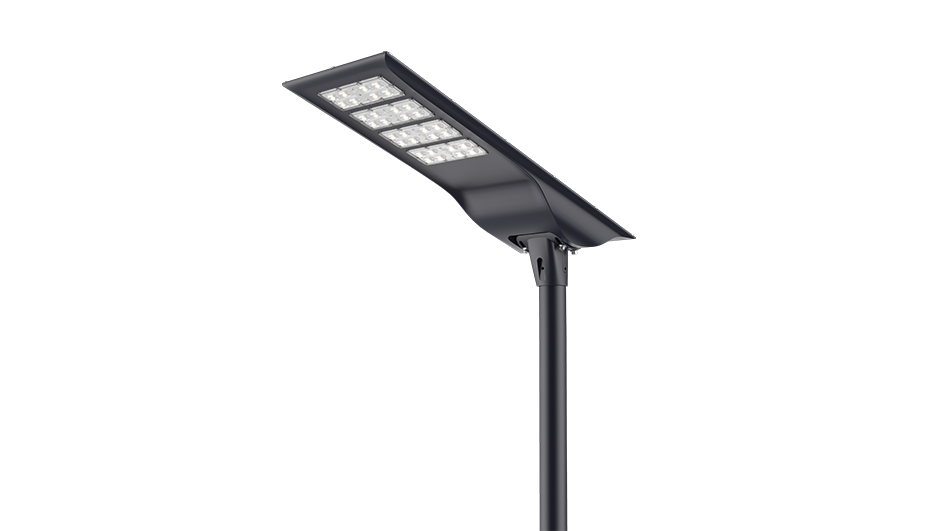

YZDS793 【20W~40W】

Housing:Die-casting Aluminum.
Monocrystalline A Grade solar panel, high efficiency solar cells,high fill factor module.
High performance lithium battery with 3 rainy day’s back-up.
Waterproof connector for street light exclusive use.
Option: Wireless remote control for customized parameter and real-time data.

SPECIFICATION                    YZDS793
Input Power  20W           30W           40W
Beam Angle TYPE I / TYPE II
Lumen 1850 lm      2500 lm      3300 lm
Color Temp. 3000K/4000K/5000K/5700K/6500K
CRI ≥70
Solar Panel Monocrystalline Solar Panel,Grade A

Lithium Battery

12.8/18AH   12.8/24AH   12.8/30AH
Discharging Time 8-12h/day
Rainy Day 3days
Working Temp. -25℃~+55℃
IP grade IP66

Light,Time and PIR remote control

Charging Time 6-8h
