YZDL736【 40W~300W】

Die-casting Aluminum ,anti-corrosion powder coating finish.

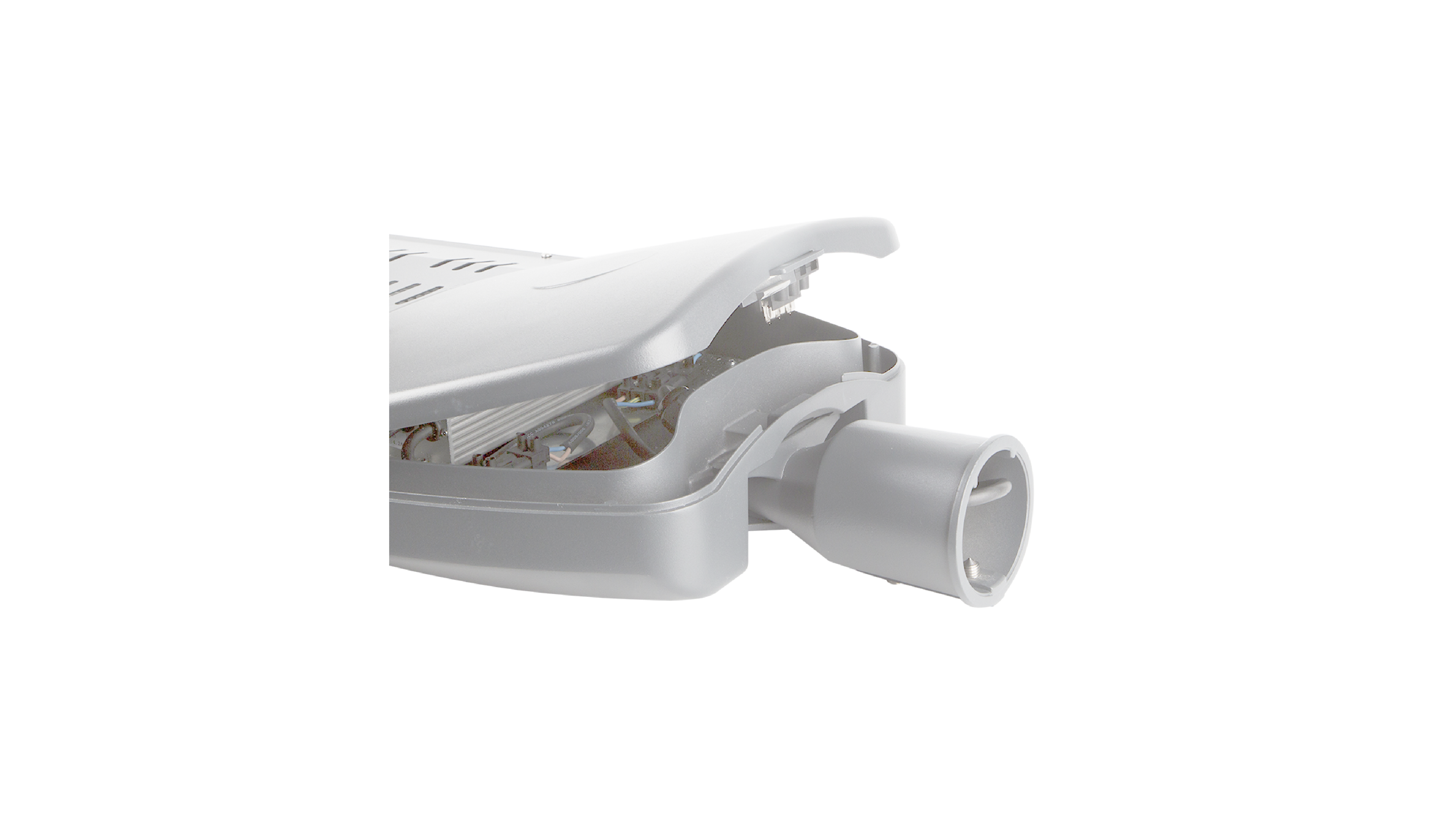

Toolless access Quick maintainance.
Optional parts Disconnector (at request).
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                    YZDL736
Input Power   40W~60W    90W~120W    150W~180W    200W~240W    280W~300W
Beam Angle

TYPE I / TYPE II / TYPE III / TYPE IV

Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 110-170LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional

SPD/ Photocell/ Motion sensor/ NEMA

LED Life Span(L70/B50) >60000 hours


736-02

路灯-模组-01
