YGCL545 【70W~200W】

Die-casting Alu. fixture body
Convection heat dissipation structure provides reliable thermal management
Super clear tempered safety glass

Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                    YGCL545
Input Power  70W~100W       150W~200W
Beam Angle 90°/120°
Color Temp. 3000K/4000K/5000K/5700K
System Efficiency 110-130 lm/W
CRI ≥70
Voltage 198-265V(DOB SOLUTION)
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Tempered glass
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08

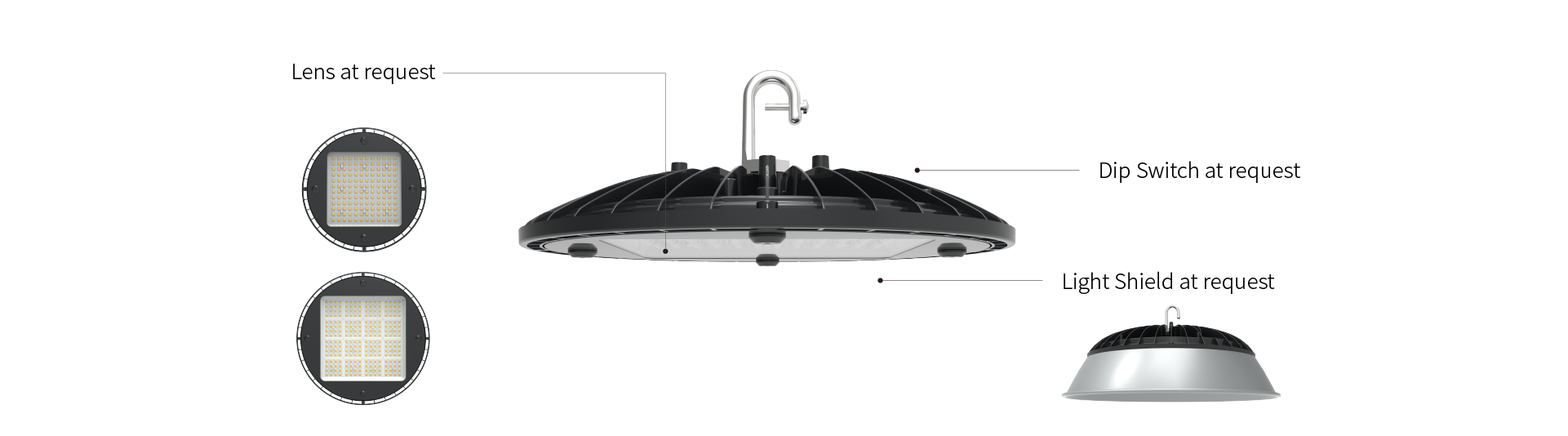

Optional SPD/ Motion sensor
LED Life Span（L70/B50） >60000 hours




545-04545-05

545配光-15

YGCL545
