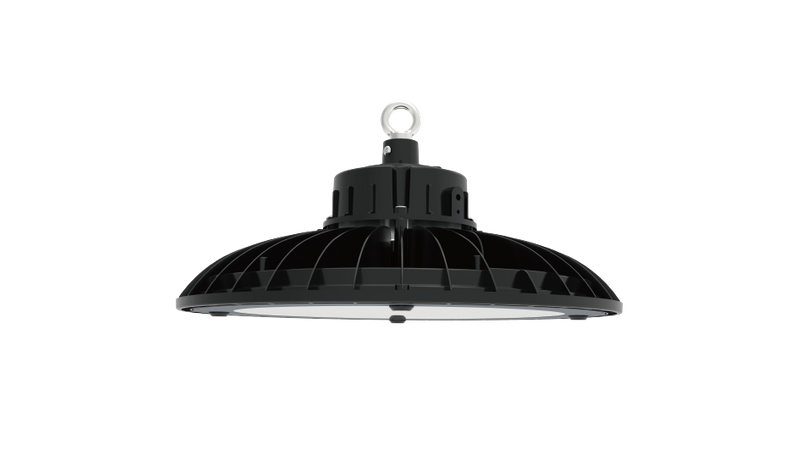

YGCL546 【70W~200W】

Die-casting Alu. fixture body.
Convection heat dissipation structure provides reliable thermal management.
Super clear tempered safety glass.

Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION YGCL546
Input Power  70W~100W         150W~200W
Beam Angle 60°/90°/120°
System Efficiency 100-150 lm/W
Color Temp.  3000K / 4000K / 5000K / 5700K
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Tempered glass
Working Temp. -30℃~+50℃
IP grade IP66
Optional SPD/Motion sensor
LED Life Span（L70/B50） >60000 hours



546-05546-04


546+550+538+536-14


YGCL546
