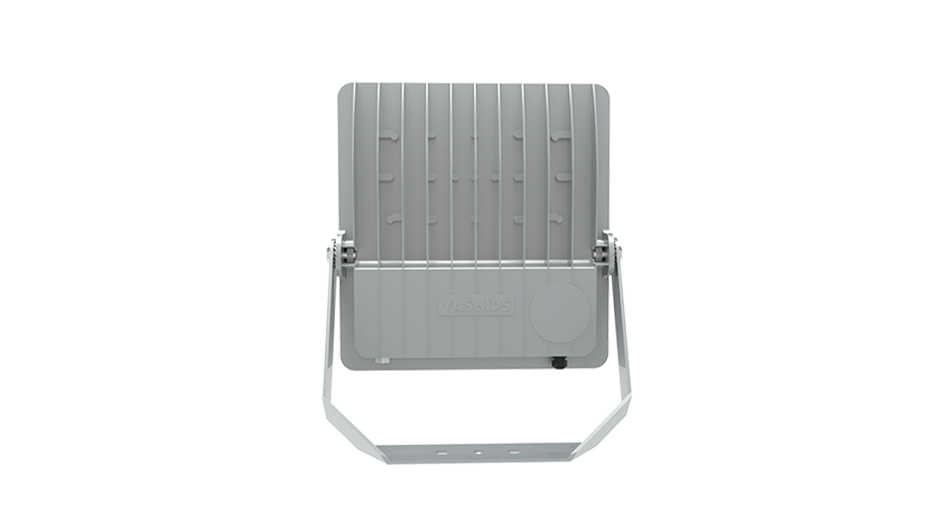

YGTL330 【150W~480W】

Integrated one-piece designed fixture.
Tempered safety glass, self-cleaning and propect from dust absorption.
High light transmittance of multi-angle PMMA lens available for varous lighting application.
Support DMX512 control system.
Application: large landscape, bridge, billboard, stadium, etc.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                    YGTL330
Input Power  150W~180W     200W~240W     300W~360W     400W~480W
Beam Angle 15°/30°/45°/60°/90°/50°x120°/60°x120°
Color Temp. 3000K/4000K/5000K/5700K
System Efficiency 120-150 lm/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Tempered glass
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional

Light shield/Dial/SPD
LED Life Span（L70/B50） >60000 hours



330-02

330-03



YGTL330
