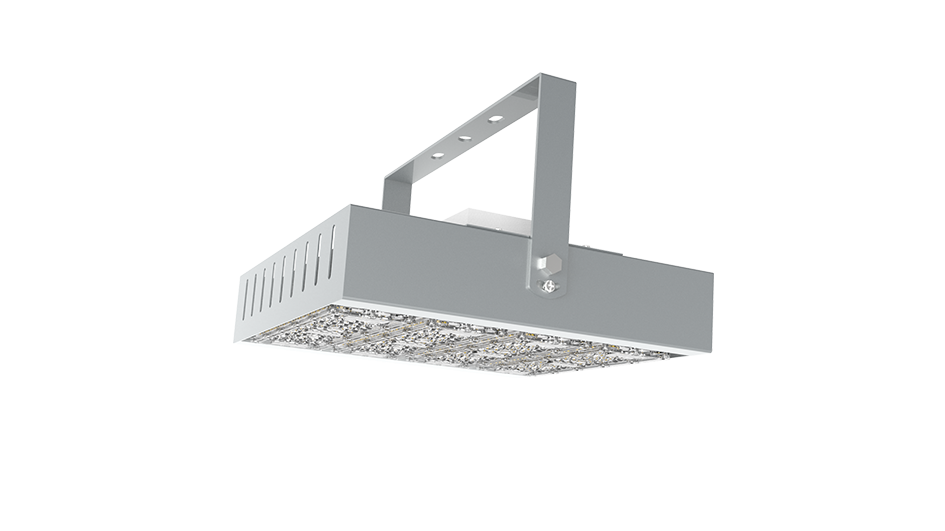

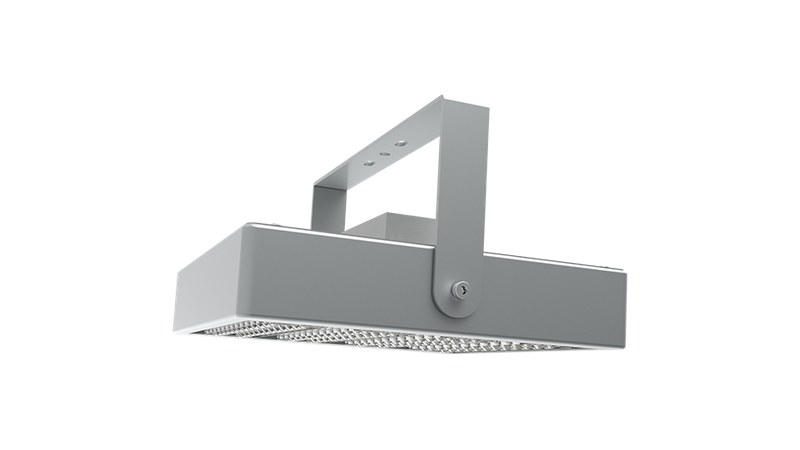

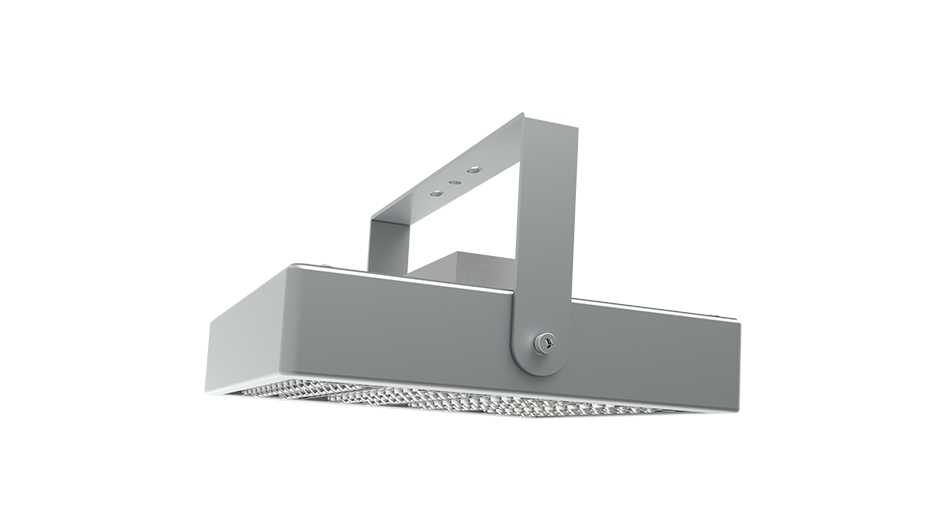

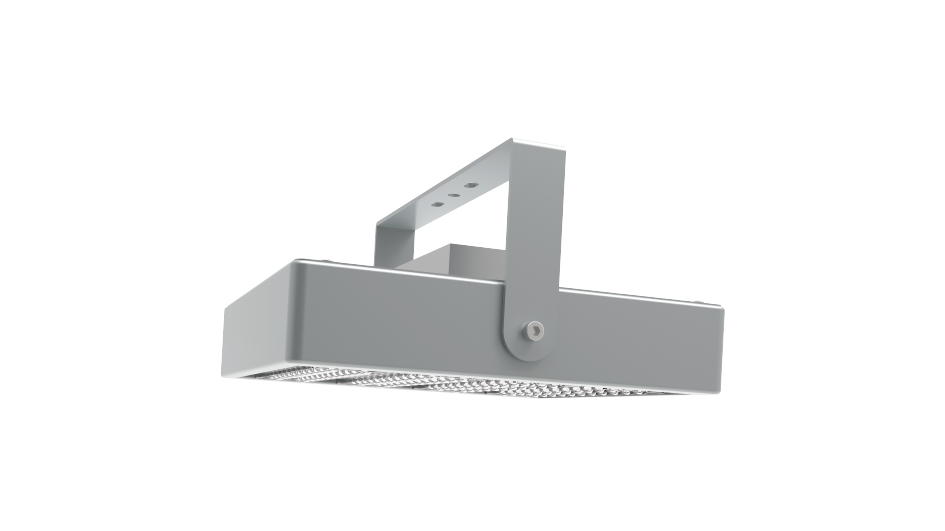

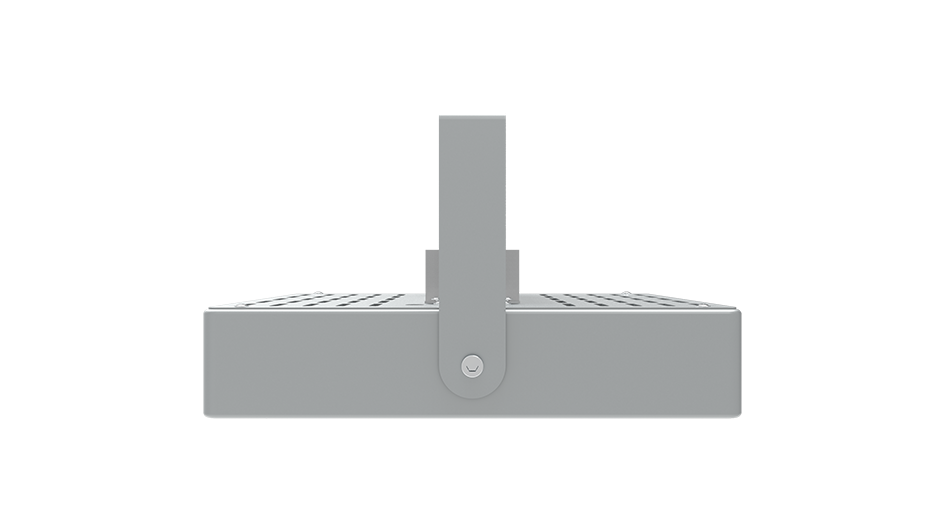

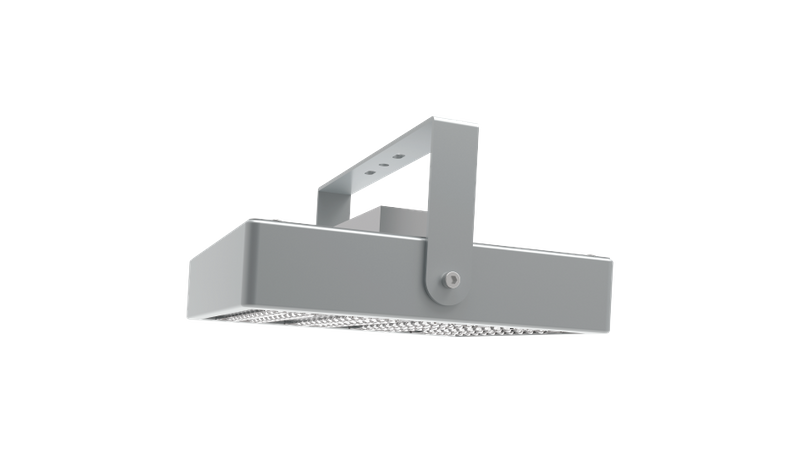

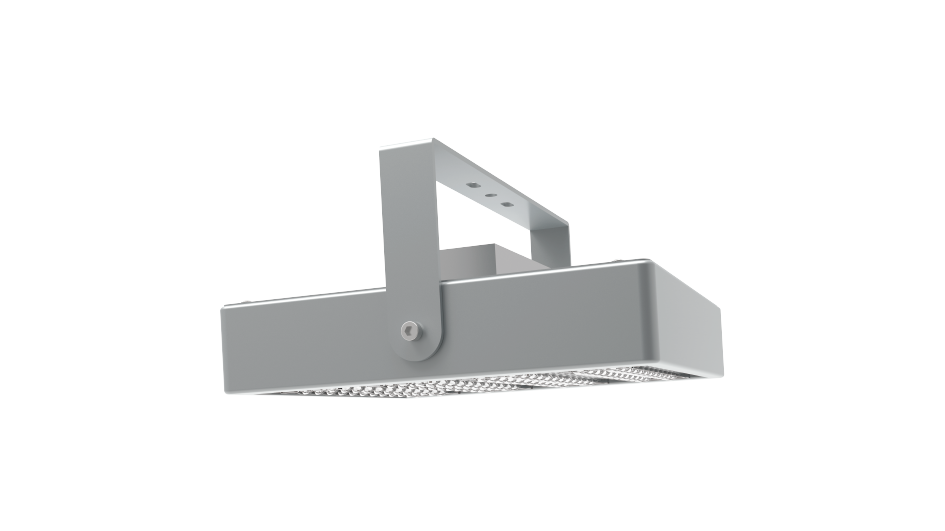

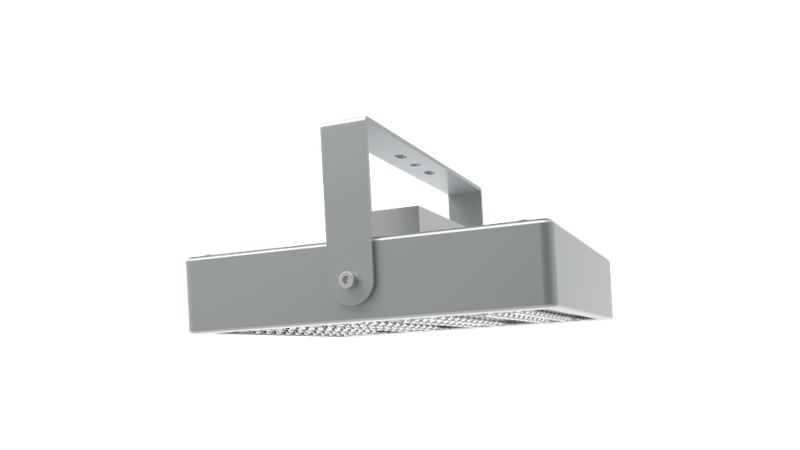

YXL321-S 【35W~300W】

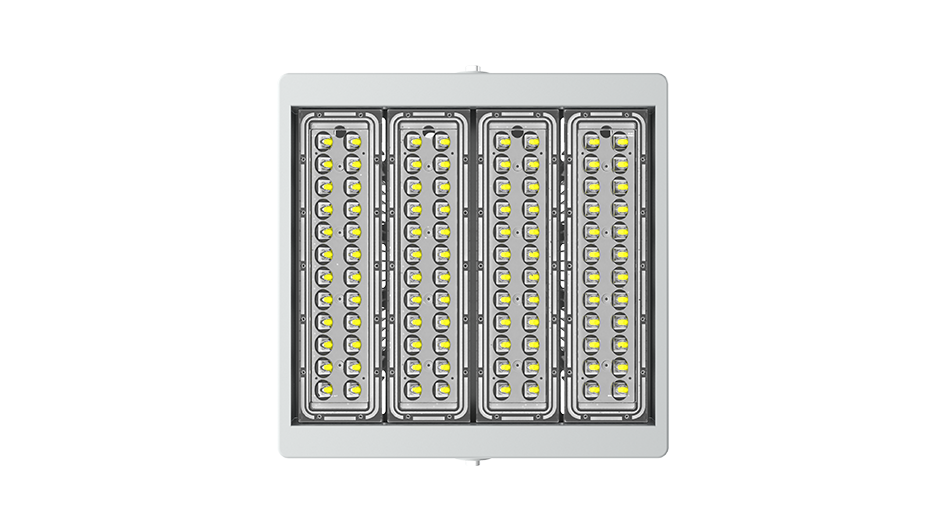

Extruded Aluminum body combined with Aluminum LED Modules, flexible combination for various power.
High transmittance PC diffuser,10% higher system efficiency.

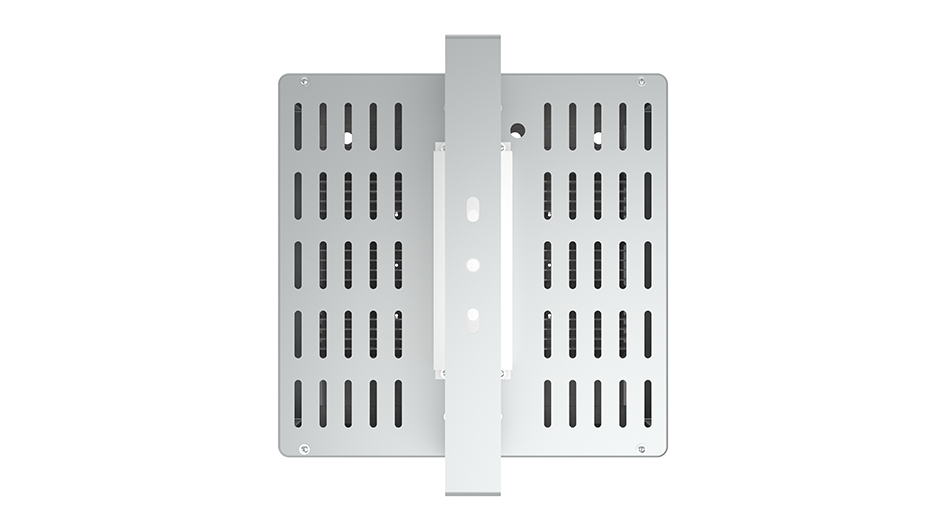

Electrical box separated with optical part,better thermal dissipation.
Modules are connected by pluggable waterproof connector for easy maintenance.

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

SPECIFICATION           YXL321-S

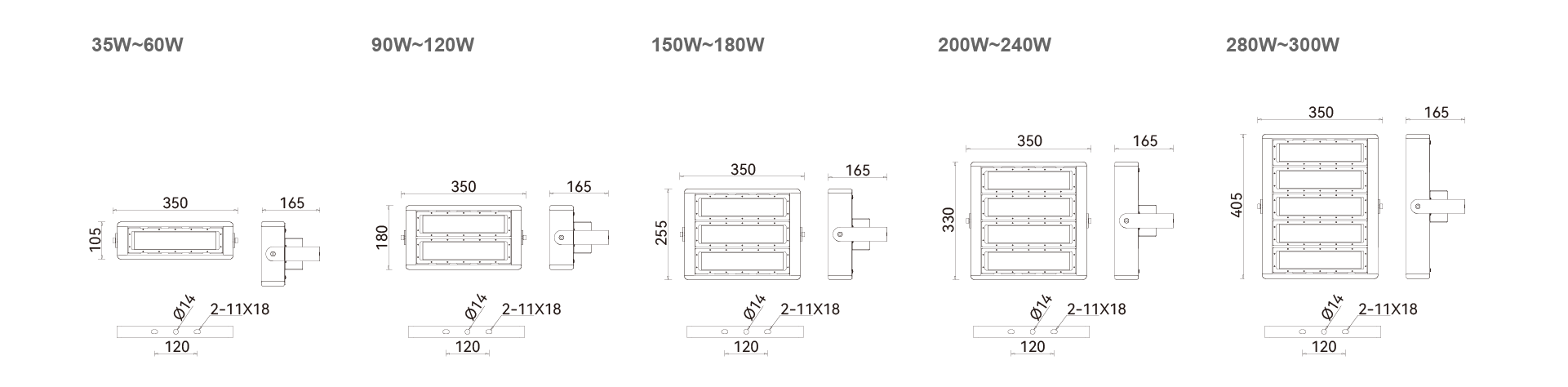

Input Power   35W~60W    90W~120W   150W~180W   200W~240W   280W~300W
Beam Angle    90° / 90°x110°/ 90°x120°
System Efficiency     110-170 lm/W
Color Temp. 3000K / 4000K / 5000K / 5700K
CRI ≥70
Voltage 100-277V
Power Factor 0.95

Aluminum Alloy

Diffuser Lens
Working Temp. -30℃~+50℃
IP grade IP66
Optional SPD/NEMA
LED Life Span(L70/B50) >60000 hours
