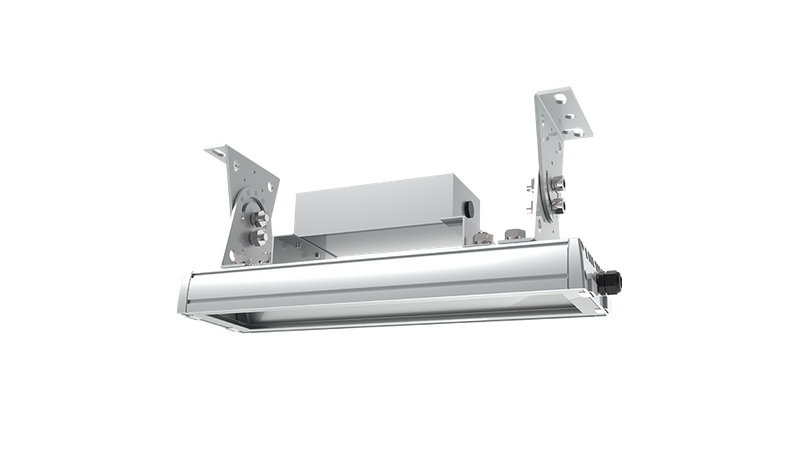

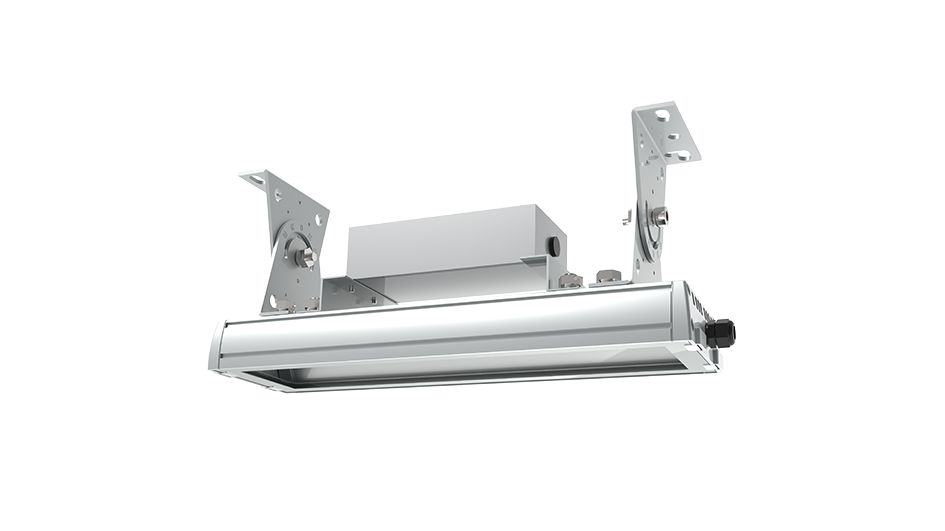

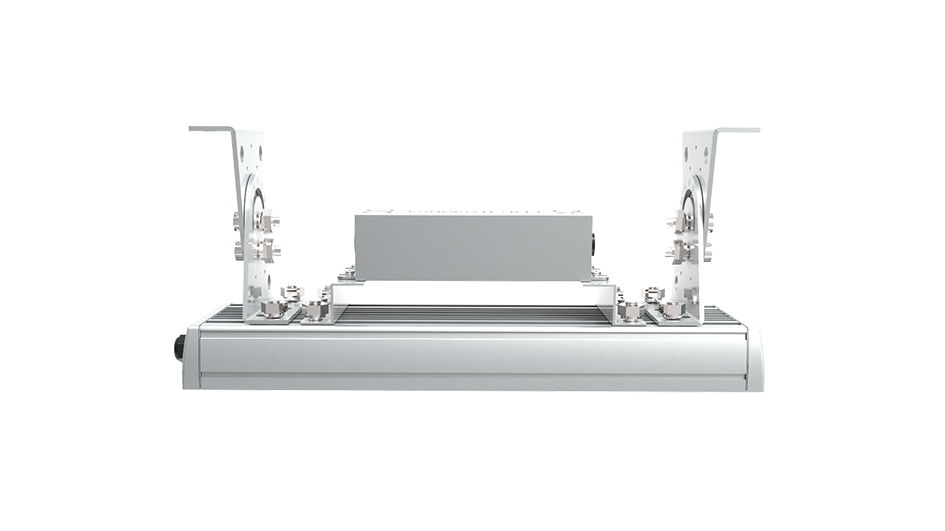

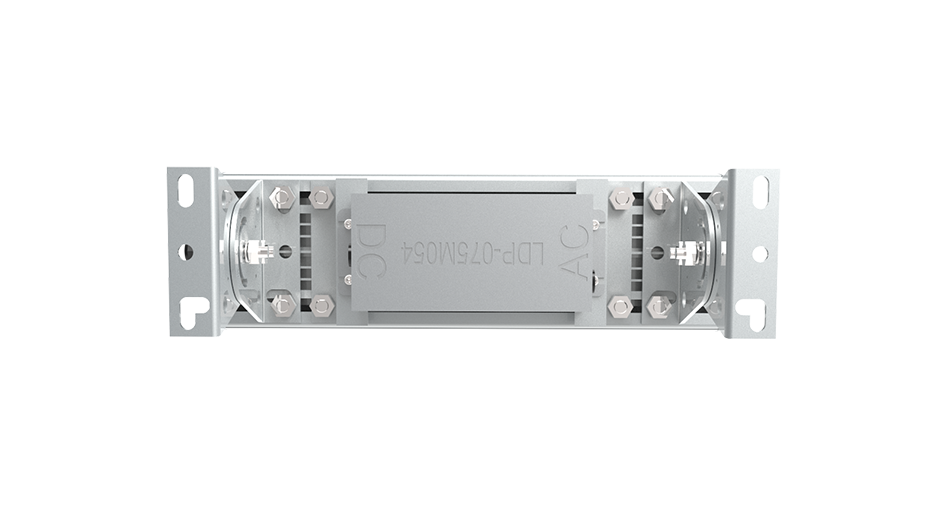

YZDL721 【40W~240W】

Extruded aluminum housing.
Tempered safety glass.
Power supply:external power supply.

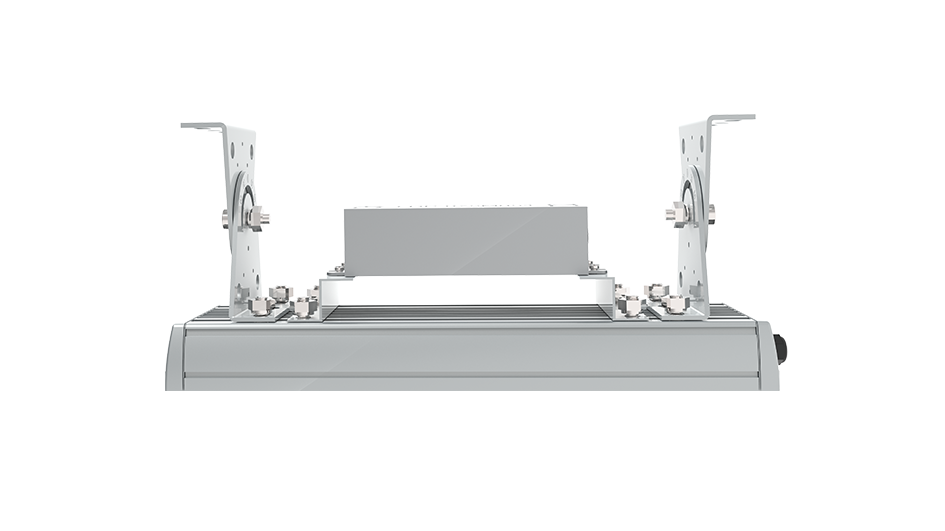

Installation:Mounting bracket 0-60°(adjustable).


Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                    YZDL721
Input Power   40W    60W    80W   100W   120W   140W   160W   180W   200W    240W
Beam Angle 90° / 60°x120° / 90°x120°
System Efficiency              100-150 lm/W
Color Temp. 3000K / 4000K / 5000K / 5700K
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Extruded aluminum housing
Diffuser  Tempered glass
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional SPD/NEMA
LED Life Span（L70/B50） >60000 hours


721-03

隧道-50x50-06


YZDL721

Related Products

YXL734-S 【60W~300W】
YXL734-S 【60W~300W】

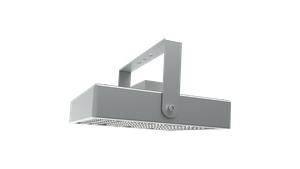

YXL321-S 【35W~300W】
