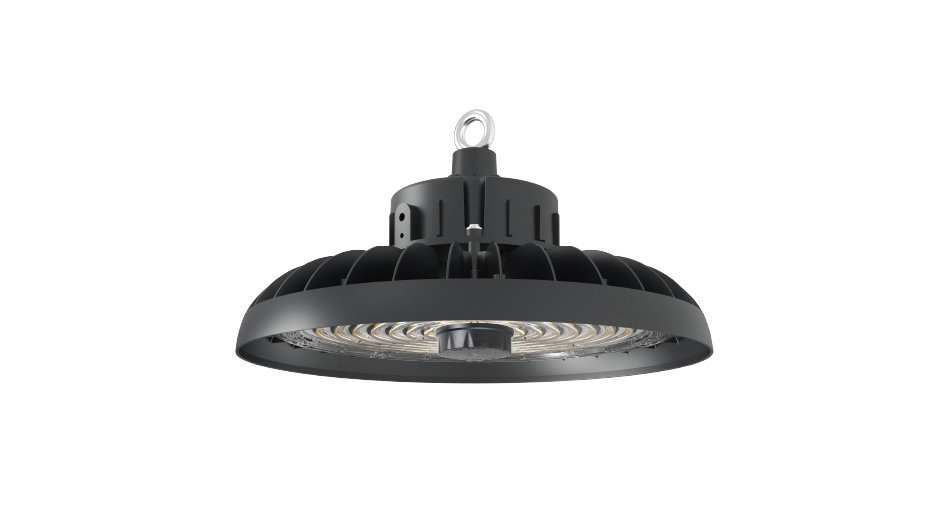

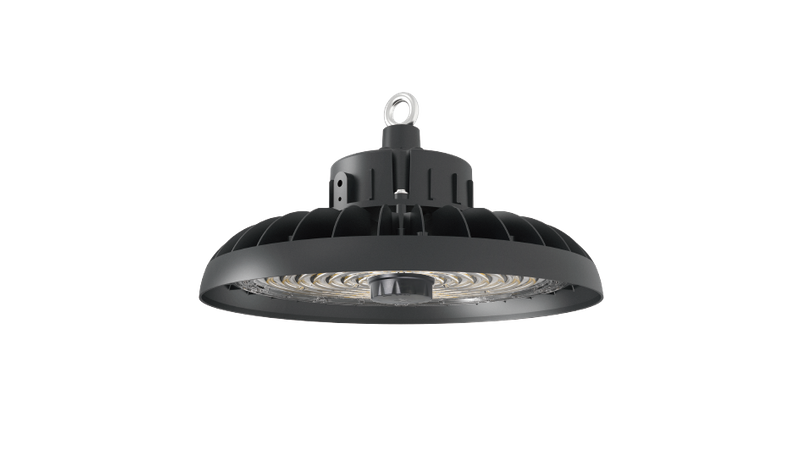

YGCL550-Sensor【80W~240W】

Die-cast aluminum fixture body,impact and corrosion resistant.
Optical PC lens with professional light distribution glare free design provides uniform luminous.
Specific design with vertical fin 360° hollow enhance the excellent ventilation for optimal thermal dissipation and longer lifetime.
Optional extra two sized aluminum reflectors at request.
0-10V dimming function,SPD optional.
Warehouse,workshop,exhibition hall,etc.


Availability:

Product Description

550-07

SPECIFICATION	YGCL550
Input Power	80W~100W 120W~150W 180W~240W
Beam Angle	60°/90°/120°
System Efficiency	130-180 lm/W
Color Temp.	3000K / 4000K / 5000K / 5700K
CRI	≥70
Voltage	100-277V
Power Factor	0.95
Housing	Aluminum Die-casting
Diffuser	Lens
Working Temp.	-30℃~+50℃
IP grade	IP66

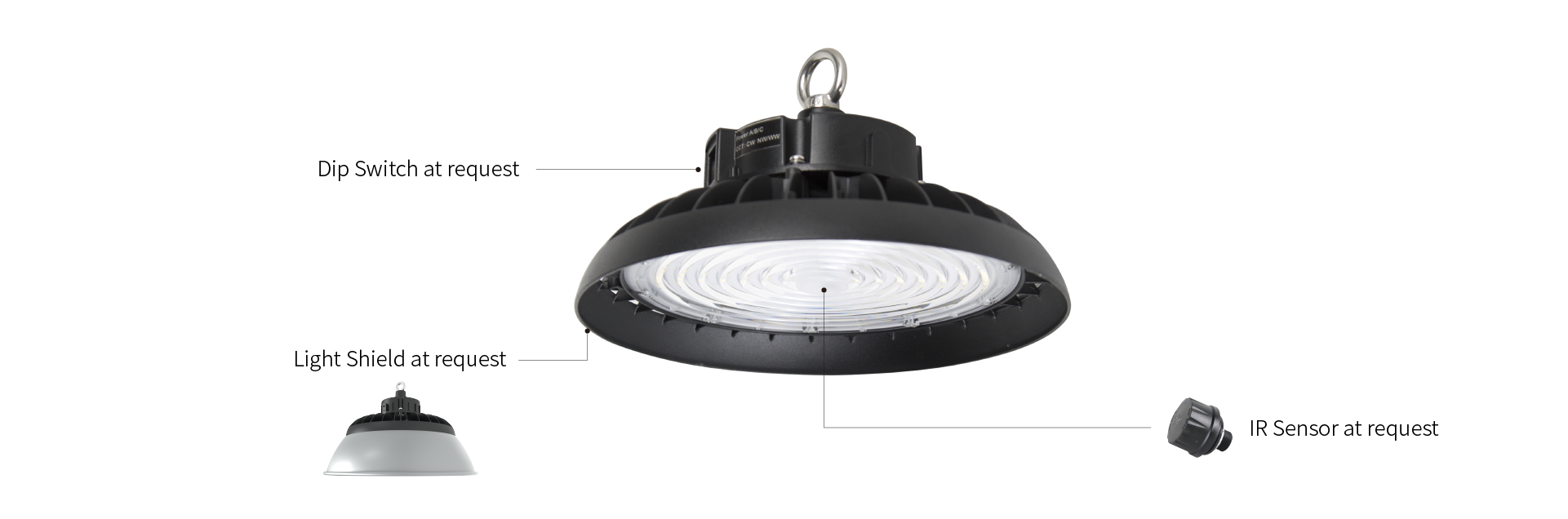

Optional	SPD/IR Sensor/Emergency power supply/ Emergency power supply/Lifter/ Dip-switch for Power and CCT
LED Life Span（L70/B50）	100000 hours

550-05

550-04

548-2

YGCL550
