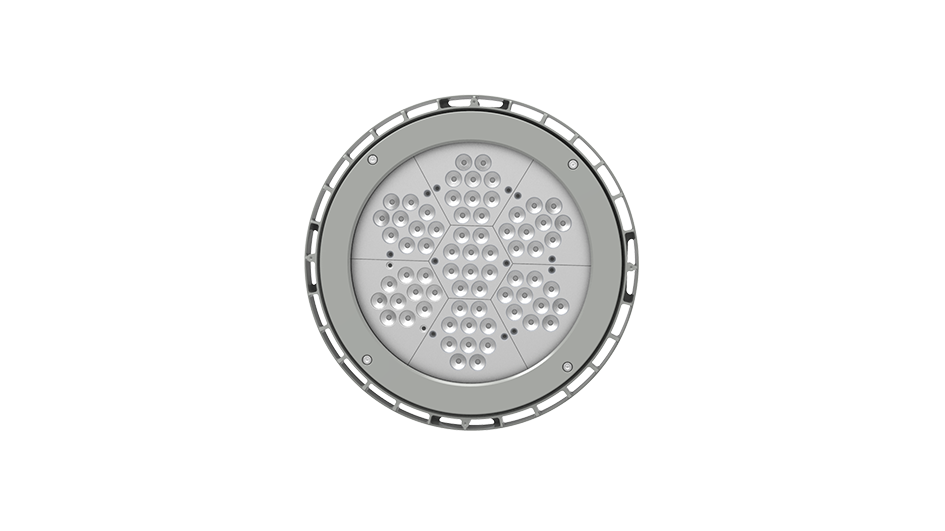

YXL538-W 【70W~180W】

High-pressure die-cast aluminum, impact resistance and corrosion resistance,
The main body of the lamp adopts a vertical fin design, in which the surrounding hollow 360° fins penetrate each other to enhance gas fluidity and accelerate heat dissipation.
Optional dimming, optional surge protector,
It is suitable for the top lighting of tunnels, garages, exhibition centers, etc.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION YXL538-W
Input Power  70W~80W     100W~120W     150W~180W
Beam Angle 90°/120°
System Efficiency 110-150LM/W
Color Temp.  3000K / 4000K / 5000K / 5700K
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminium Die-casting
Diffuser Tempered glass
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional SPD
LED Life Span(L70/B50) >60000 hours

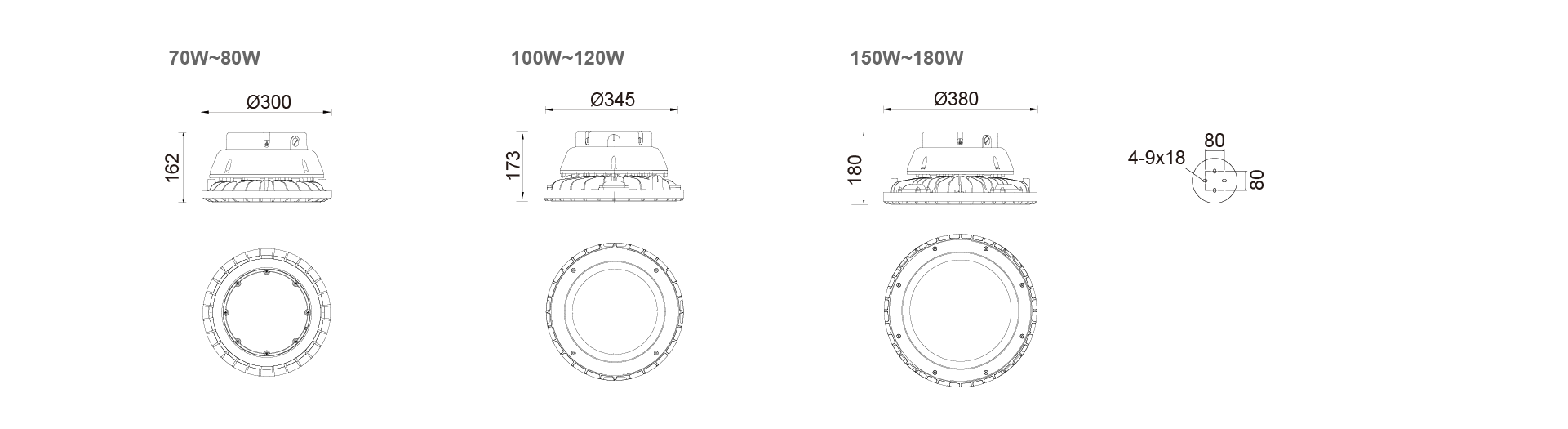

538-W-02

536+538-G+W配光-03


We-Jiangsu Yaships Lighting Group Co.,Ltd, is an enterprise specializing in lighting fixtures, electrical components and lamps manufacturing since 1988.
