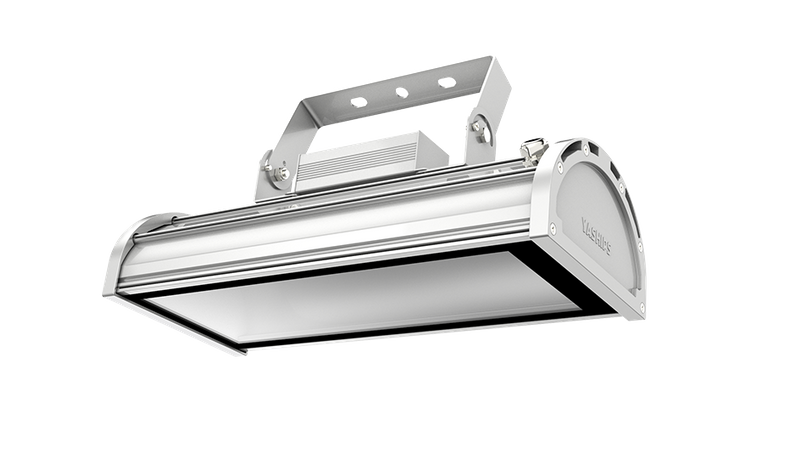

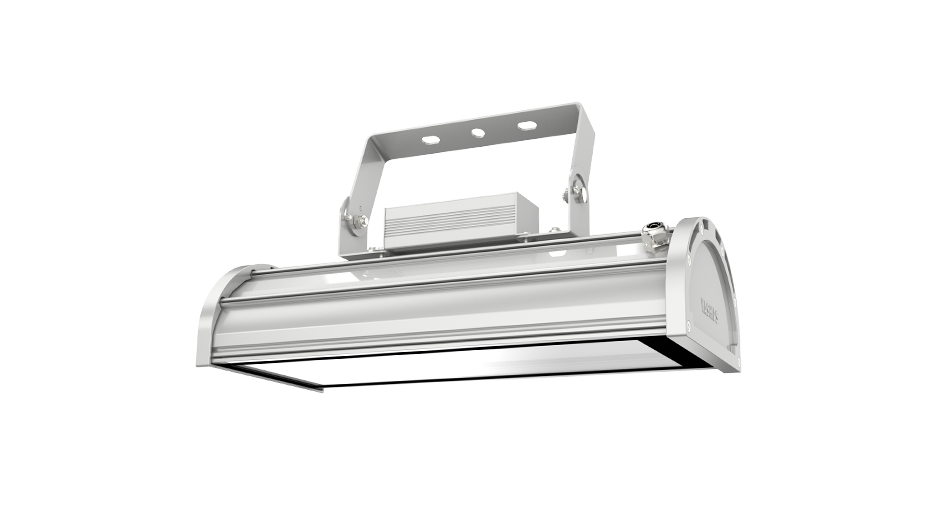

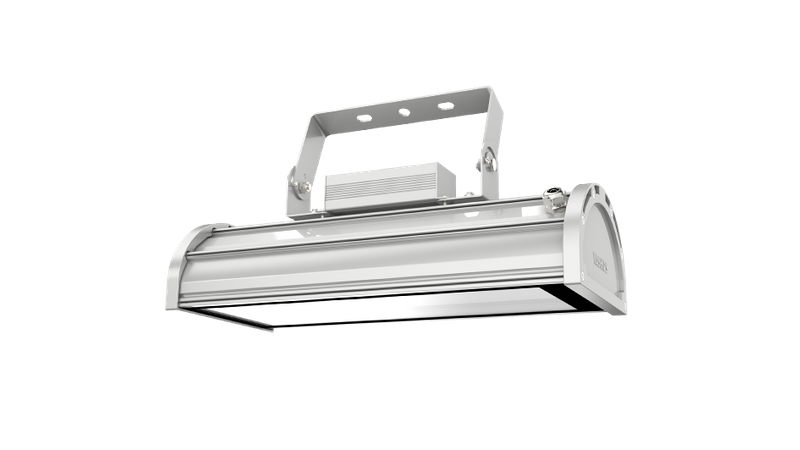

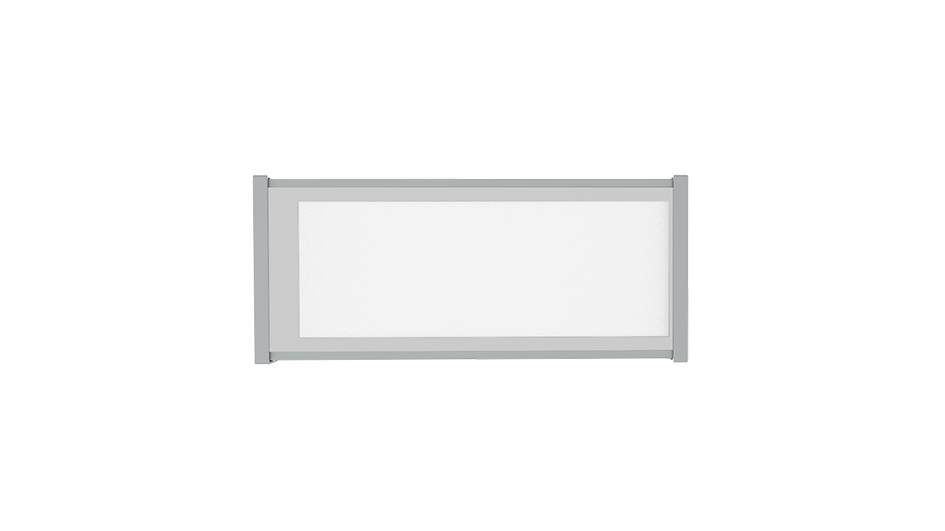

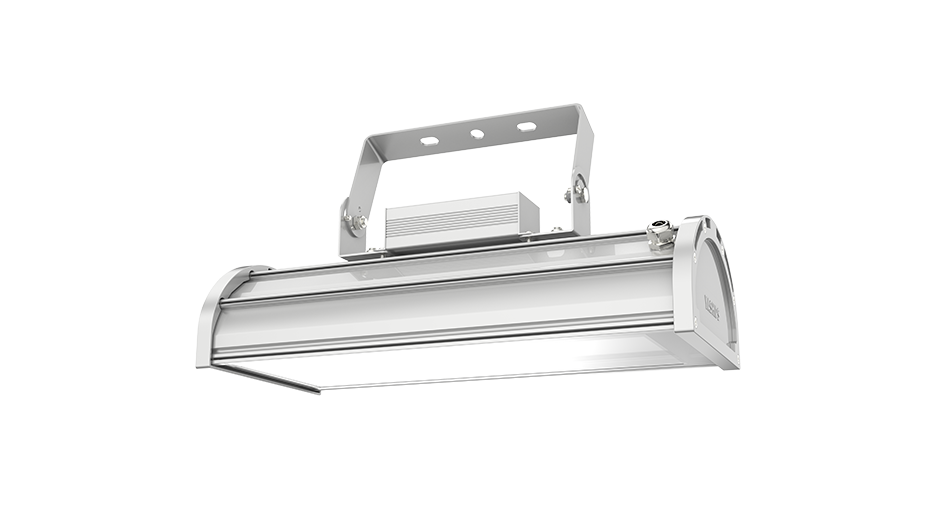

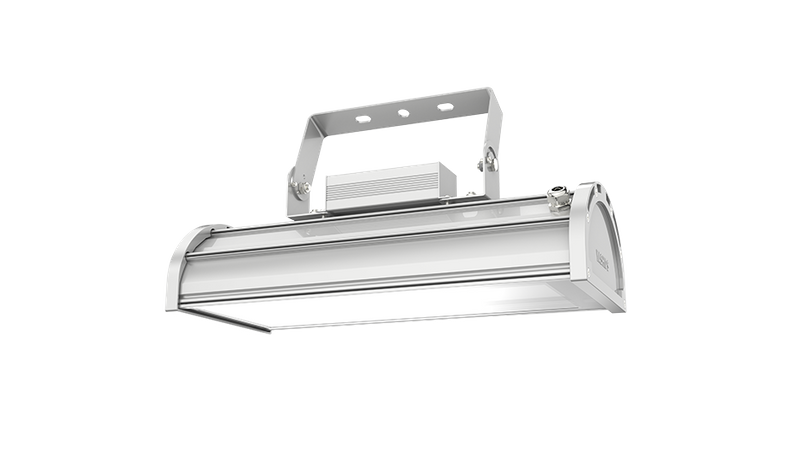

YZDL722 【8W~30W】

Indirect lighting LED tunnel light, anti-glare design, uniform and soft light;
Adopt profile lamp body, die-casting end cover, toughened glass glue fixed;
The lamp bead side light, reflective paper reflects the light structure;
Optional intelligent control DALI, 0-10V dimming, PWM, PLC;
Suitable for subway tunnel.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                    YZDL722
Input Power   Single light:8W~15W             Model:16W~30W

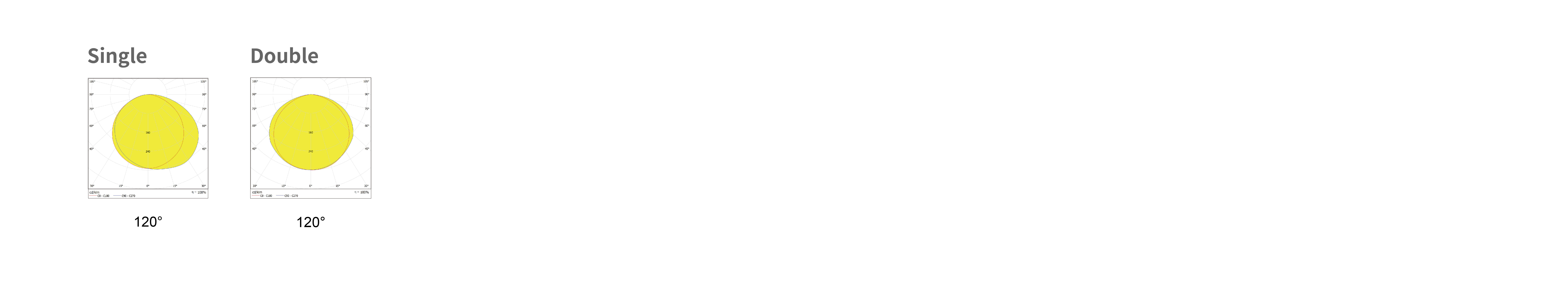

Beam Angle 120°
System Efficiency Single light:45 lm/W             Model:90 lm/W
Color Temp.  3000K / 4000K / 5000K / 5700K
CRI ≥80
Voltage 100-277V
Power Factor 0.95
Housing

Aluminum Alloy
Diffuser  Tempered glass
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional SPD/ NEMA
LED Life Span（L70/B50） >60000 hours


722-02

722-04


YZDL722

Related Products

YXL734-S 【60W~300W】
YXL734-S 【60W~300W】

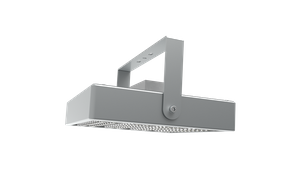

YXL321-S 【35W~300W】
YXL321-S 【35W~300W】

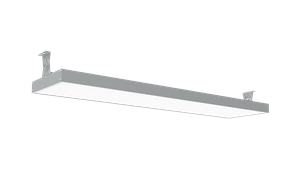

YZDL725 【36W-54W】
YZDL725 【36W-54W】

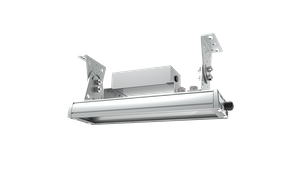

YZDL721 【40W~240W】
