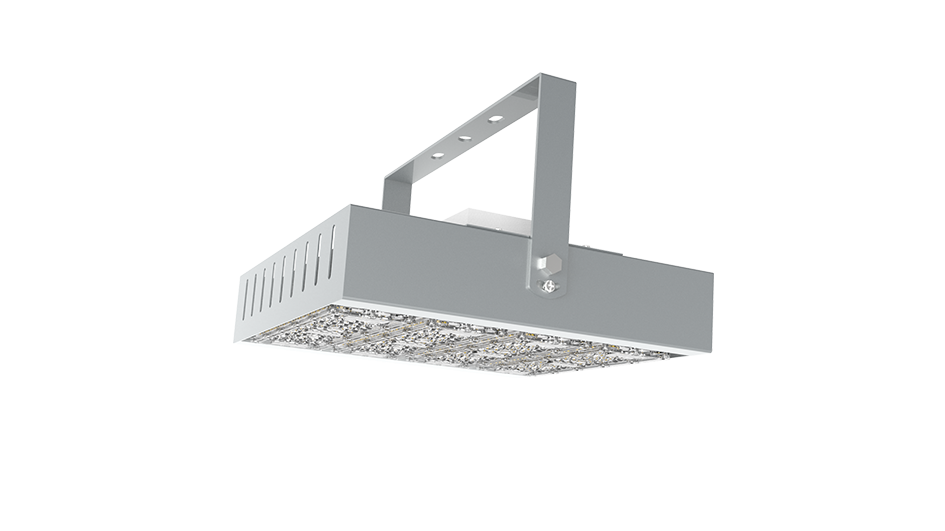

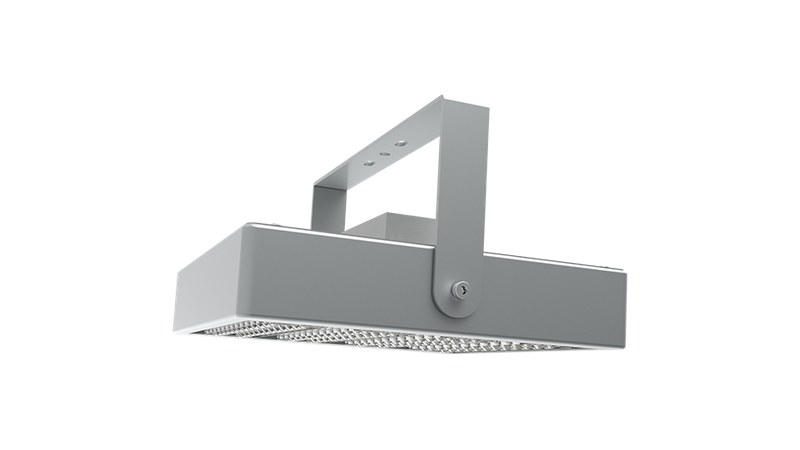

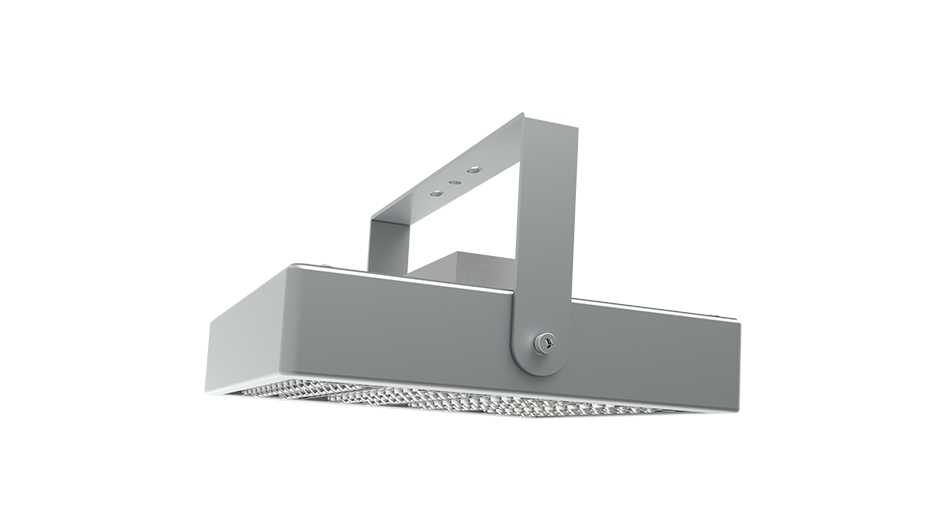

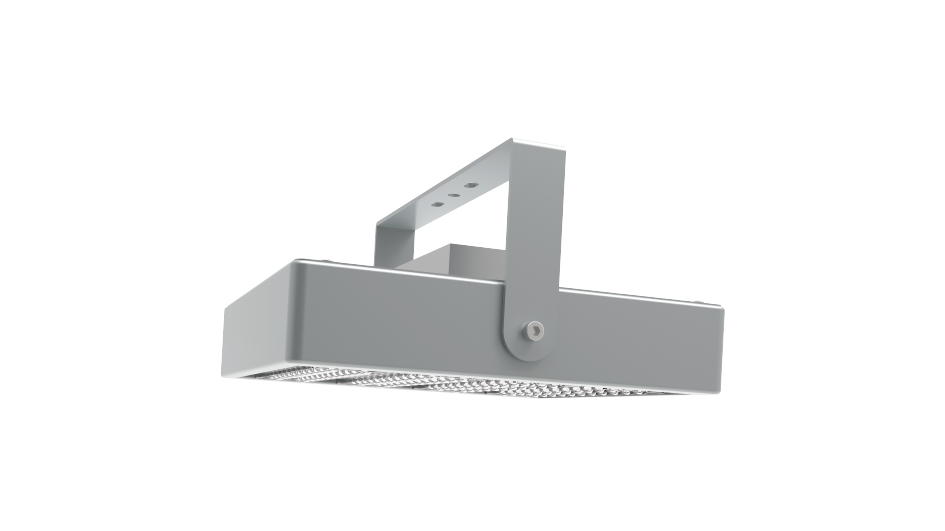

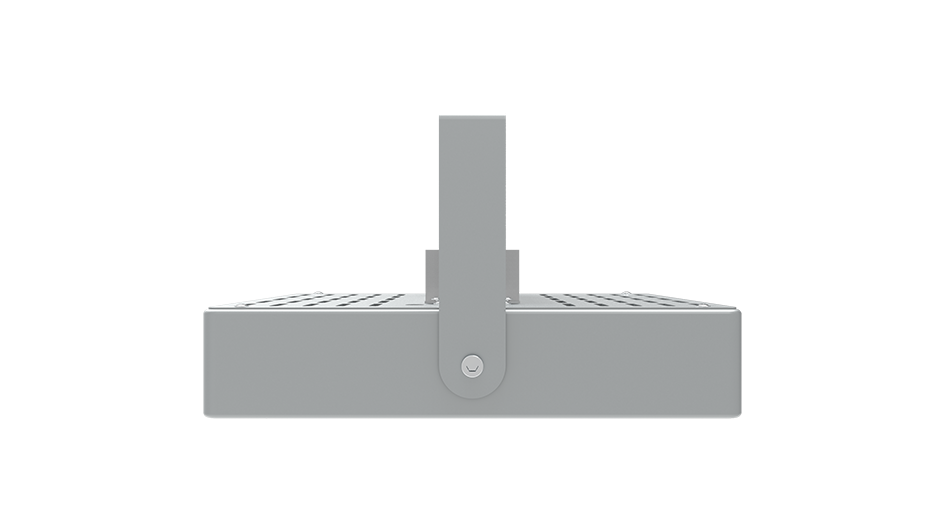

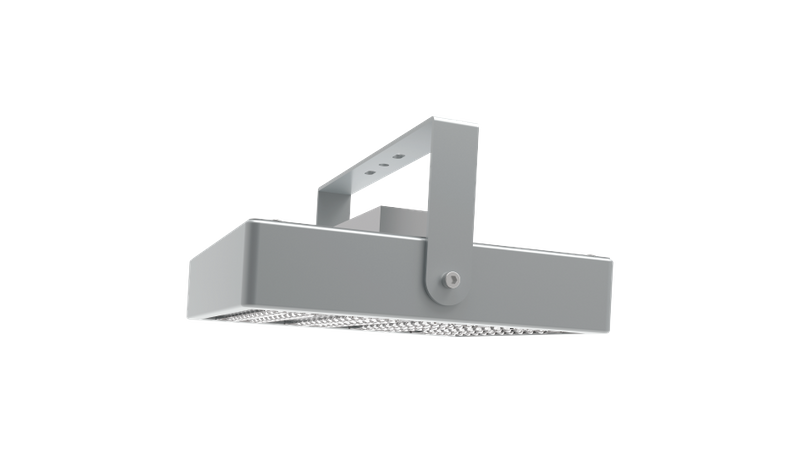

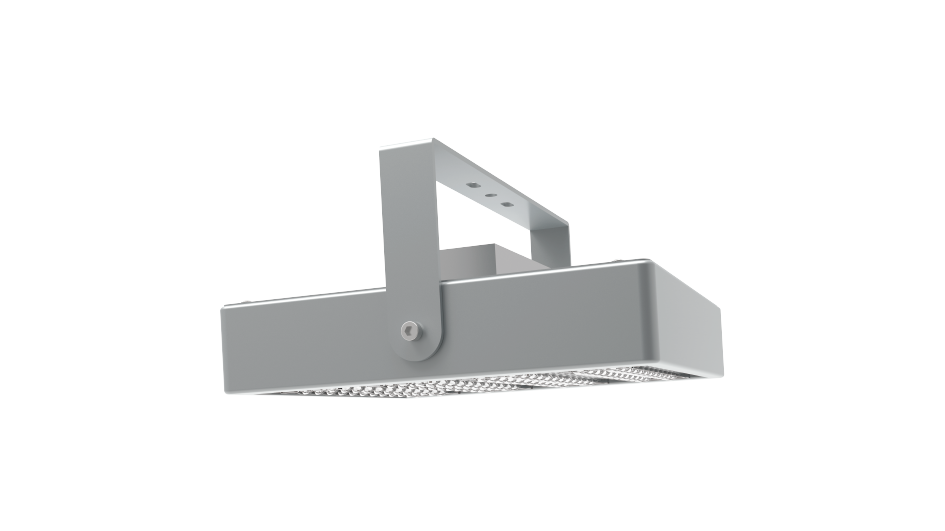

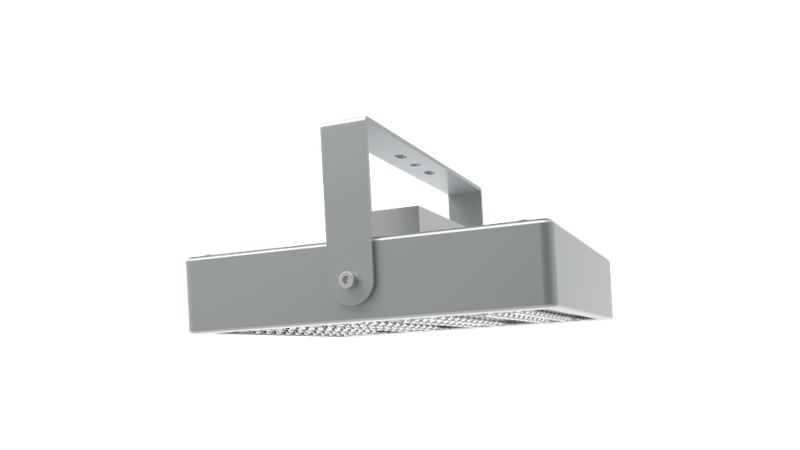

YXL321-S 【35W~300W】

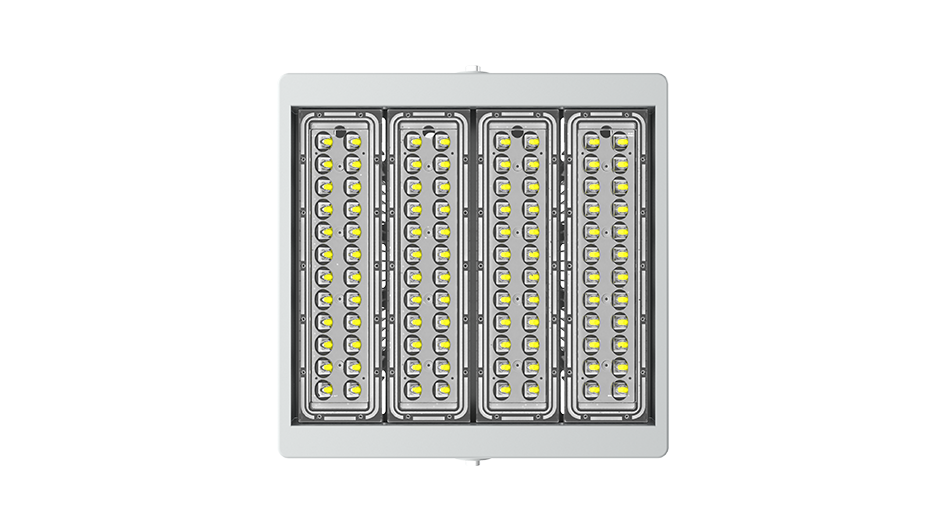

Extruded Aluminum body combined with Aluminum LED Modules, flexible combination for various power.
High transmittance PC diffuser,10% higher system efficiency.

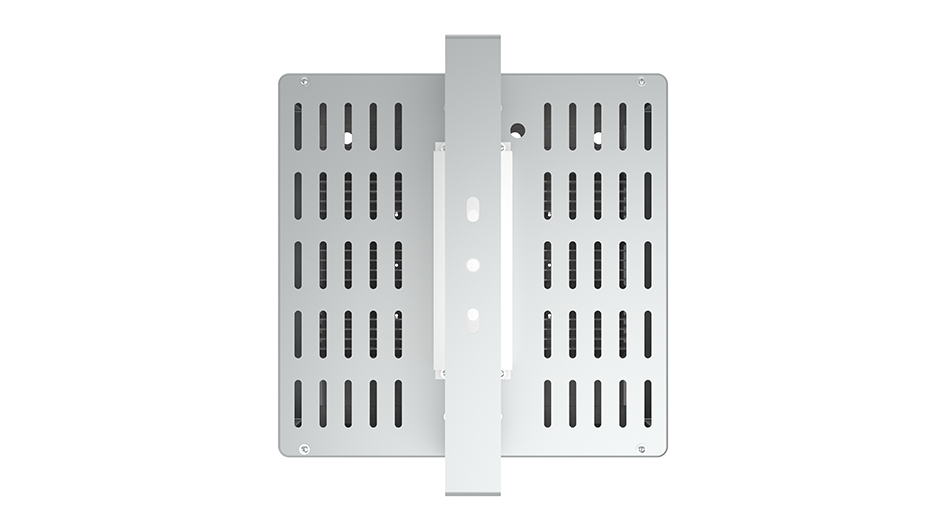

Electrical box separated with optical part,better thermal dissipation.
Modules are connected by pluggable waterproof connector for easy maintenance.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION           YXL321-S

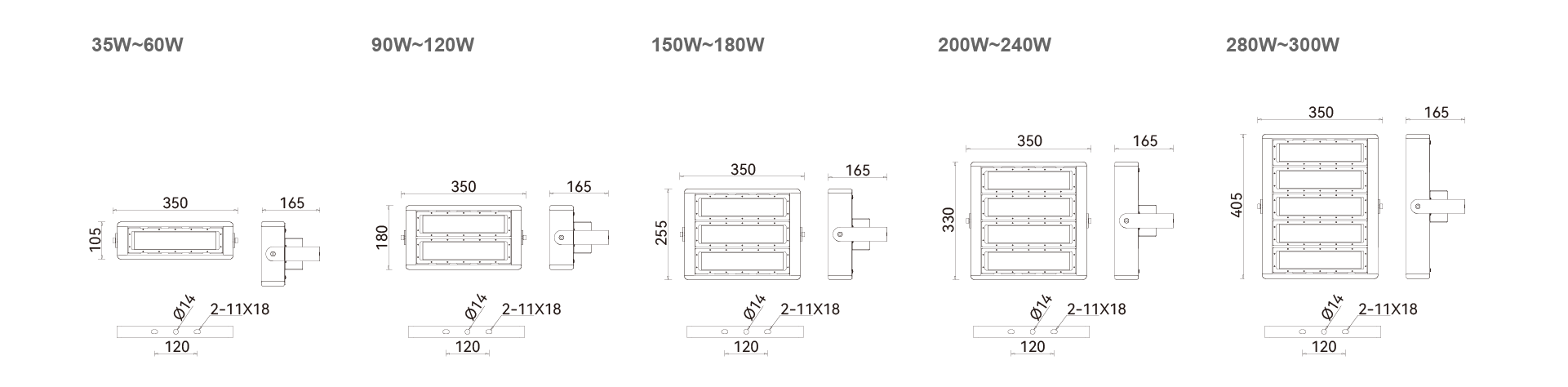

Input Power   35W~60W    90W~120W   150W~180W   200W~240W   280W~300W
Beam Angle    90° / 90°x110°/ 90°x120°
System Efficiency     110-170 lm/W
Color Temp. 3000K / 4000K / 5000K / 5700K
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing

Aluminum Alloy
Diffuser Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional SPD/NEMA
LED Life Span（L70/B50） >60000 hours


321-S-02

隧道-模组-07

YXL321-S
