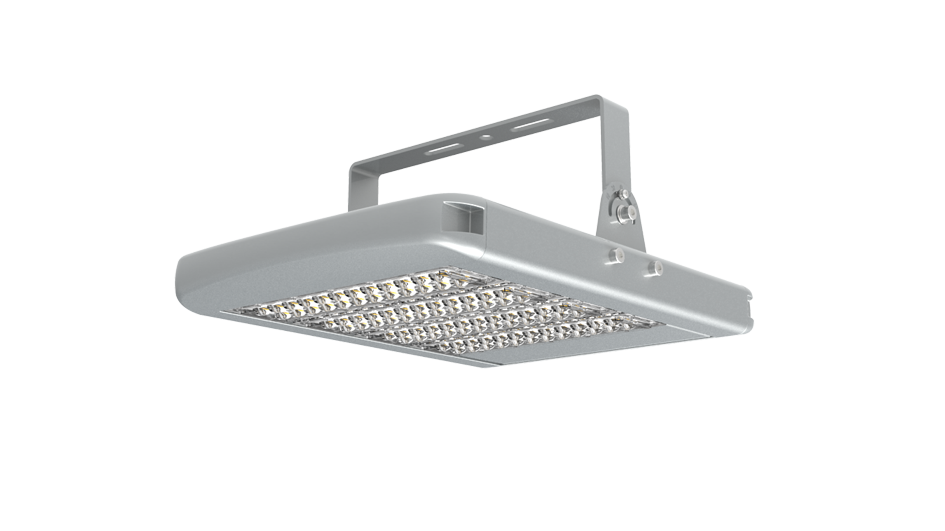

YXL734-S 【60W~300W】

High strength aluminum alloy shell;
Using modular optical lens;
The lamp adopts photoelectric separation design,
vertical heat dissipation technology, prolong the service life;
Optional surge protector;
Suitable for tunnel, garage, factory workshop, etc.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • YXL734-S

  • YASHIPS


SPECIFICATION            YXL734-S
Input Power   60W~120W   150W~180W   200W~240W   280W~300W
Beam Angle 90° / 90°x110°/90°x120°
System Efficiency  110-170 lm/W
Color Temp. 3000K / 4000K / 5000K / 5700K
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Extruded aluminum housing
Diffuser Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional SPD/NEMA
LED Life Span（L70/B50） >60000 hours


734-S-02

隧道-模组-07


YXL734-S
