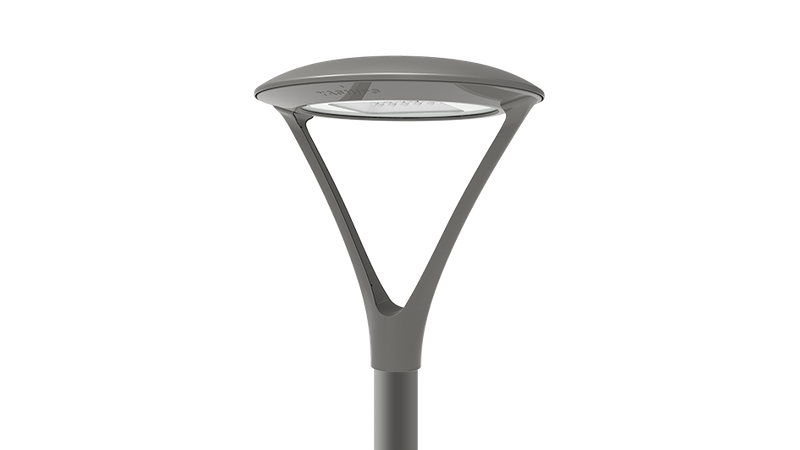

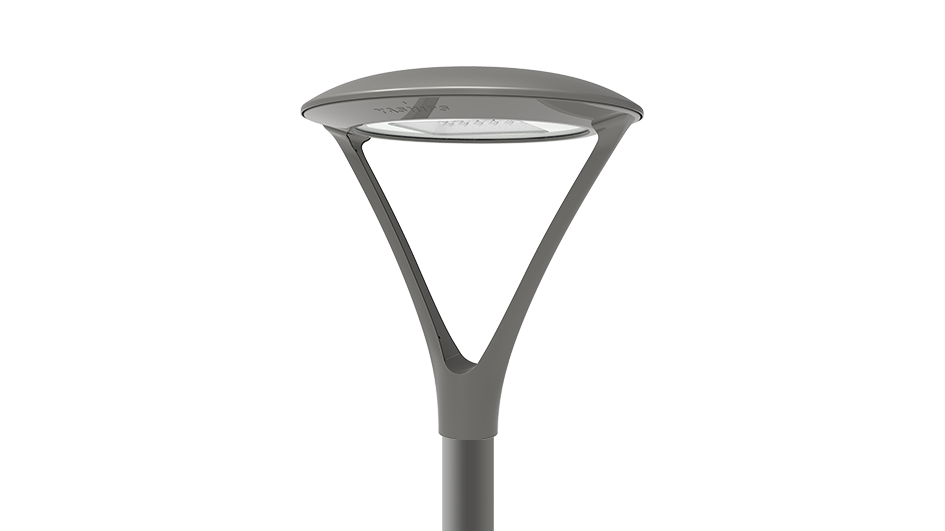

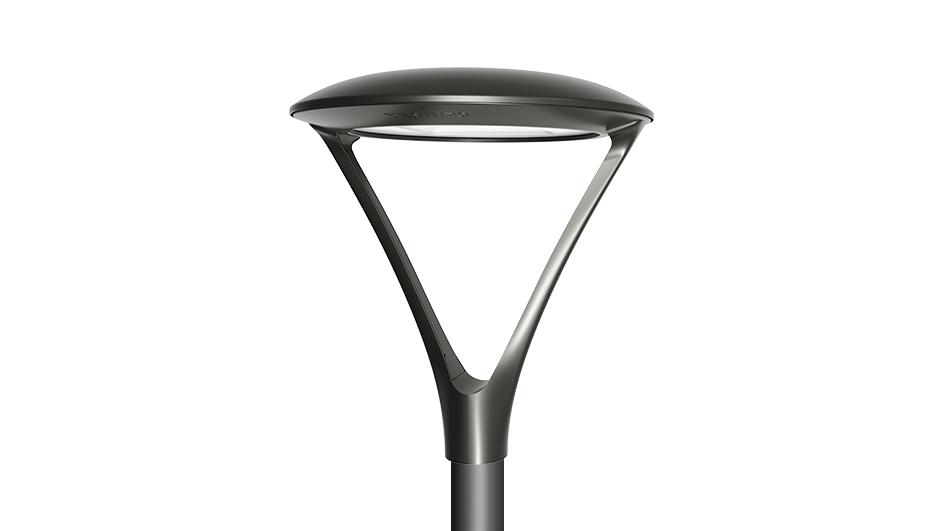

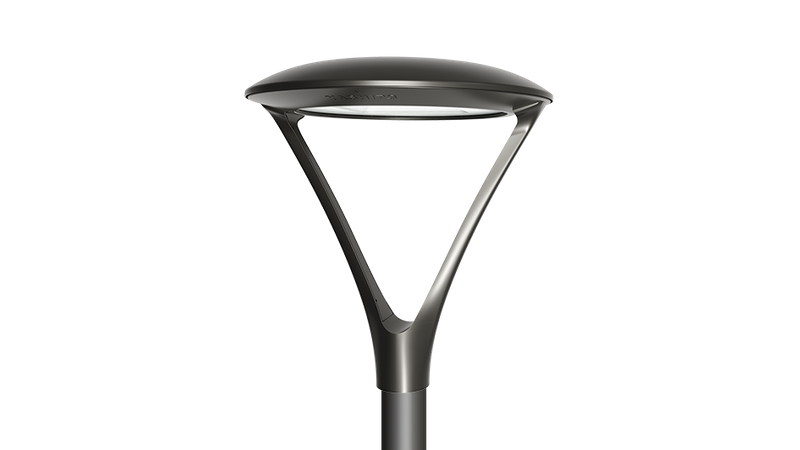

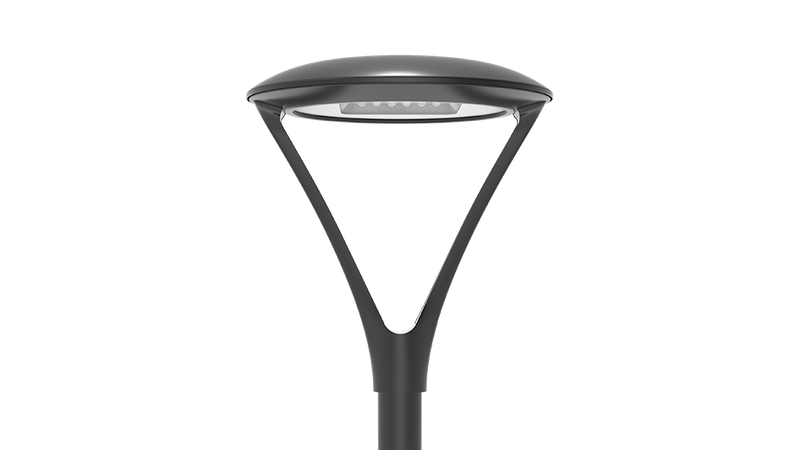

YXL861-P 【30W~120W】

High-pressure die-cast aluminum lamp body, corrosion & shock resistant.
Φ200mm circular lens ,TYPE IV/TYPE V available.
Self-clean design.
Diffuser: Sand-blasted glass at request.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
SPECIFICATION                    YXL861-P
Input Power  30W~120W
Beam Angle  TYPE IV/TYPE V
Color Temp. 3000K/4000K/5000K/5700K
System Efficiency 110-130 lm/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Alloy
Diffuser Tempered glass/Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional SPD/ Photocell/ Motion sensor/ NEMA
LED Life Span（L70/B50） >60000 hours

861-P-05

861-P-03

YXL861-P
