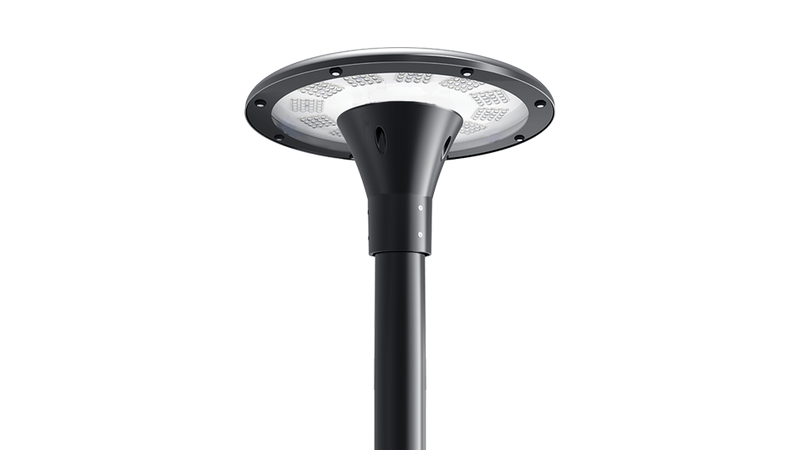

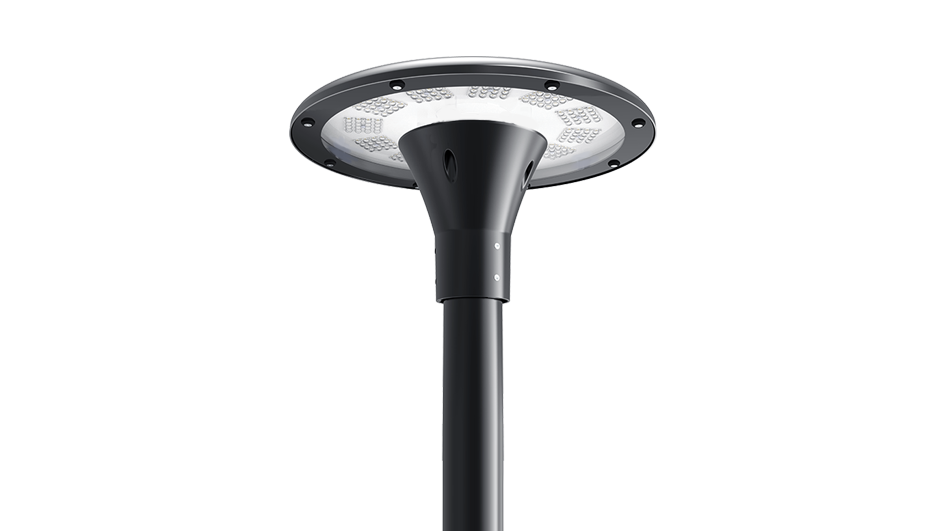

YZTL904 【30W~100W】

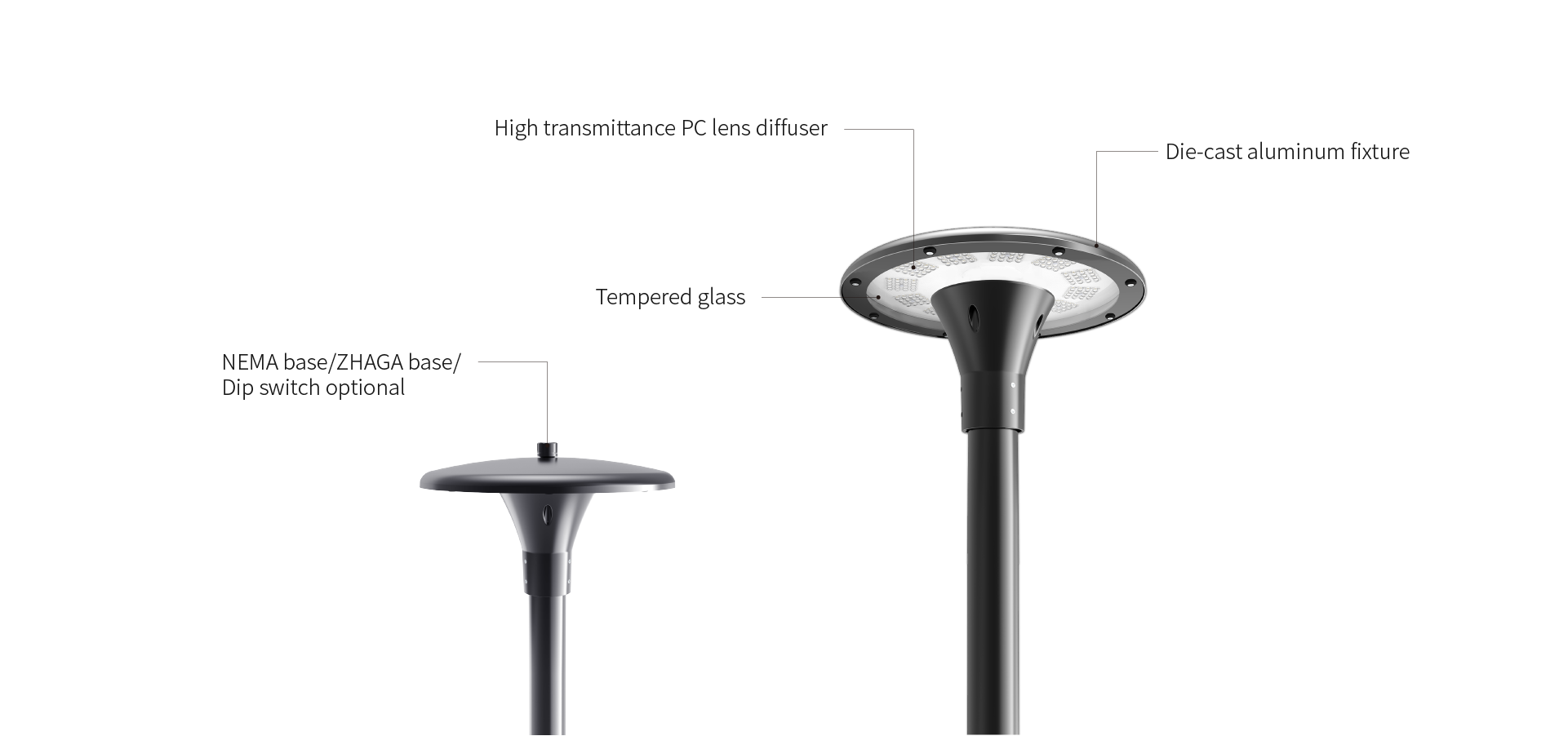

Main body is made of Die-casting aluminum alloy.
The diffuser is a anti-UV tempered glass for high efficiency and vandal resistance.
Easy access to LED and driver,with 1-10V,Dali,PWM dimmable options.
Tamper proof fixings for increased vandal resistance.
Anti-UV electrostatic powder spraying.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                    YZTL904
Input Power  30W~100W
Beam Angle

TYPE V
Color Temp. 3000K/4000K/5000K/5700K
System Efficiency 130 lm/W
CRI ≥80
Voltage 100-277V
Power Factor 0.9
Housing Aluminum  Die-casting
Diffuser

Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional 1-10V / Dali / PWM
LED Life Span（L70/B50）

>60000 hours

904-02



904-03

YZTL904
