YZDL742 【30W~240W】

Die-casting Aluminum body combined with Aluminum LED Modules,flexible combination.
The lamp adopts photoelectric separation design, vertical cooling technology, and prolongs the service life.
Module using plug-in waterproof joint connection, easy to replace the module.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                    YZDL742
Input Power  30W~60W     90W~240W
Beam Angle

TYPE II / III / IV
Color Temp. 3000K/4000K/5000K/5700K
System Efficiency 110-170 lm/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum  Die-casting
Diffuser

Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional SPD/ Photocell/ NEMA
LED Life Span（L70/B50） >60000 hours

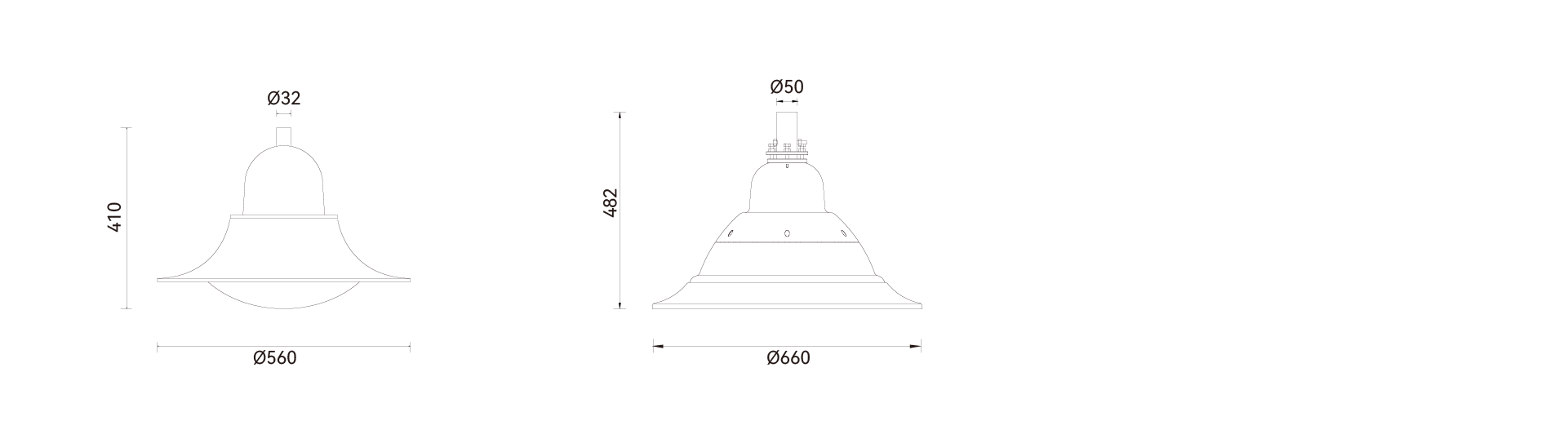

742-02

742-03

YZDL742
