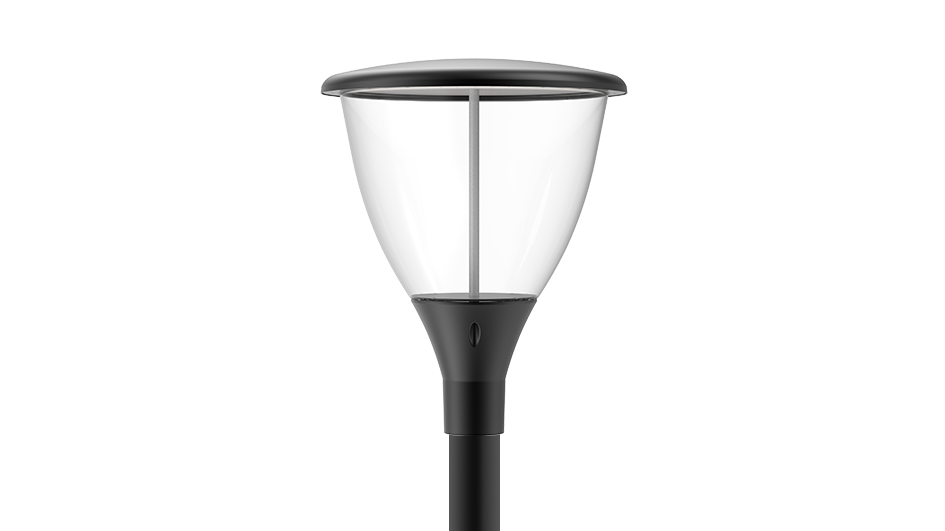

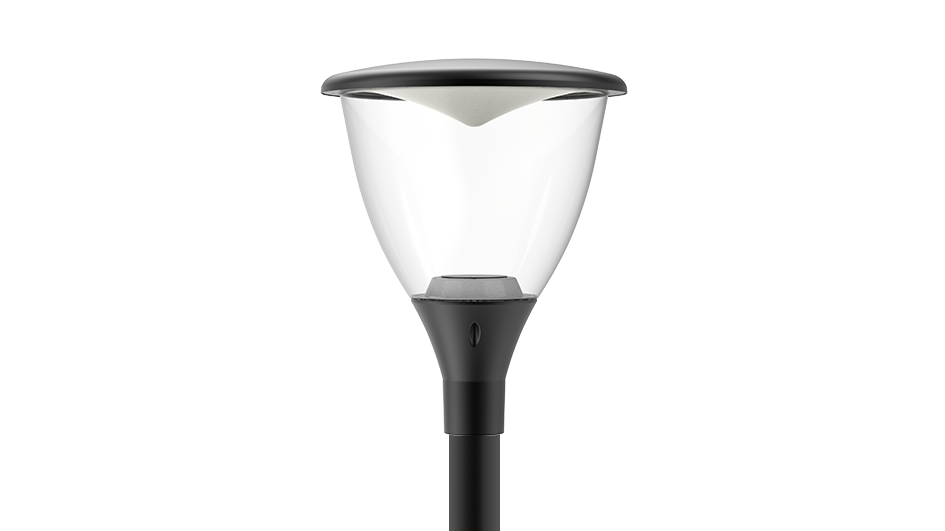

YZTL878 【30W~100W】

Main body is made of Die-casting aluminum alloy.
The diffuser is a opal anti-UV injection polycarbonate for high efficiency and vandal resistance.
Easy access to LED and driver，with 1-10V,Dali,PWM dimmable options.
Tamper proof fixings for increased vandal resistance.
Anti-UV electrostatic powder spraying.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                    YZTL878
Input Power  30W~100W
Beam Angle

TYPE V
Color Temp. 3000K/4000K/5000K/5700K
System Efficiency 145 lm/W
CRI ≥80
Voltage 100-277V
Power Factor 0.9
Housing Aluminum  Die-casting
Diffuser

Prismatic cover
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional 1-10V / Dali / PWM
LED Life Span（L70/B50） >60000 hours



878-02

878-03



YZTL878

Related Products

YZTL912 【30W~60W】
YZTL912 【30W~60W】
YZTL911 【30W~50W】
YZTL911 【30W~50W】
YZTL910 【30W~120W】
YZTL910 【30W~120W】
YZTL909 【30W~60W】
YZTL909 【30W~60W】
YZDL742 【30W~240W】
YZDL742 【30W~240W】

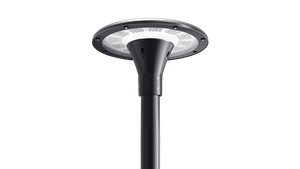

YZTL904 【30W~100W】
