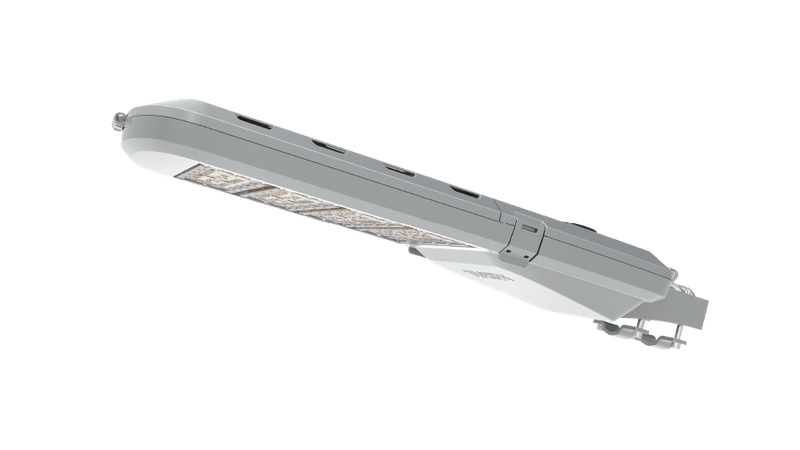

YZDL734 Ⅱ【 30W~280W】

Die-cast clamp type
High-power modular street lamps, with high-strength die-cast aluminum alloy housing.
Toolless access for quick & easy maintenance.

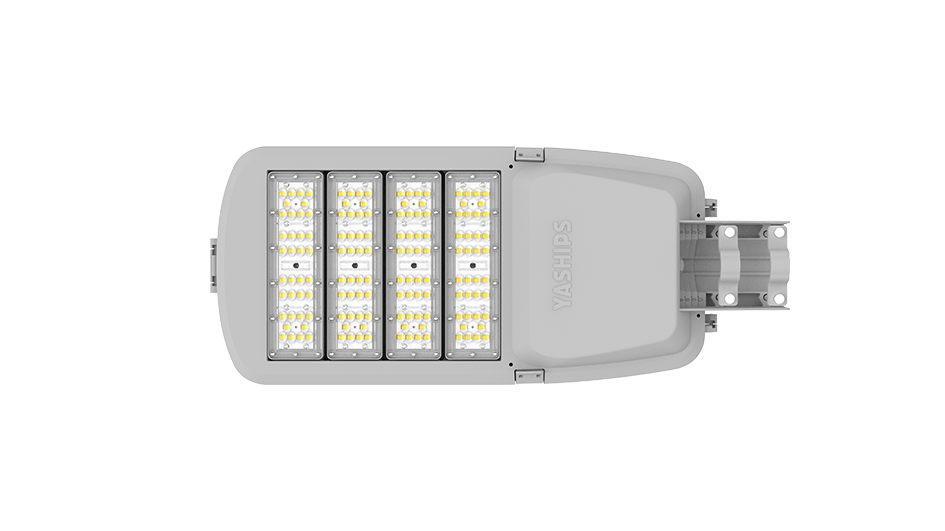

Modular optical lenses to enhance versatility.
Self clean designed cover,automatic rainwater cleaning to avoid dust and leaves accumulation.
Availability:


SPECIFICATION                    YZDL734  Ⅱ
Input Power  30W~120W    150W~280W
Beam Angle

TYPE I/TYPE II/TYPE III/TYPE IV
Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 120-180LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional

SPD/ Photocell/ Motion sensor/ NEMA/ Disconnector switch
LED Life Span（L70/B50） 100000 hours


734 II-02

路灯-模组-01

YZDL734 Ⅱ
