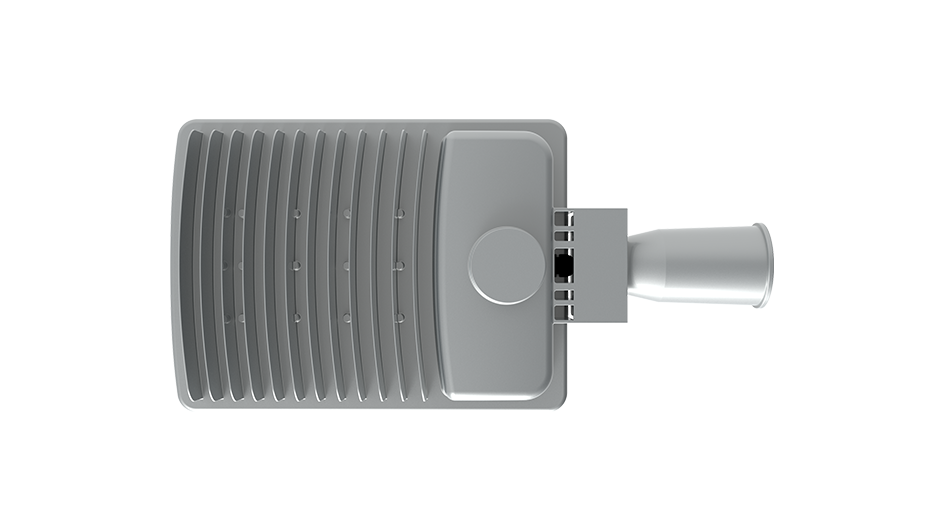

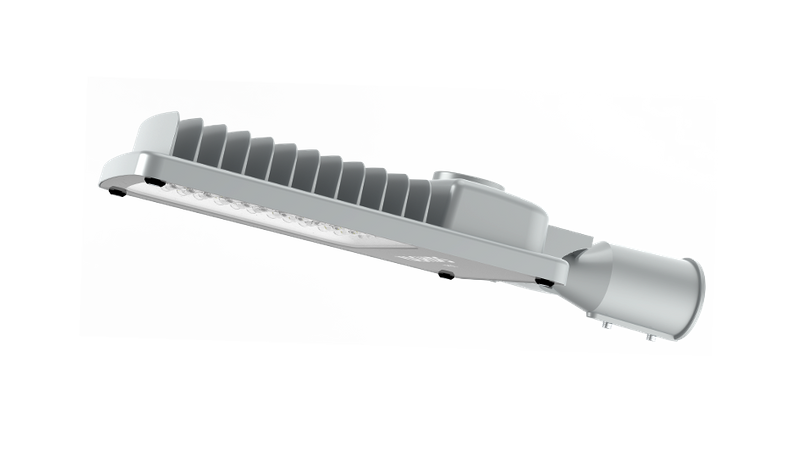

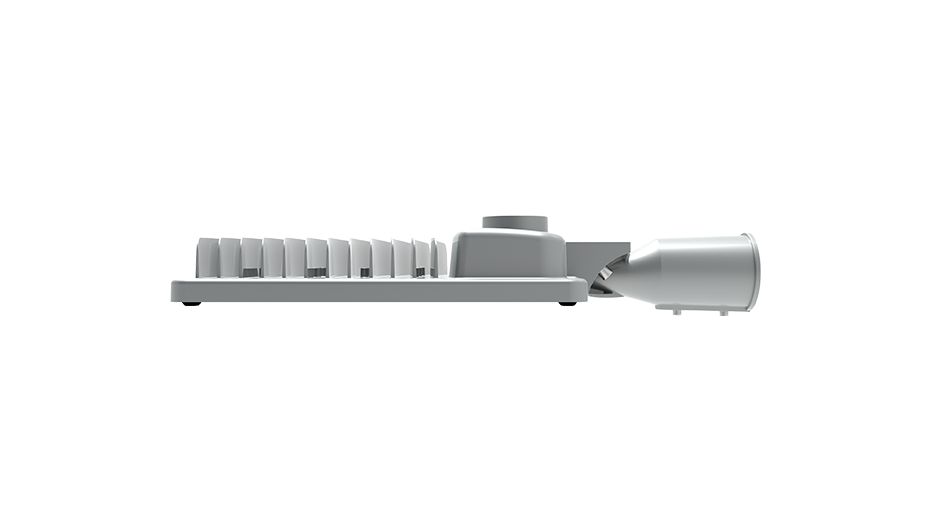

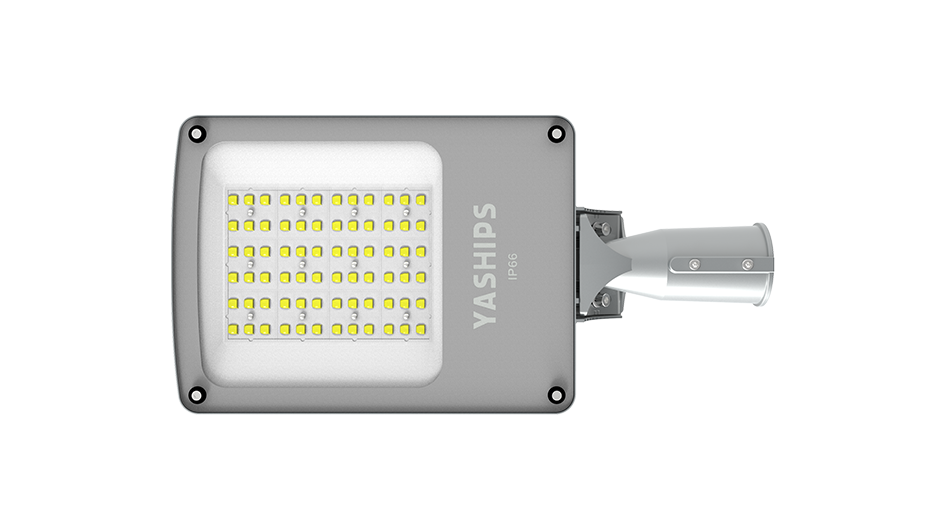

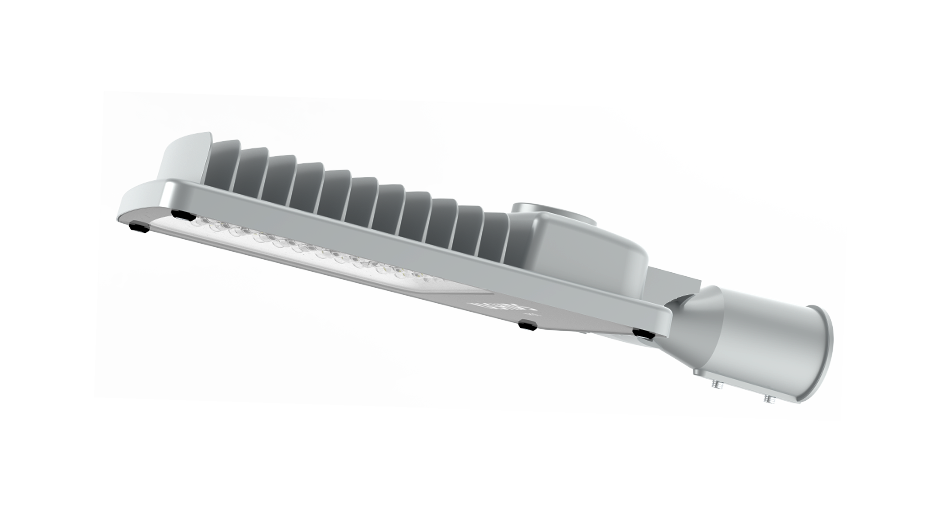

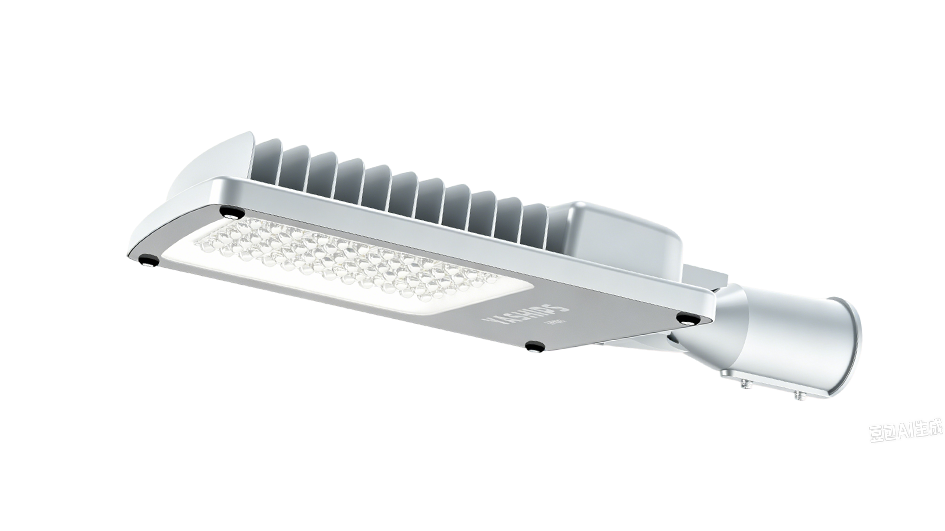

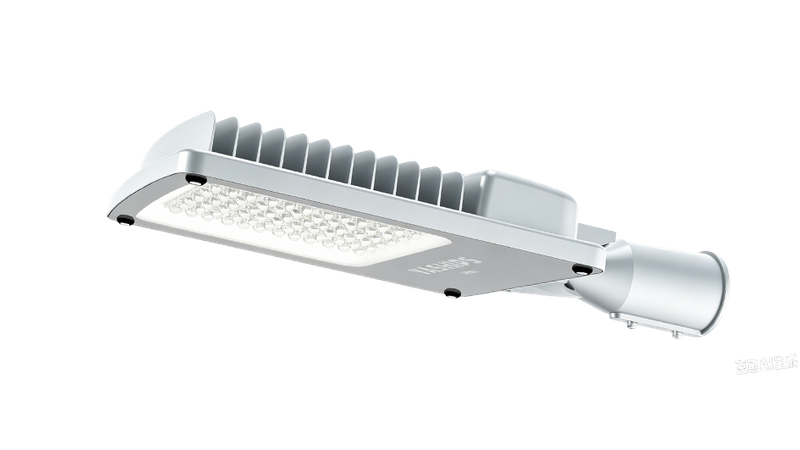

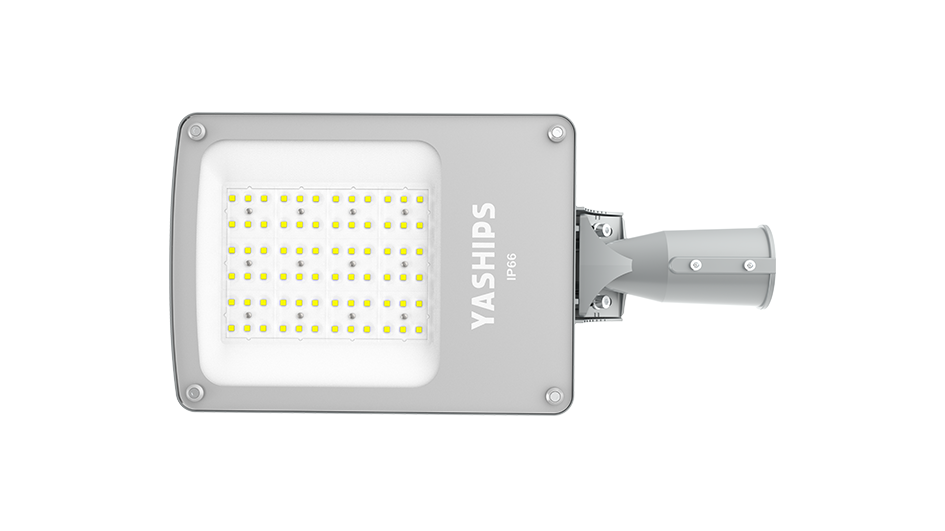

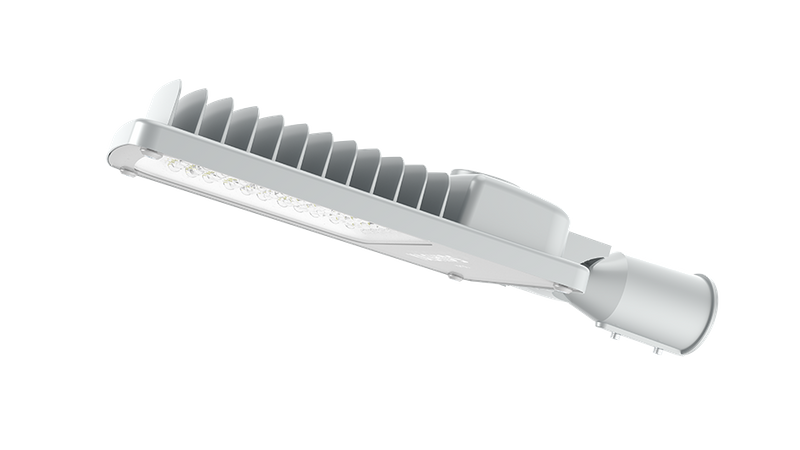

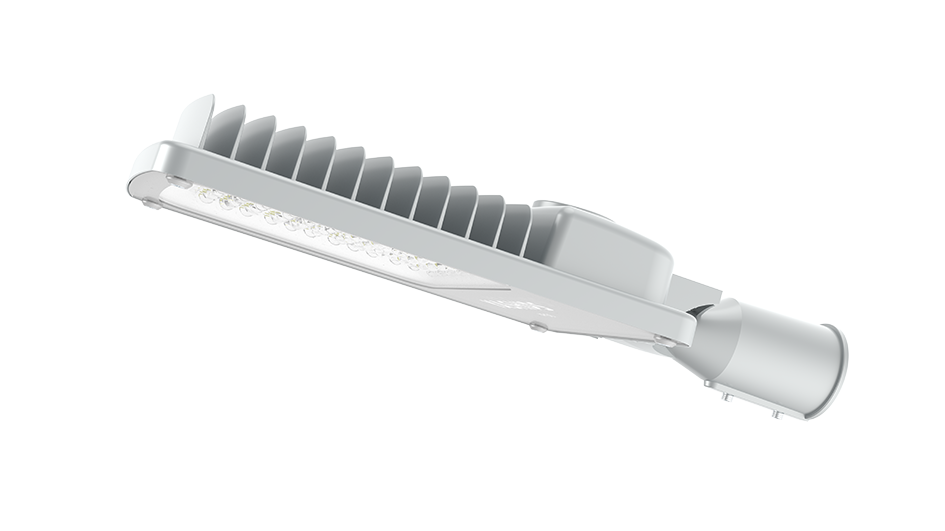

YZDL757【 30W~200W】


Die-cast aluminum fixture.
Height 15m Wind speed: V=57m/s(205Km/h).
High performance transmittance tempered glass+PC lens.
Installation: Horizontal/Vertical,angle adjustable.
Street,secondary roads,parks,city squares,districts,etc.
Availability:


SPECIFICATION YZDL757
Input Power  30W~50W         60W~100W         120W~150W         180W~200W
Beam Angle

TYPE I/TYPE II/TYPE III/TYPE IV
Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 120-170LM/W
CRI >70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Tempered glass+PC lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08

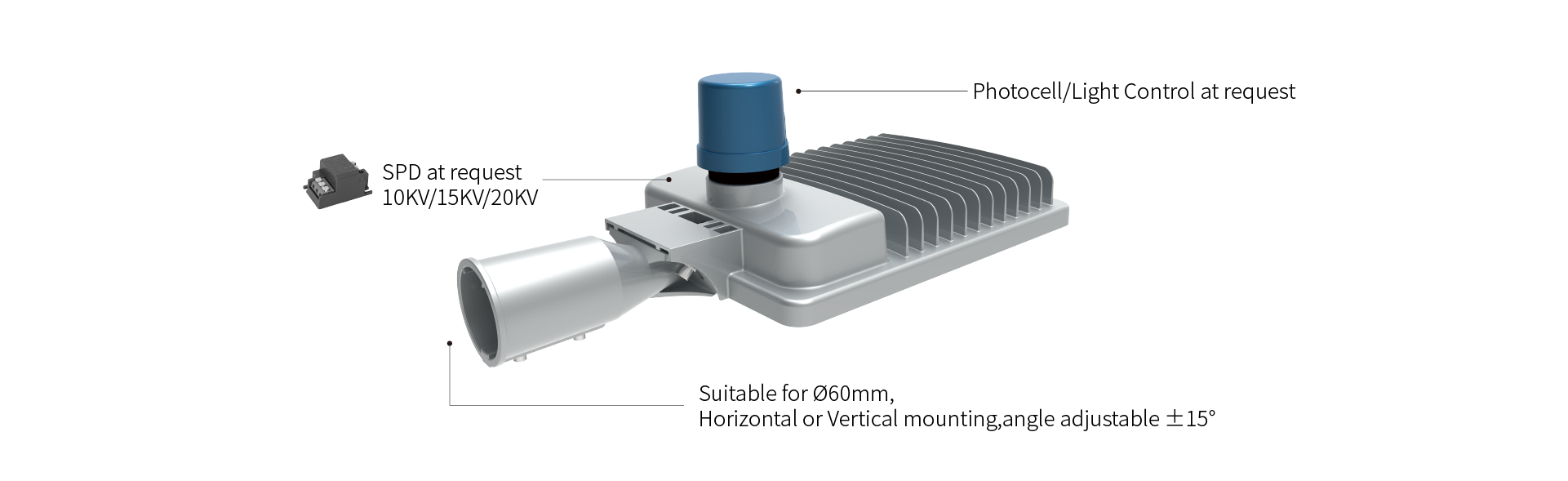

Optional

SPD/ Photocell/ Infrared sensor/ Light control
LED Life Span（L70/B50） 100000 hours

757-02757-03

YZDL757
