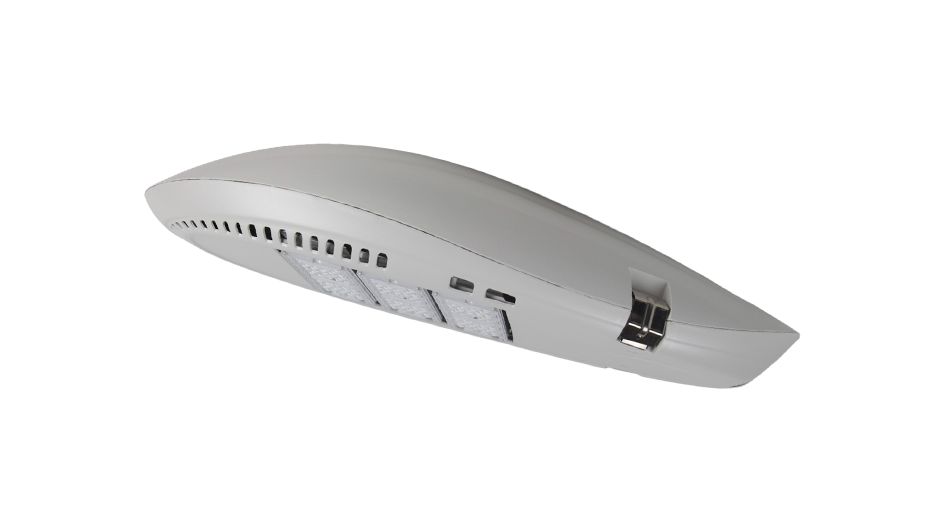

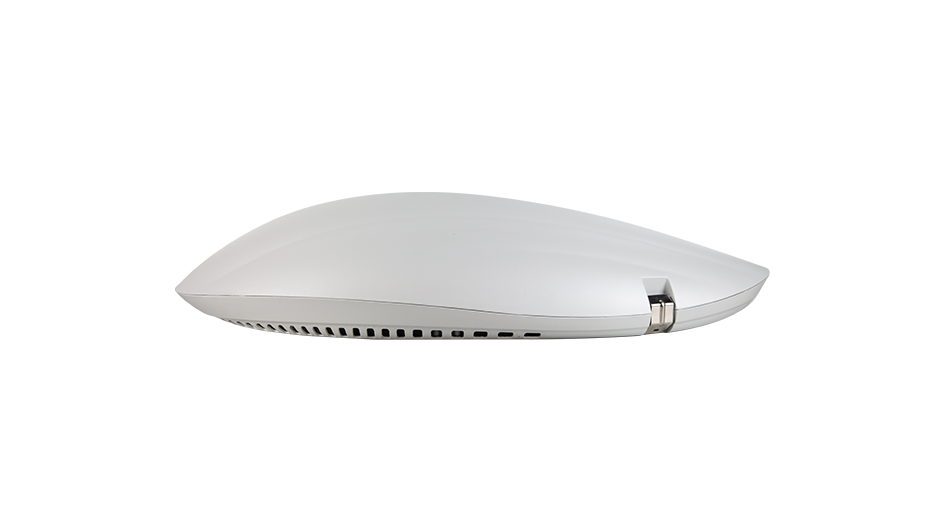

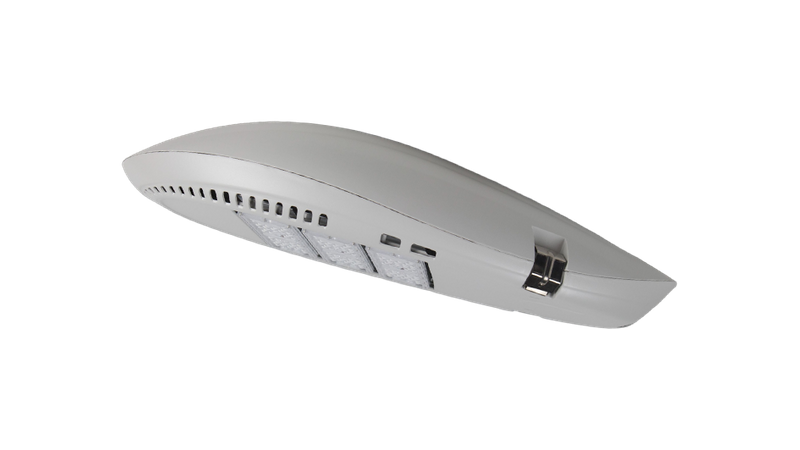

YZDL770 【40W~240W】

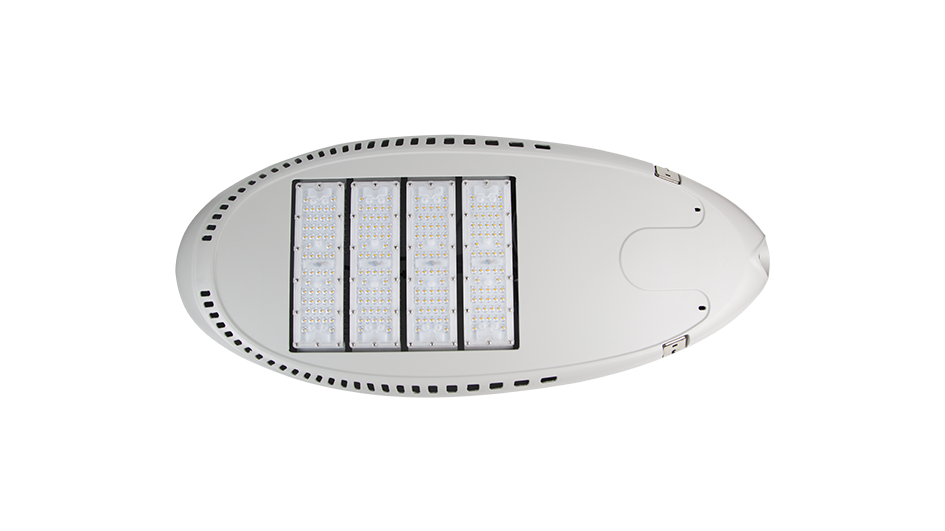

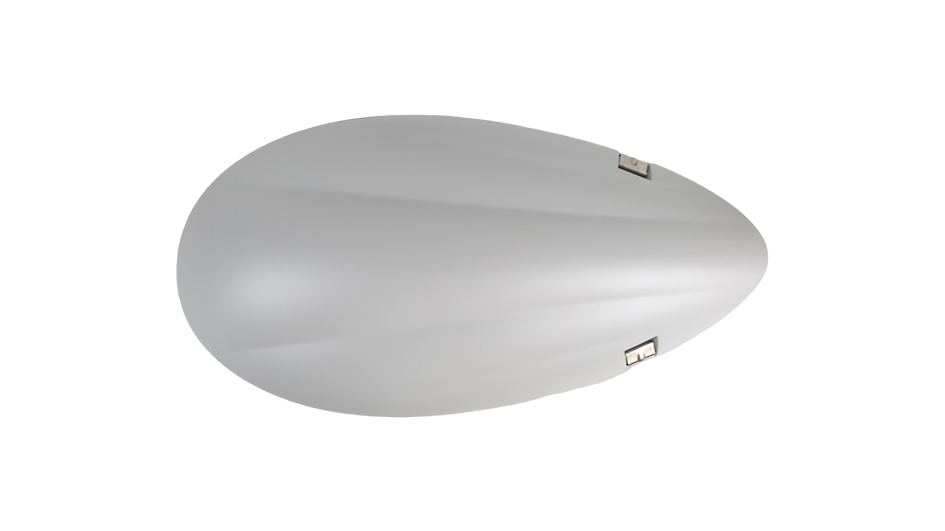

Use integral die-cast lamp shell, retain the traditional lamp shape;
The light source adopts the national standard module combination, which meets the needs of domestic engineering standards;
Can be equipped with surge protector, anti-fall device, single light controller and other intelligent control port;

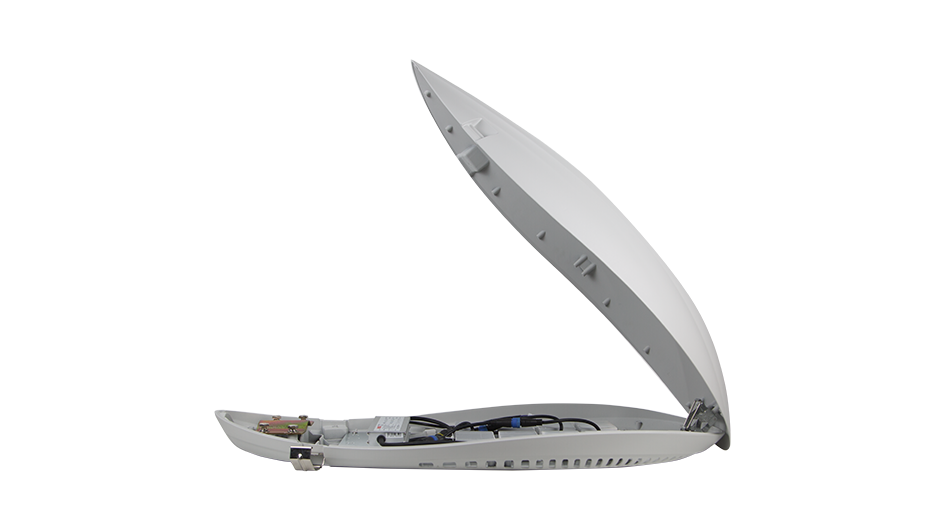

Tool free open structure, easy maintenance.
Availability:


SPECIFICATION                  YZDL770
Input Power   40W~60W              100W~120W              150W~180W              200W~240W

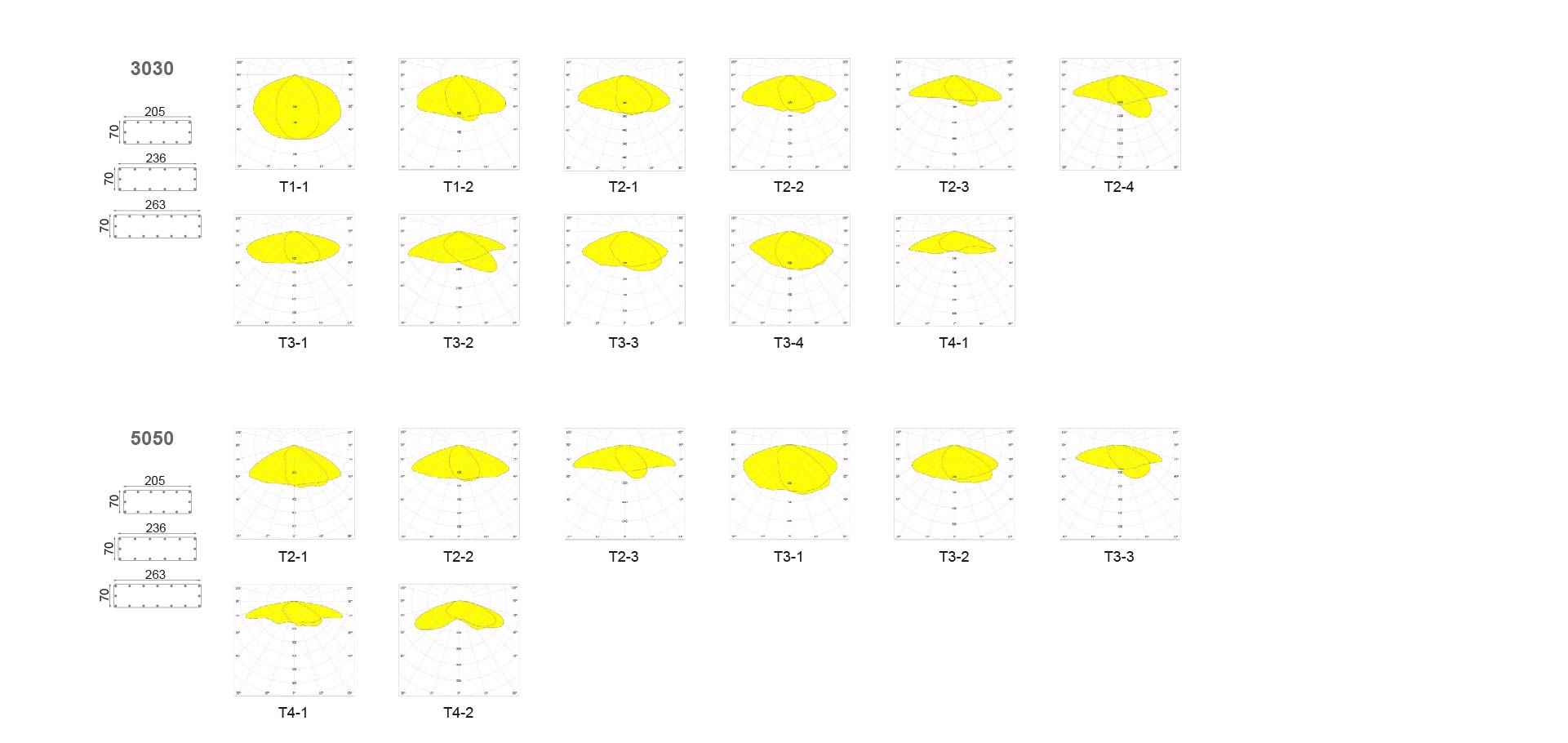

Beam Angle

TYPE I / TYPE II / TYPE III / TYPE IV
Color Temp.               3000K / 4000K / 5000K / 5700K
System Efficiency 120-180LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser  Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional

SPD/Photocell/Light control/Infrared sensor
LED Life Span（L70/B50） 100000 hours

770-02736 III-03


YZDL770
