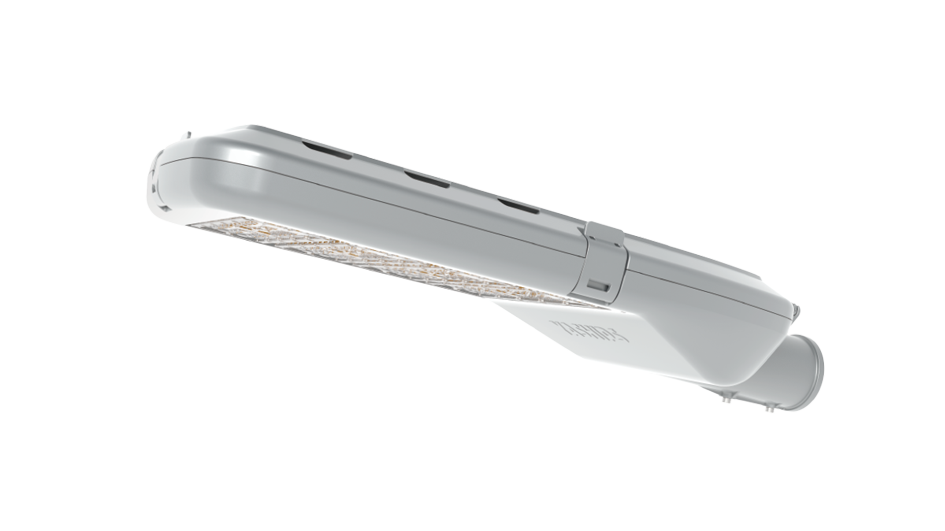

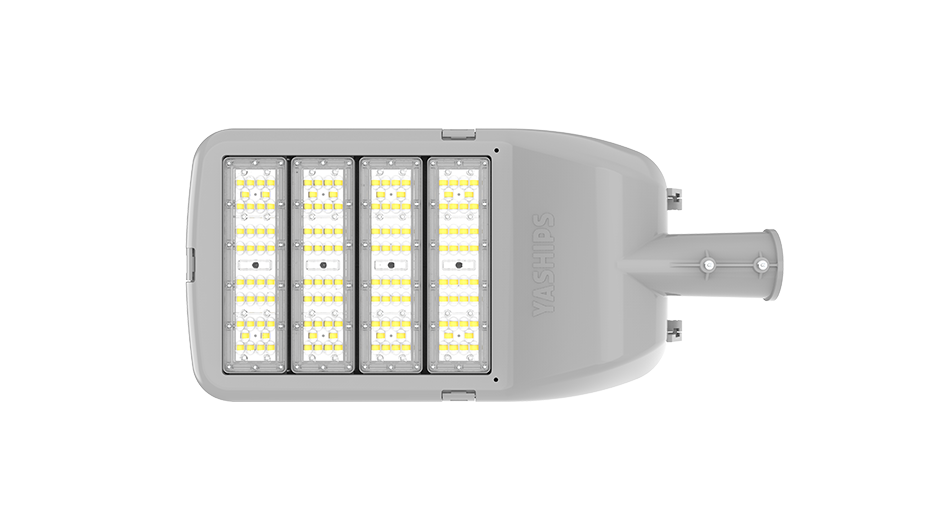

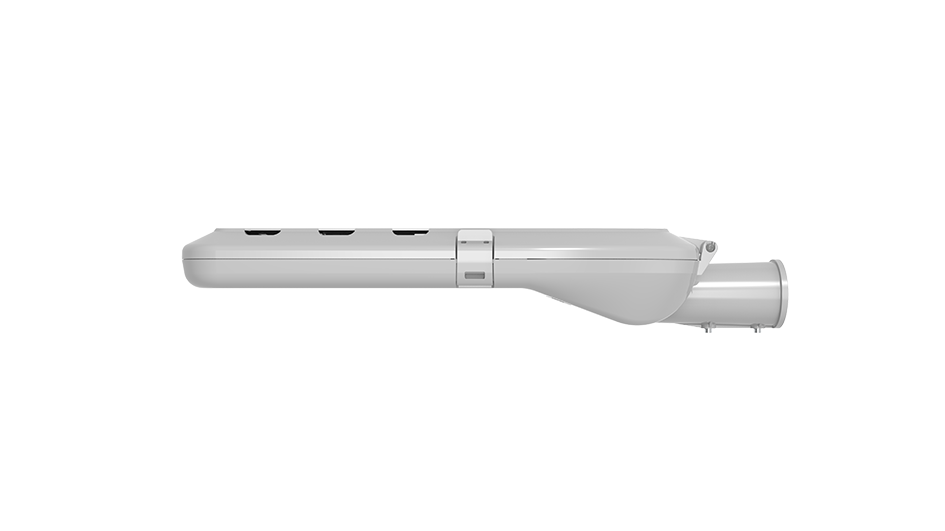

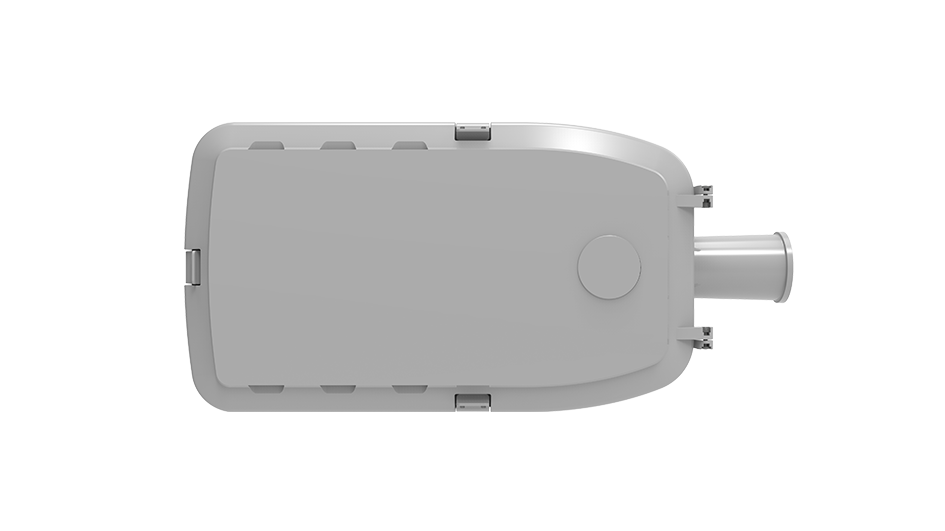

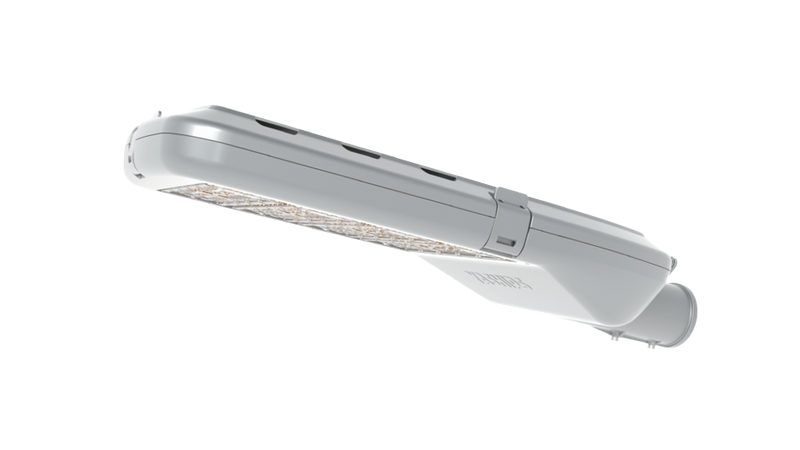

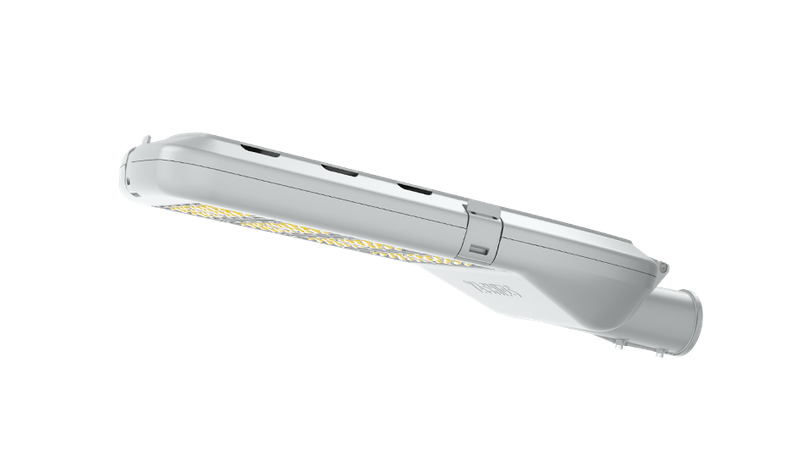

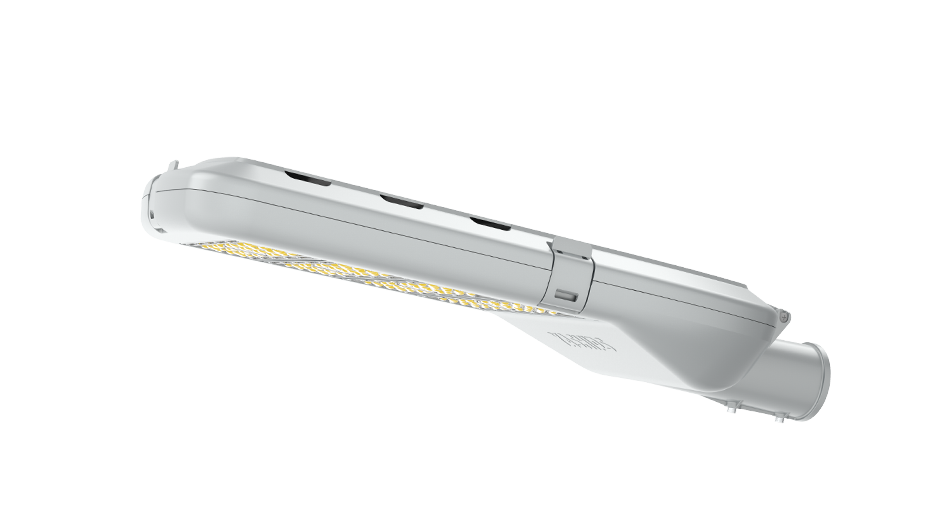

YZDL736 Ⅲ【 30W~280W】

Integral die-casting type
Die-casting Aluminum body combined with Aluminum LED Modules
flexible combination.
Excellent performance of wind speed withstand 150Km/h.

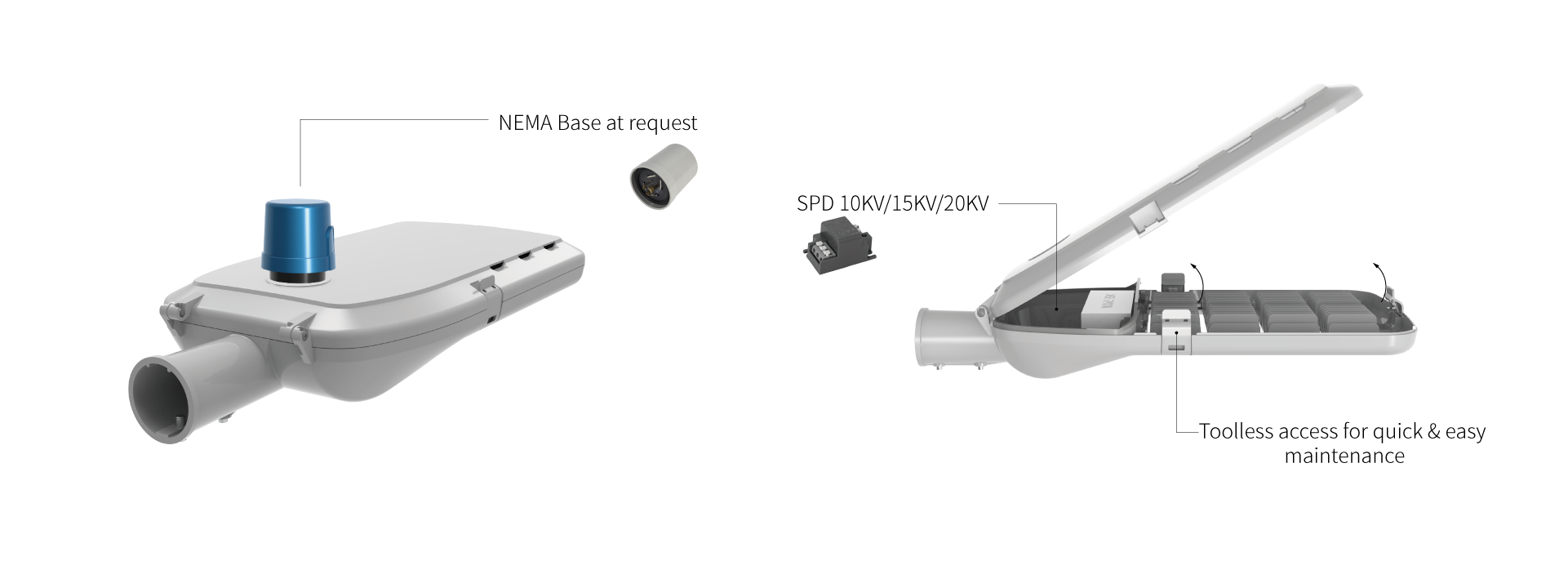

Toolless access for quick & easy maintenance.
High transmittance PC diffuser,10% higher system efficiency.
Street,secondary roads,parks,city squares,districts,etc.
Availability:


SPECIFICATION                    YZDL736  Ⅲ
Input Power  30W~120W    150W~280W
Beam Angle

TYPE I/TYPE II/TYPE III/TYPE IV
Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 120-180LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional

SPD/ Photocell/ Motion sensor/ NEMA
LED Life Span（L70/B50） 100000 hours

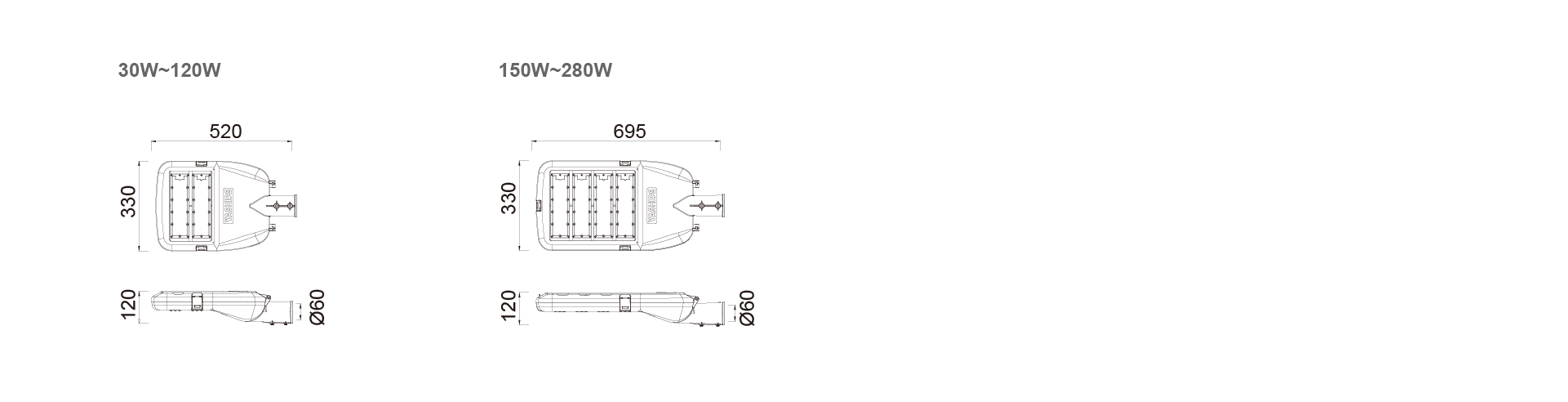

736 III-02

路灯-模组-01

YZDL736 Ⅲ

Related Products

YZDL770 【40W~240W】
YZDL770 【40W~240W】
YZDL734 Ⅱ【 30W~280W】
YZDL734 Ⅱ【 30W~280W】
YZDL736【 30W~280W】
YZDL736 Ⅱ【 30W~280W】
YZDL756 【40W~240W】
YZDL756 【40W~240W】

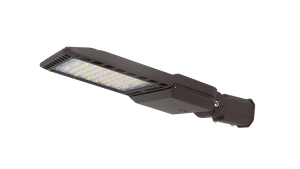

YZDL735 【100W~300W】
