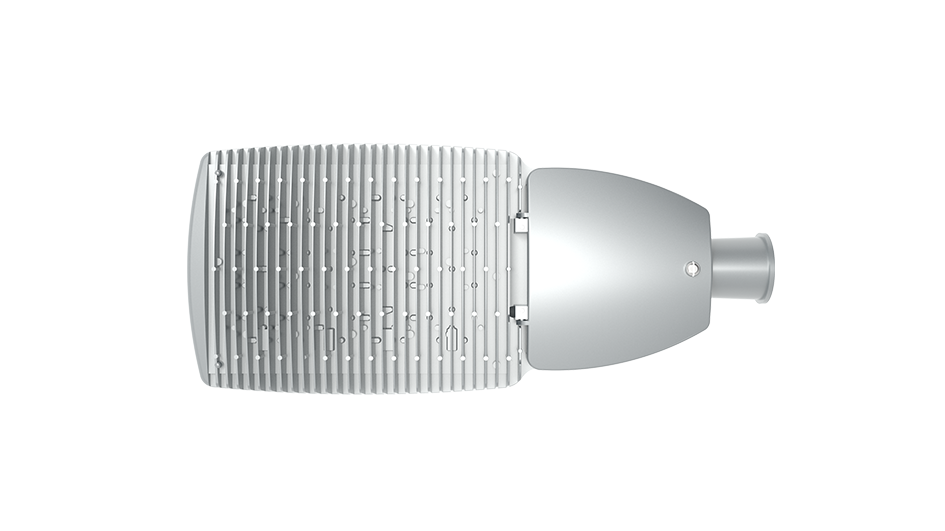

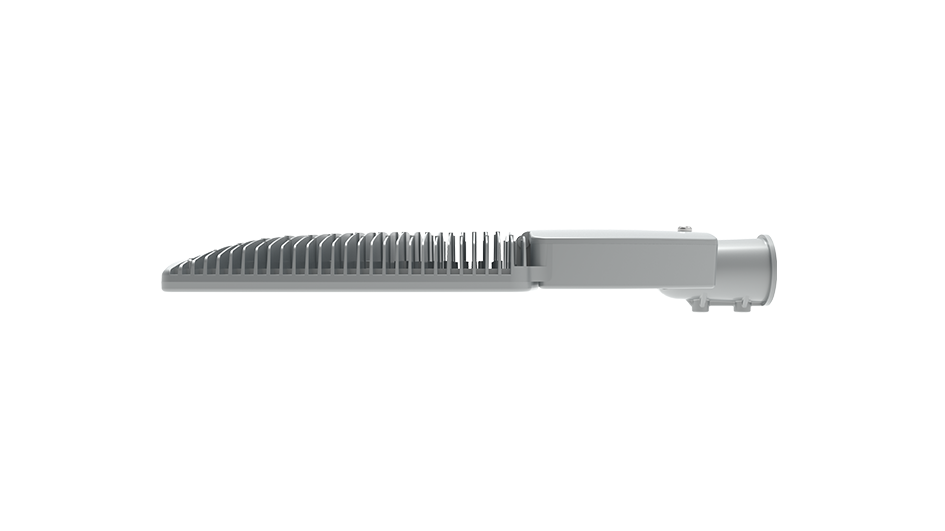

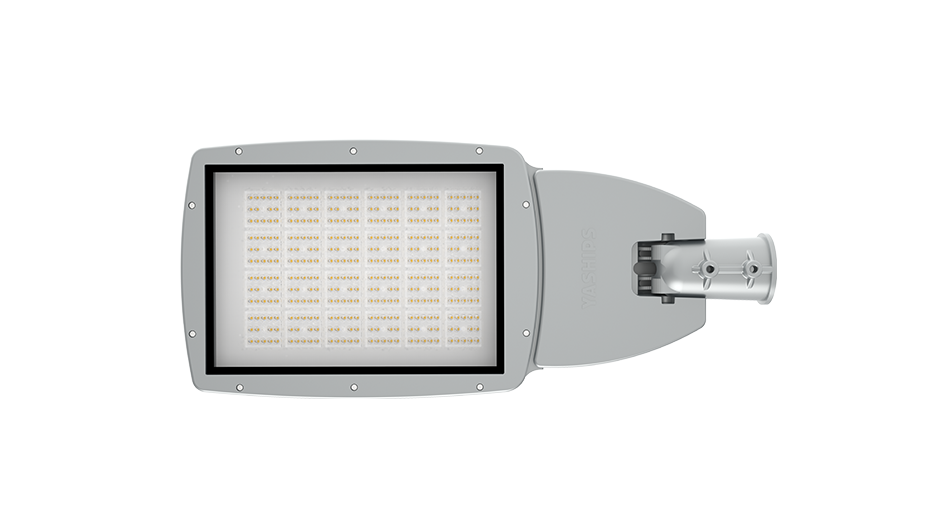

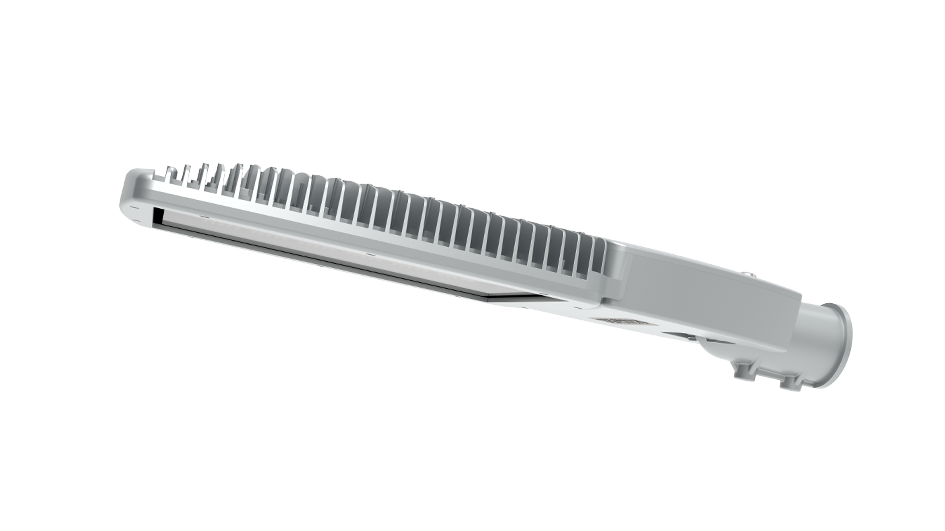

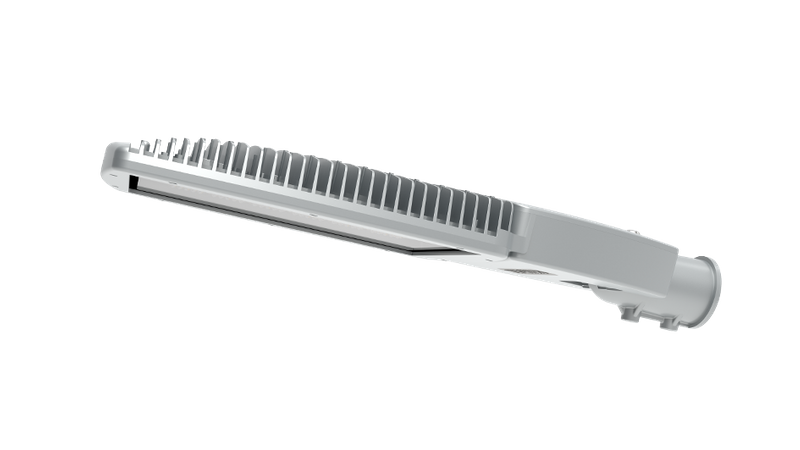

YZDL732 【40W~240W】

High pressure die-casting aluminum casting,with the capability
 of impact resistent and corrosion resistent.
 Seperated light source and driver ,which is good for heat-release.
Integrated lens for uniform curve and high light efficiency.
Availability:


SPECIFICATION                    YZDL732
Input Power   40W~60W   100W~150W   180W~240W
Beam Angle

TYPE I / TYPE II / TYPE III / TYPE IV
Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 110-150LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminium Die-casting
Diffuser Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional

SPD/ Photocell/ Motion sensor/ NEMA
LED Life Span（L70/B50） >60000 hours


732-02

路灯-50x50-03


YZDL732
