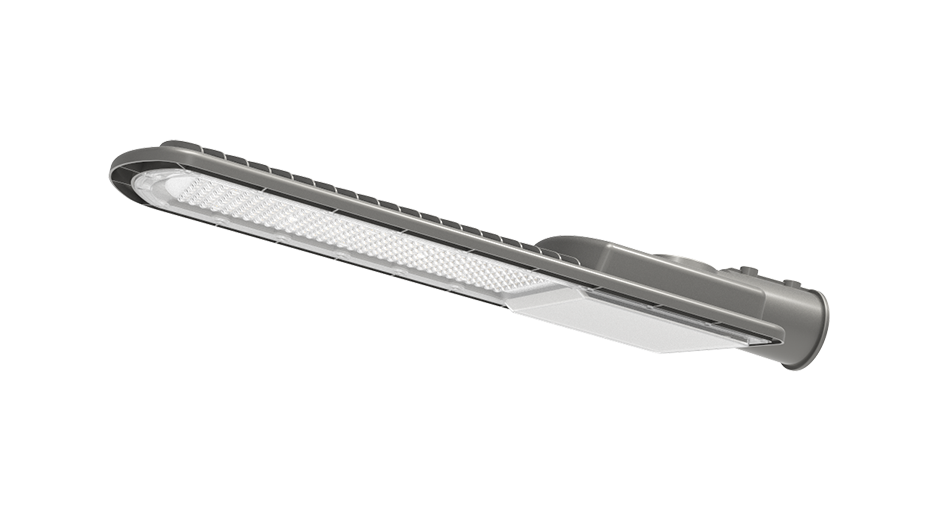

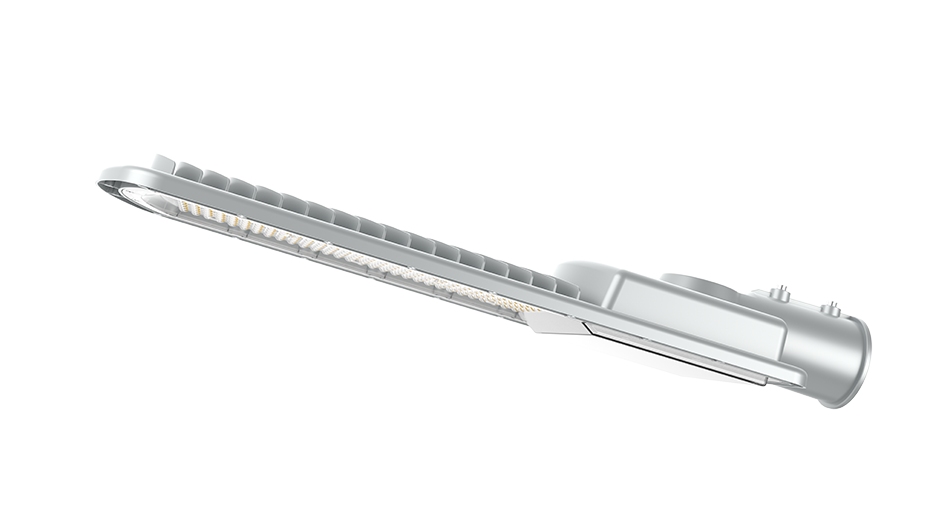

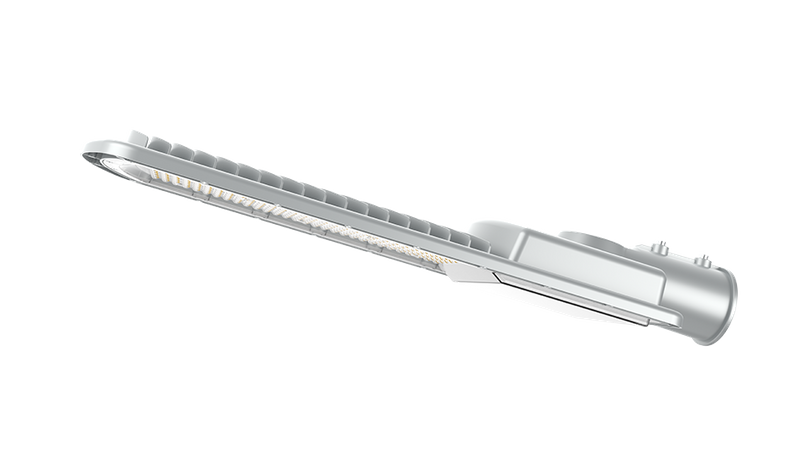

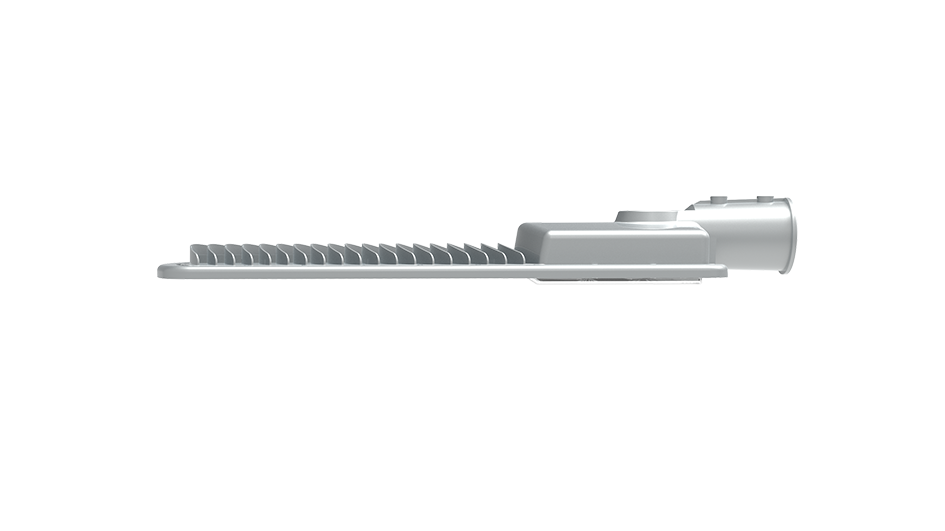

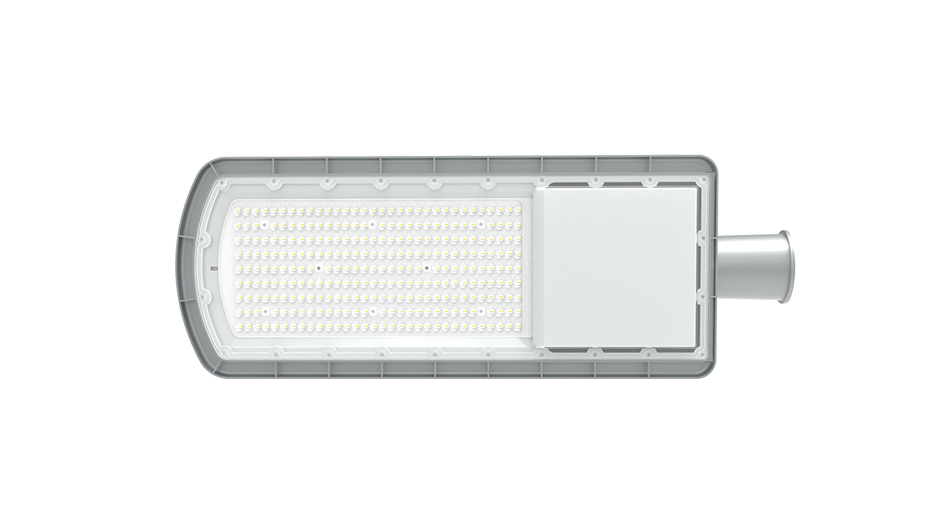

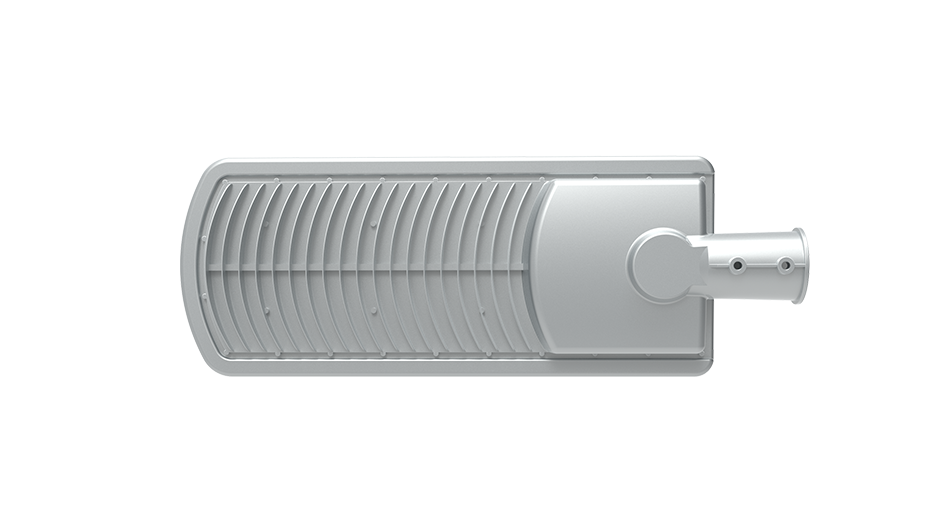

YZDL745 【30W~250W】

Die casting aluminum lamp body, integral PC lens.
IP66,IK08.
Suitable for Φ60 horizontal installation.
NEMA at request.
SPD at request.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                    YZDL745
Input Power    30W~50W    80W~100W    120W~150W    180W~200W    230W~250W
Beam Angle TYPE II / TYPE III
Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 100-150LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional SPD/Photocell/NEMA
LED Life Span（L70/B50） >60000 hours


745-02

745配光-10


YZDL745
