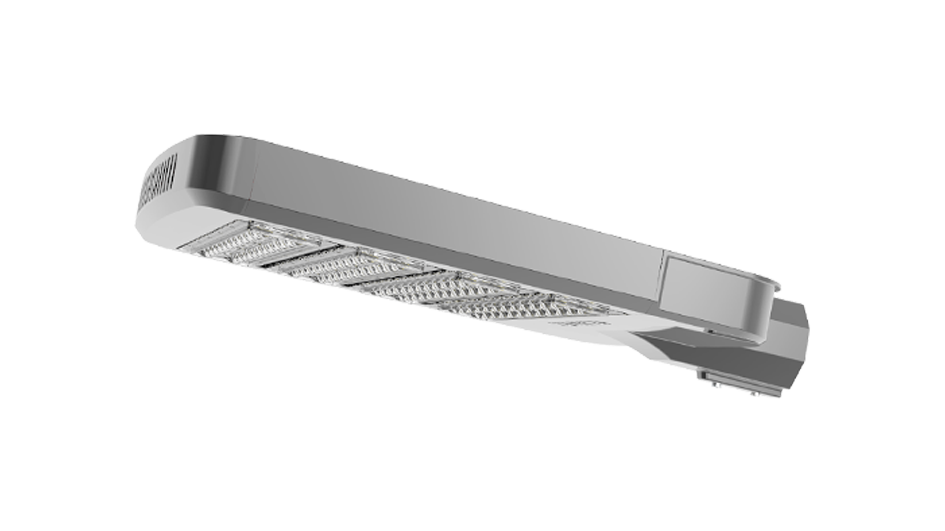

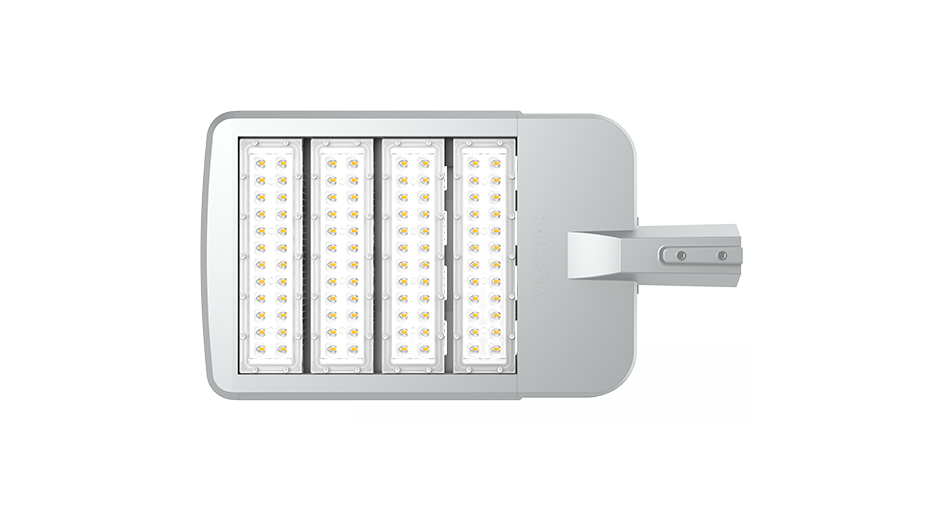

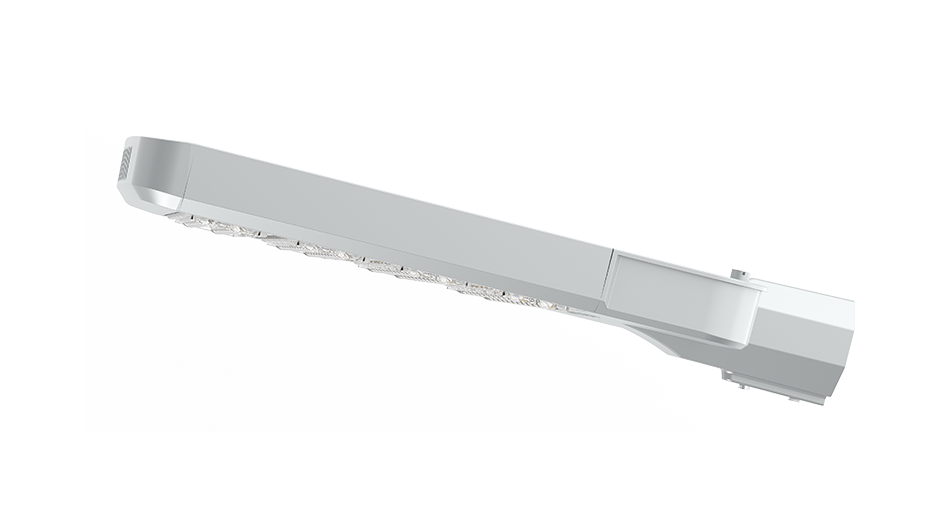

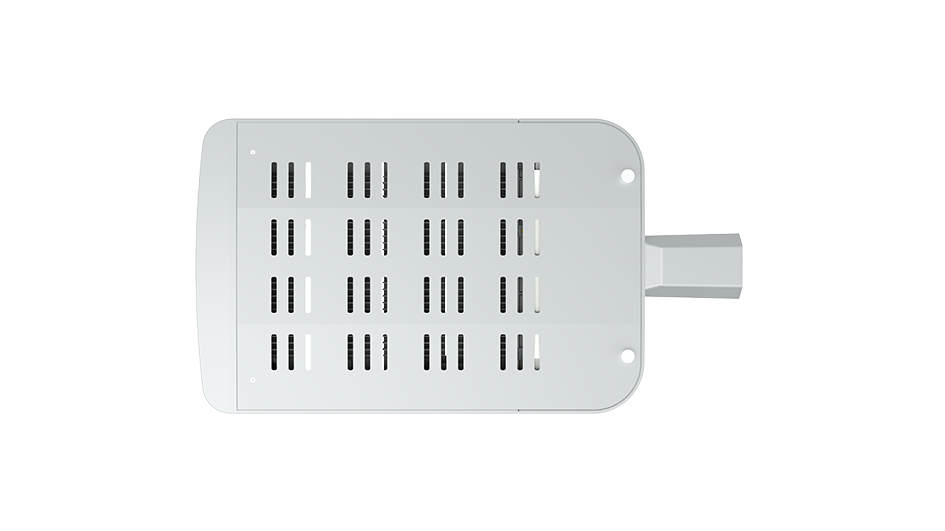

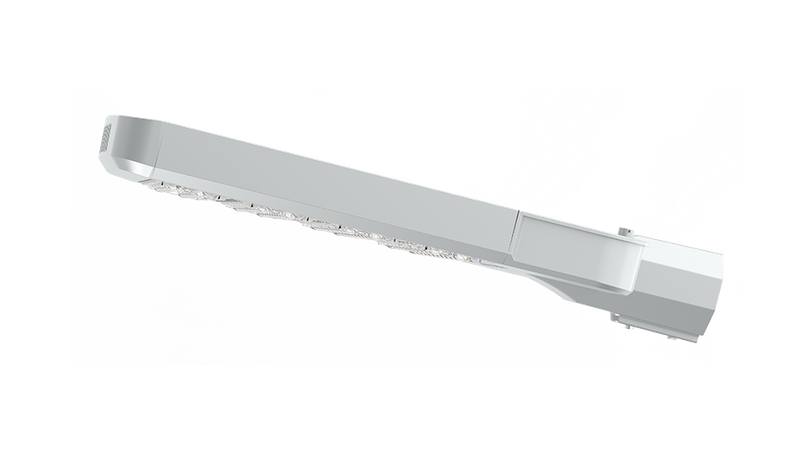

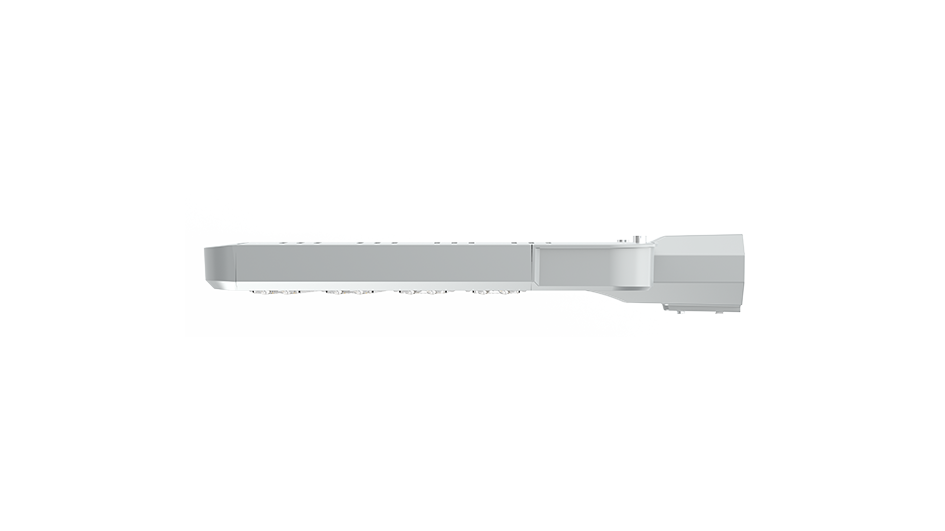

YZDL754 【50W~300W】

Die-casting Aluminum body combined with Aluminum LED Modules,flexible combination.
Excellent performance of wind speed withstand 150Km/h.
High transmittance PC diffuser,10% higher system efficiency.
Automatic rainwater cleaning to avoid leaves accumulation.
Installation: Horizontal.
Main/secondary roads,parks,city squares,districts,etc.
Availability:


SPECIFICATION                    YZDL754
Input Power    50W~60W    100W~120W    150W~180W    200W~240W    280W~300W
Beam Angle

TYPE I / TYPE II / TYPE III / TYPE IV
Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 110-170LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminium Die-casting
Diffuser Lens
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional SPD
LED Life Span（L70/B50） >60000 hours


754-02

路灯-模组-01


YZDL754

Related Products

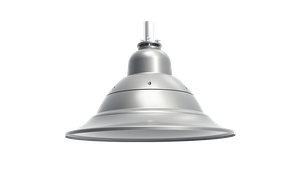

YZDL742 【90W~240W】
YZDL742 【90W~240W】

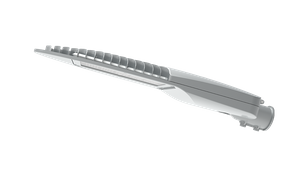

YZDL749 【40W~240W】
YZDL749 【40W~240W】

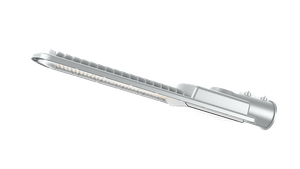

YZDL745 【30W~250W】
YZDL745 【30W~250W】

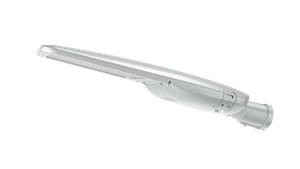

YZDL753 【30W~150W】
