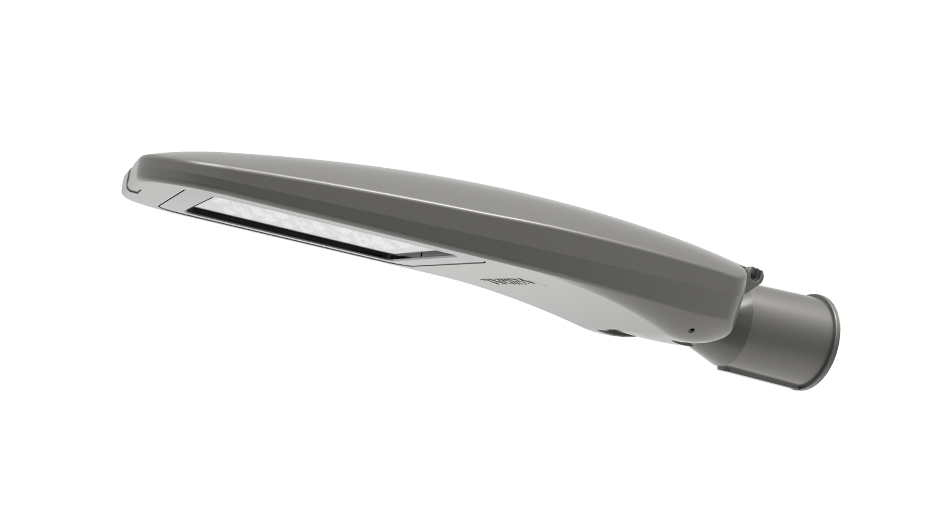

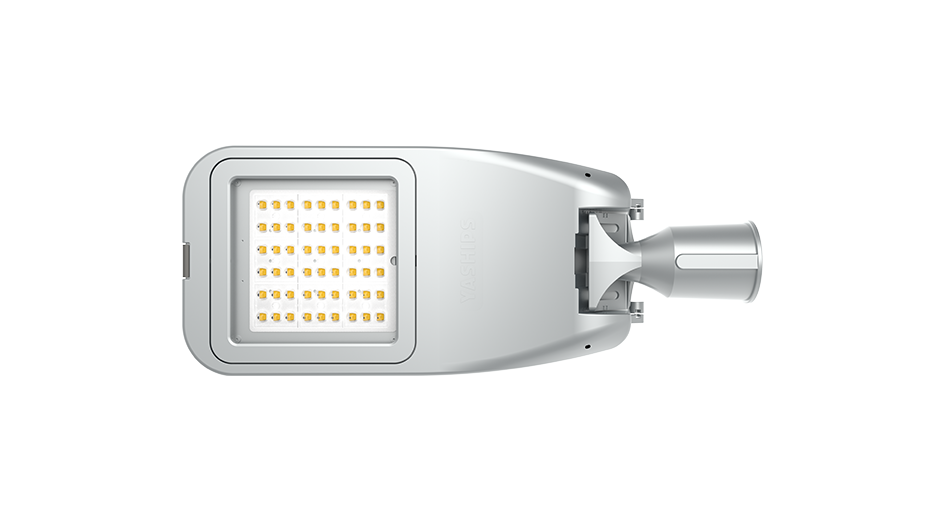

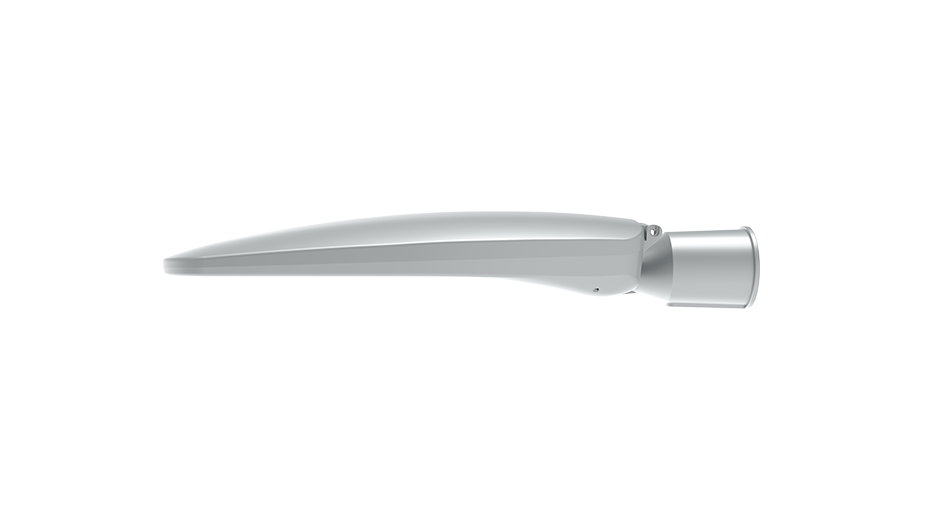

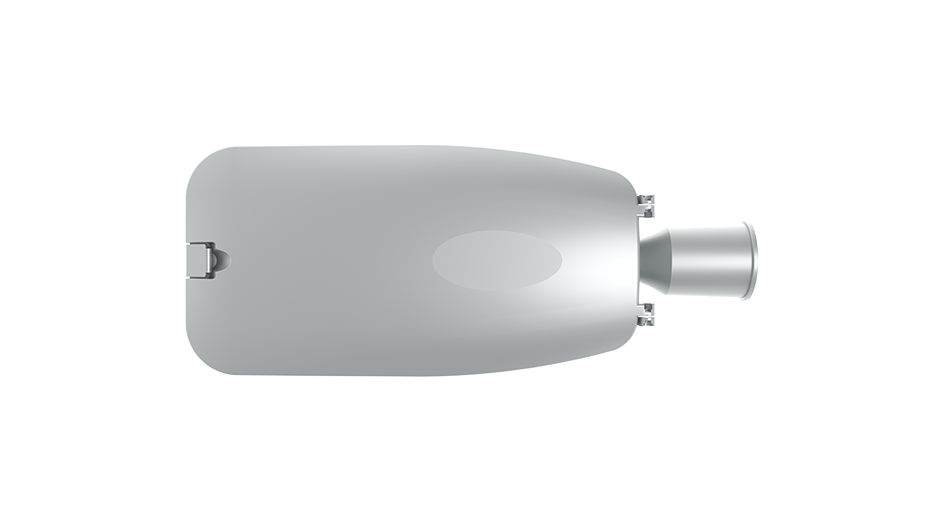

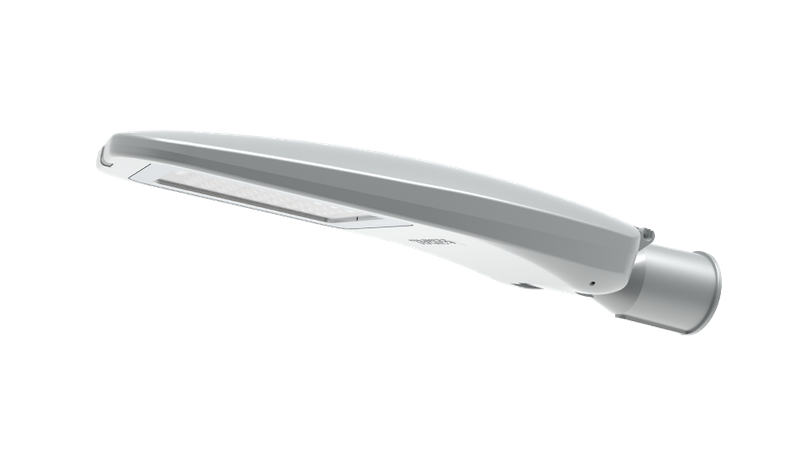

YZDL750 【40W~150W】

Die-casting aluminum fixture with corrosion -resistant electrostatic powder coat finish.
4mm super clear tempered glass.
IP66
IK08
Stainless steel screws for exterior of fixture.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                YZDL750
Input Power    40W~60W           80W~100W            120W~150W
Beam Angle TYPE I  / TYPE II / TYPE III / TYPE IV
Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 110-150LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Tempered glass
Working Temp. -30℃~+50℃
IP grade IP66
IK IK09
Optional

SPD/ Photocell/ Motion sensor/ NEMA
LED Life Span（L70/B50） >60000 hours


750-02

路灯-50x50-03


YZDL750
