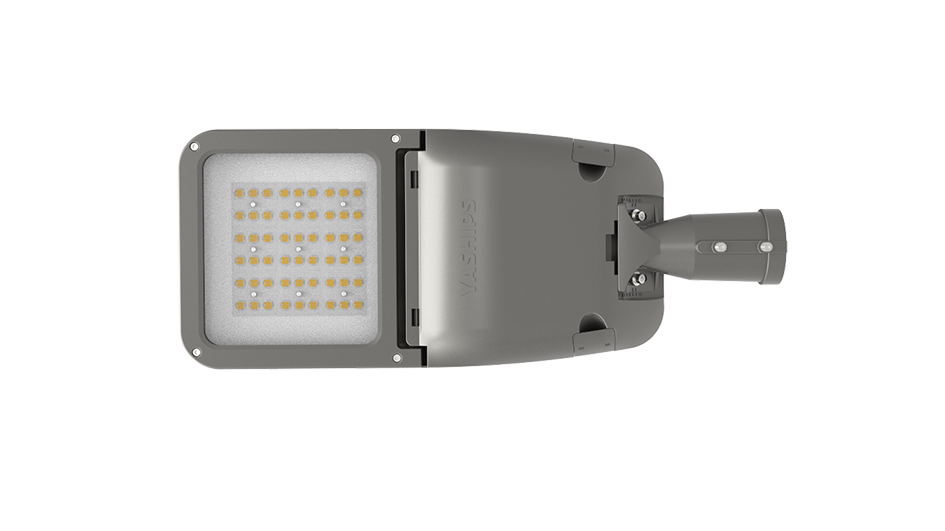

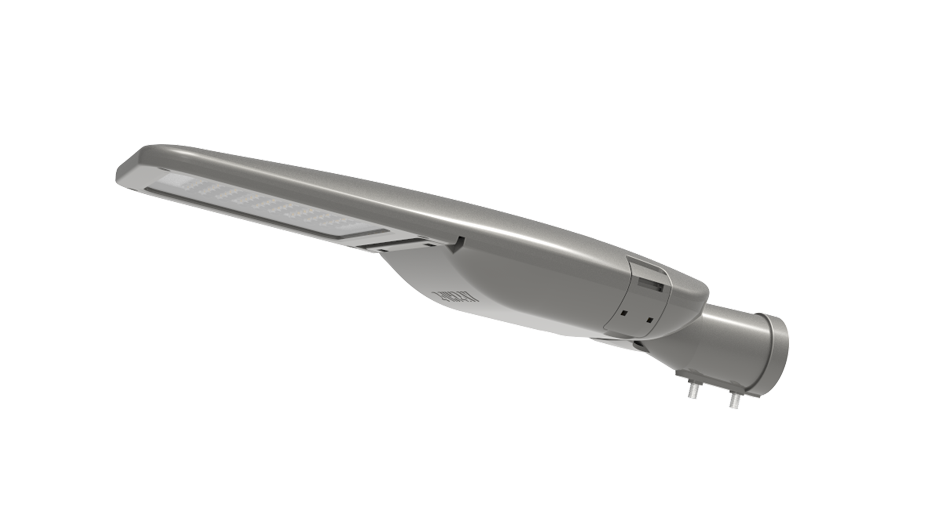

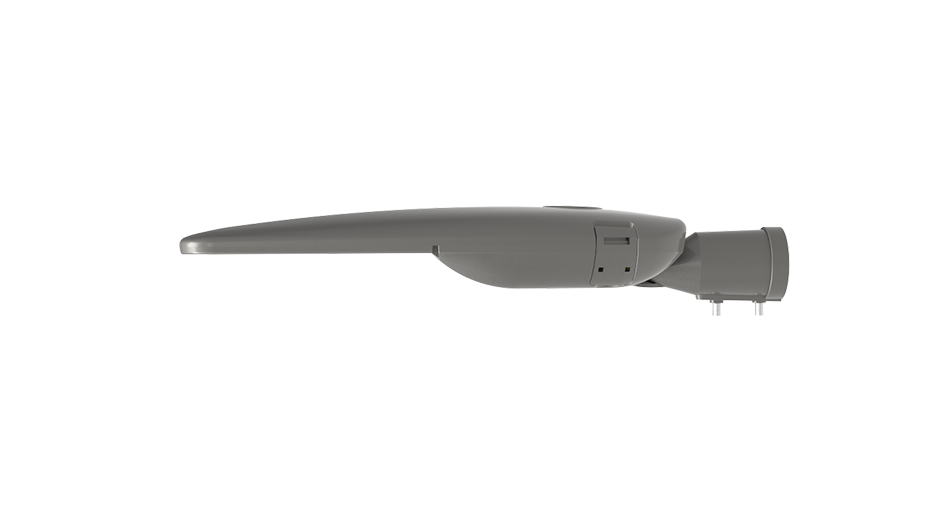

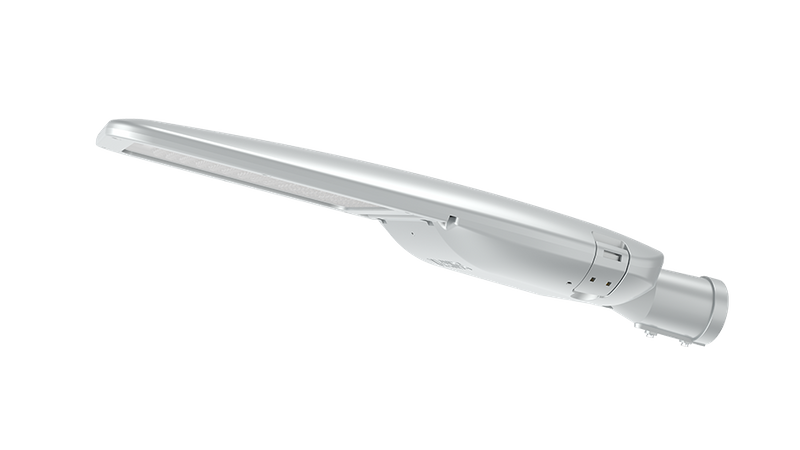

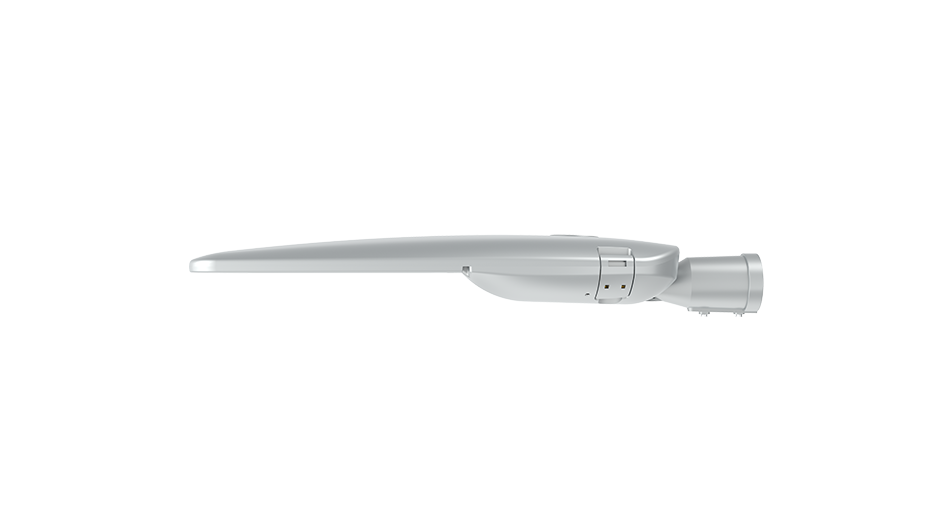

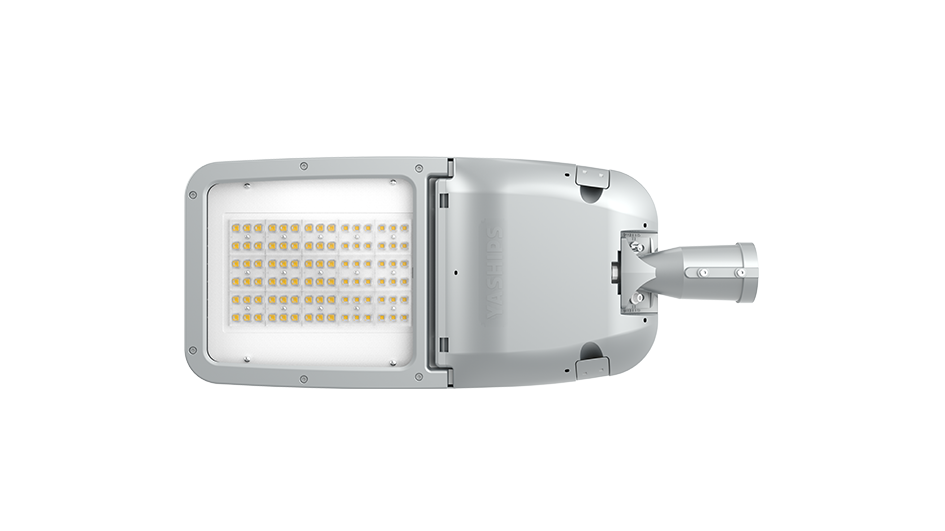

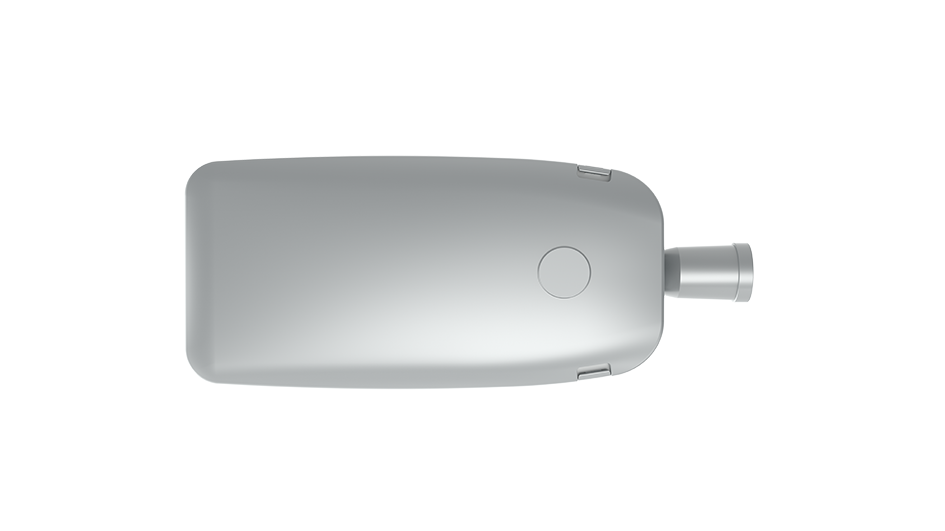

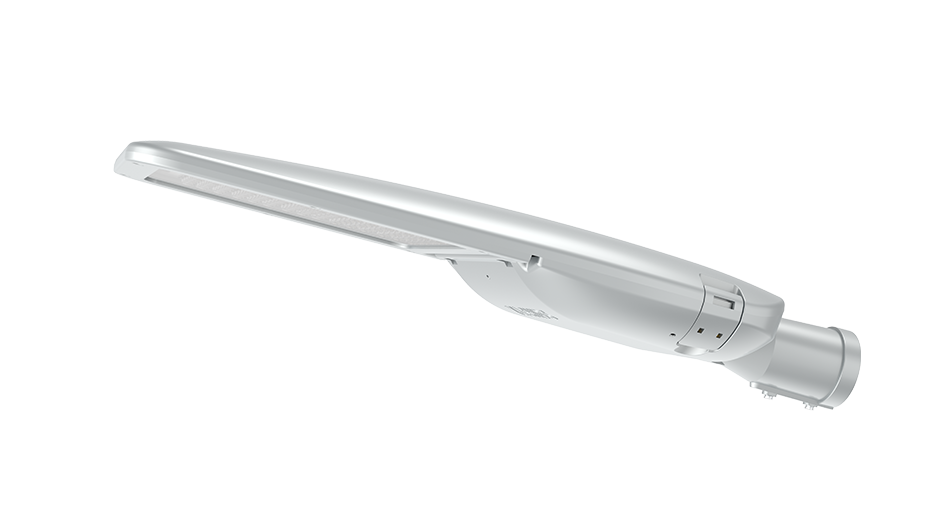

YZDL753 【30W~150W】

  • Die-casting aluminum fixture.

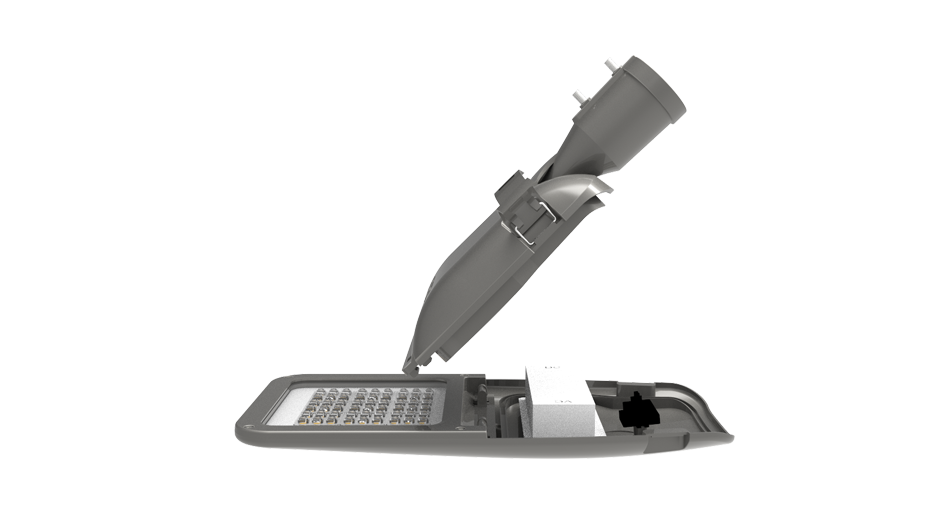

  • Toolless access, quick maintainence.
  • Self-clean.
  • Vertical/Horizontal installation.
  • Angle adjustable.

Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
SPECIFICATION                    YZDL753
Input Power   30W~40W      50W~60W      80W~100W      120W~150W
Beam Angle TYPE I / TYPE II / TYPE III / TYPE IV
Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 110-150LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Tempered glass
Working Temp. -30℃~+50℃
IP grade IP66
IK IK09
Optional SPD/Photocell/NEMA
LED Life Span（L70/B50） >60000 hours

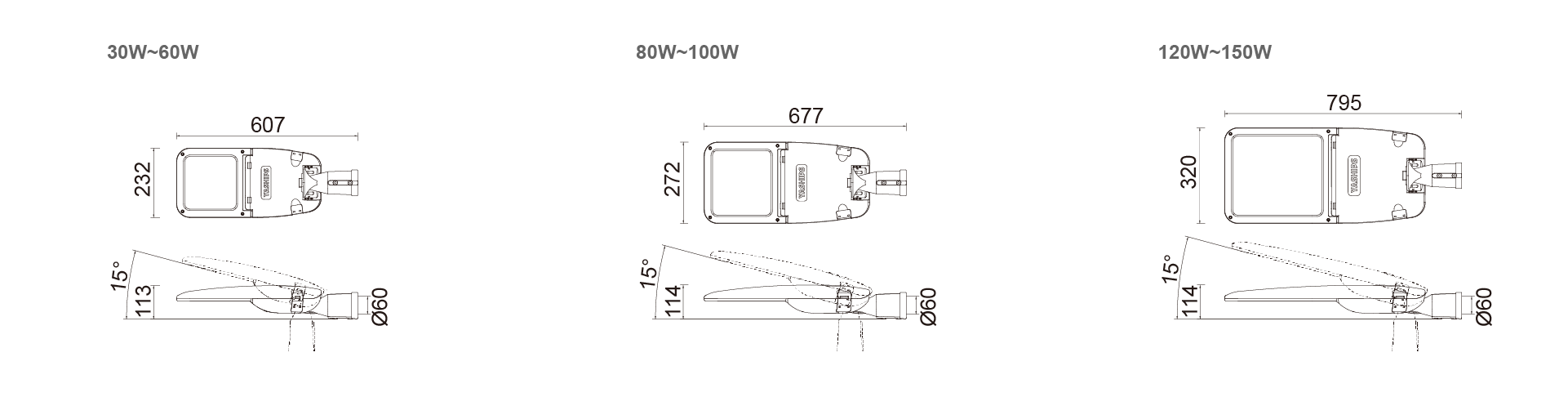

753-02

路灯-50x50-03



Road Light Street Light YZDL753 LED Light
