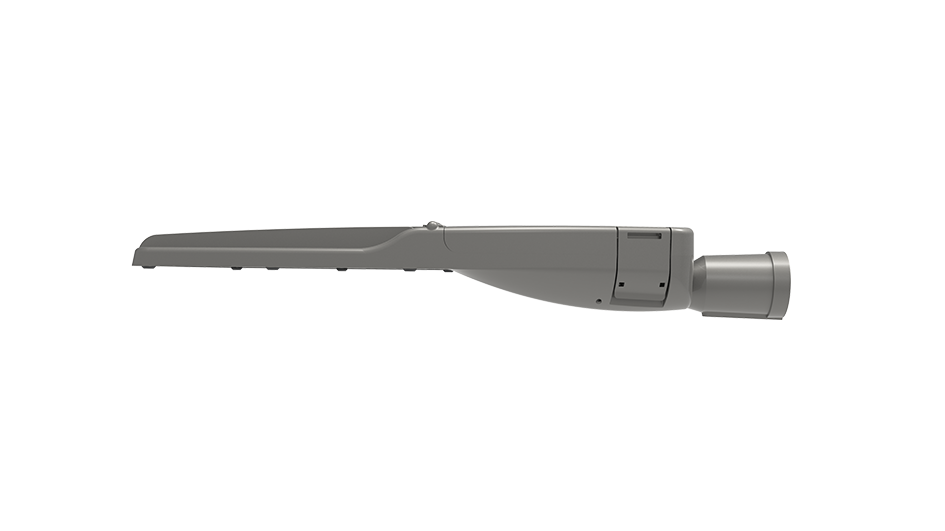

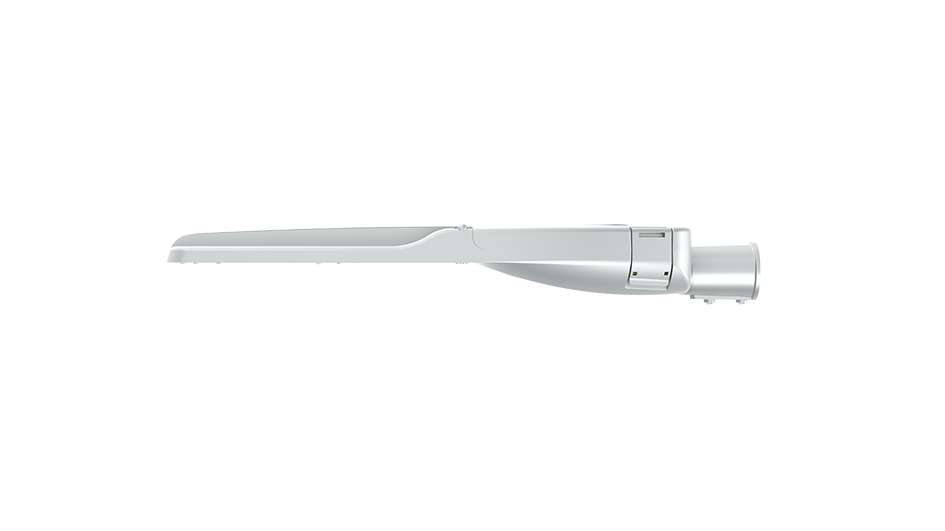

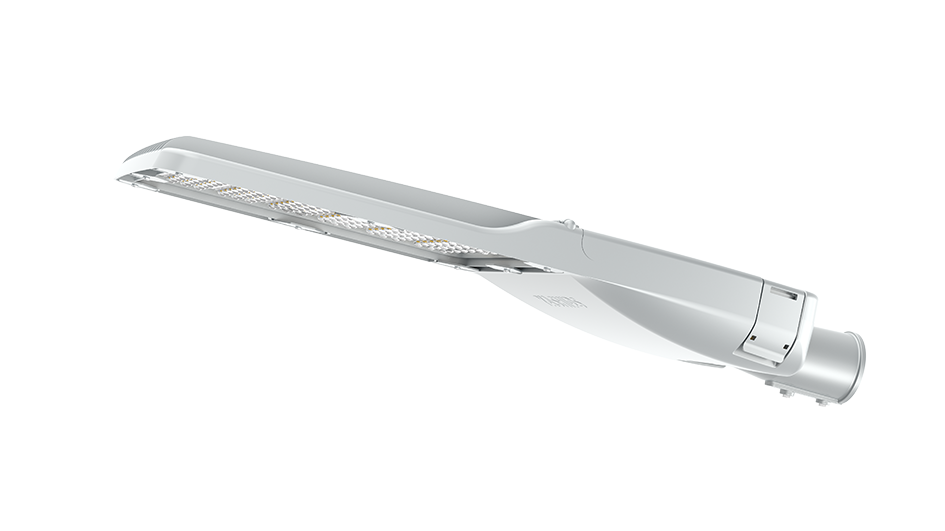

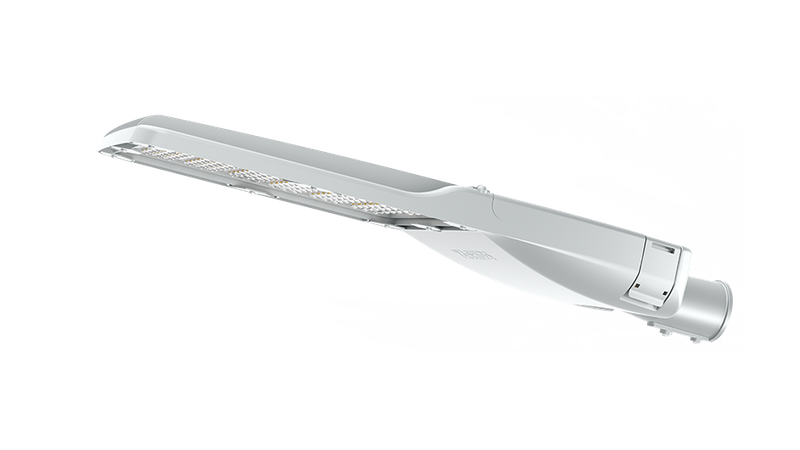

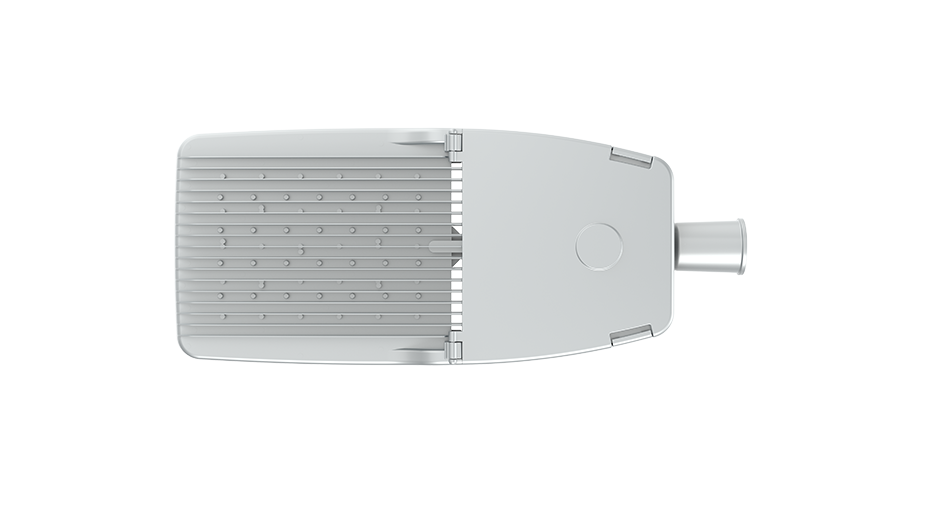

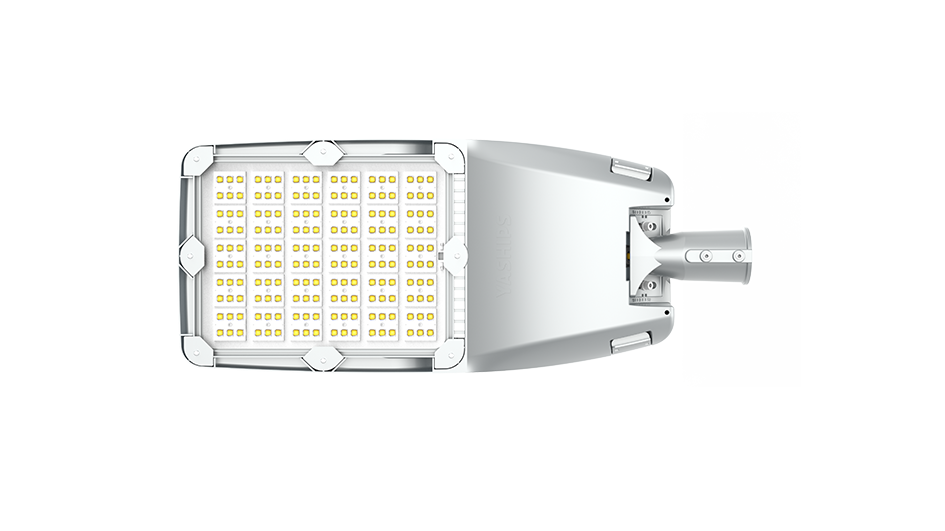

YZDL752 【40W~320W】

Die-casting Aluminum body with corrossion & UV-proof powder coating finish.
Vertical thermal dissipation technology & Independent room for LED board &
driver to prolong the lifetime Optimally.
Streamline & Elegant design provides excellent wind-resistant performance.
Toolless access for quick & easy maintainance.
 Adjustable spigot for ￠60 arm, penetration deepth ≥100MM.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                    YZDL752
Input Power    40W~60W   90W~120W   150W~180W   200W~240W   280W~320W
Beam Angle TYPE I / TYPE II / TYPE III / TYPE IV
Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 110-150LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Tempered glass
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08
Optional SPD/ Photocell/ Motion sensor/ NEMA
LED Life Span（L70/B50） >60000 hours

752-02

路灯-50x50-03




YZDL752
