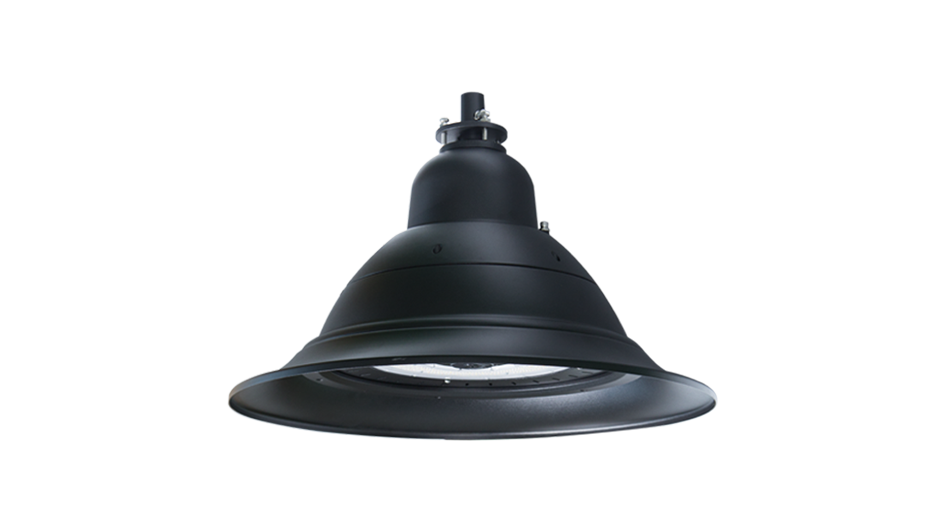

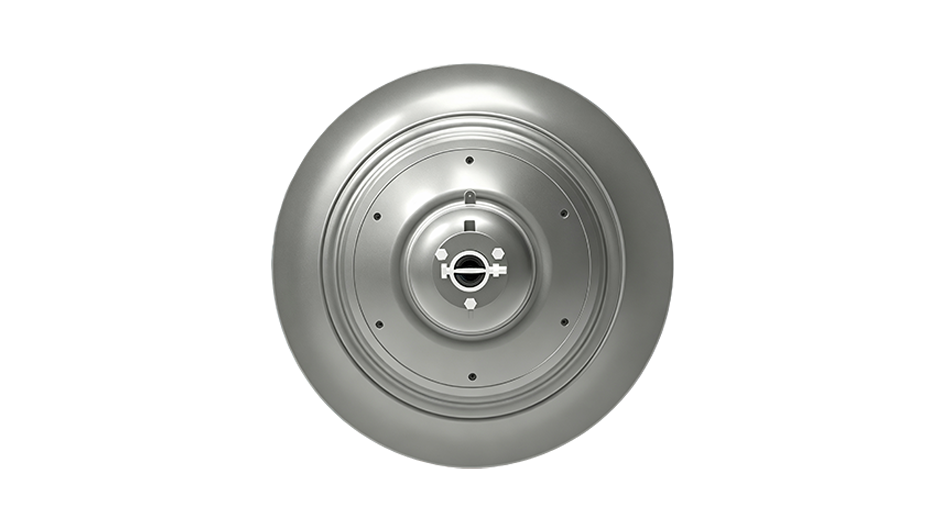

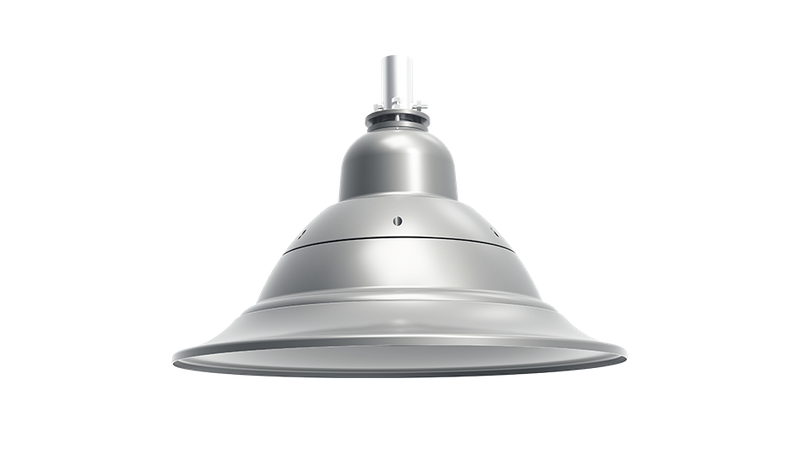

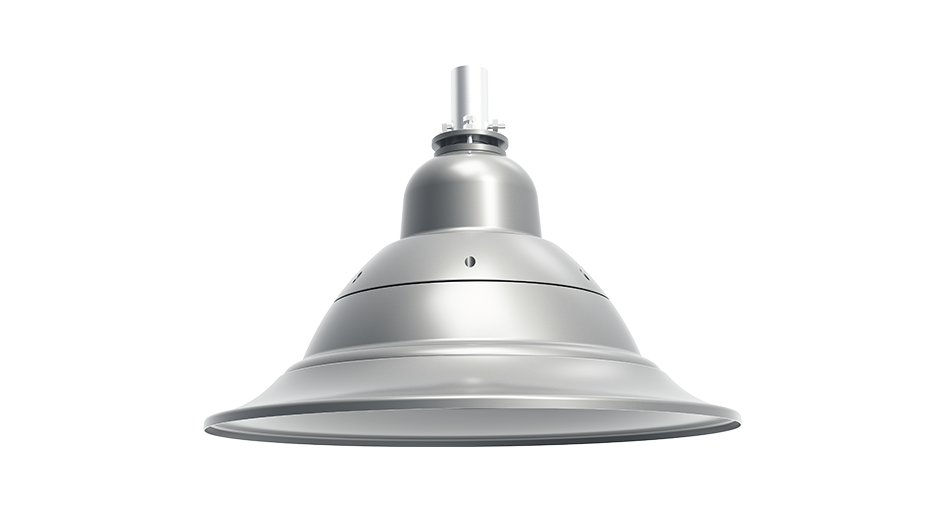

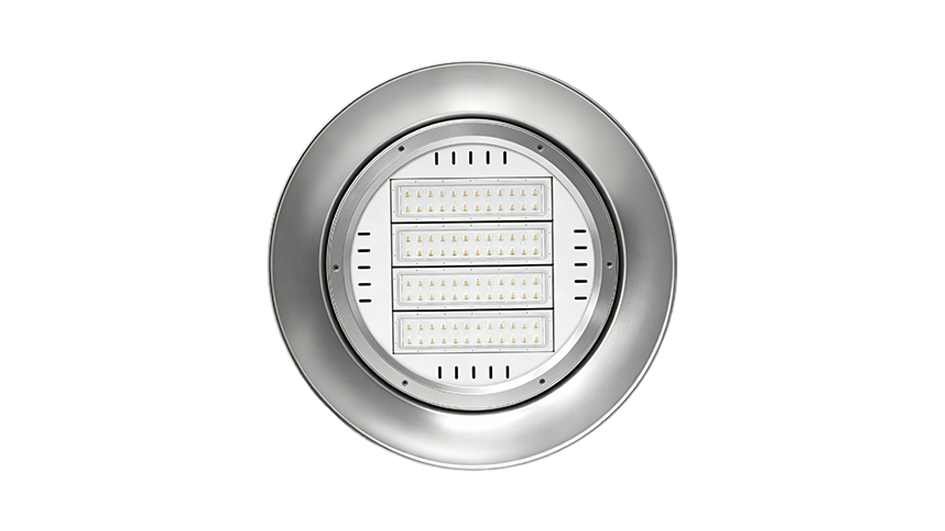

YZDL742 【90W~240W】

Die-casting Aluminum ,anti-corrosion powder coating finish.
Self-clean cover.

Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION                   YZDL742
Input Power    90W~240W
Beam Angle

TYPE I / TYPE II / TYPE III / TYPE IV
Color Temp.                                                          3000K/4000K/5000K/5700K
System Efficiency 110-170LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser PC
Working Temp. -30℃~+50℃
IP grade IP66
IK IK08

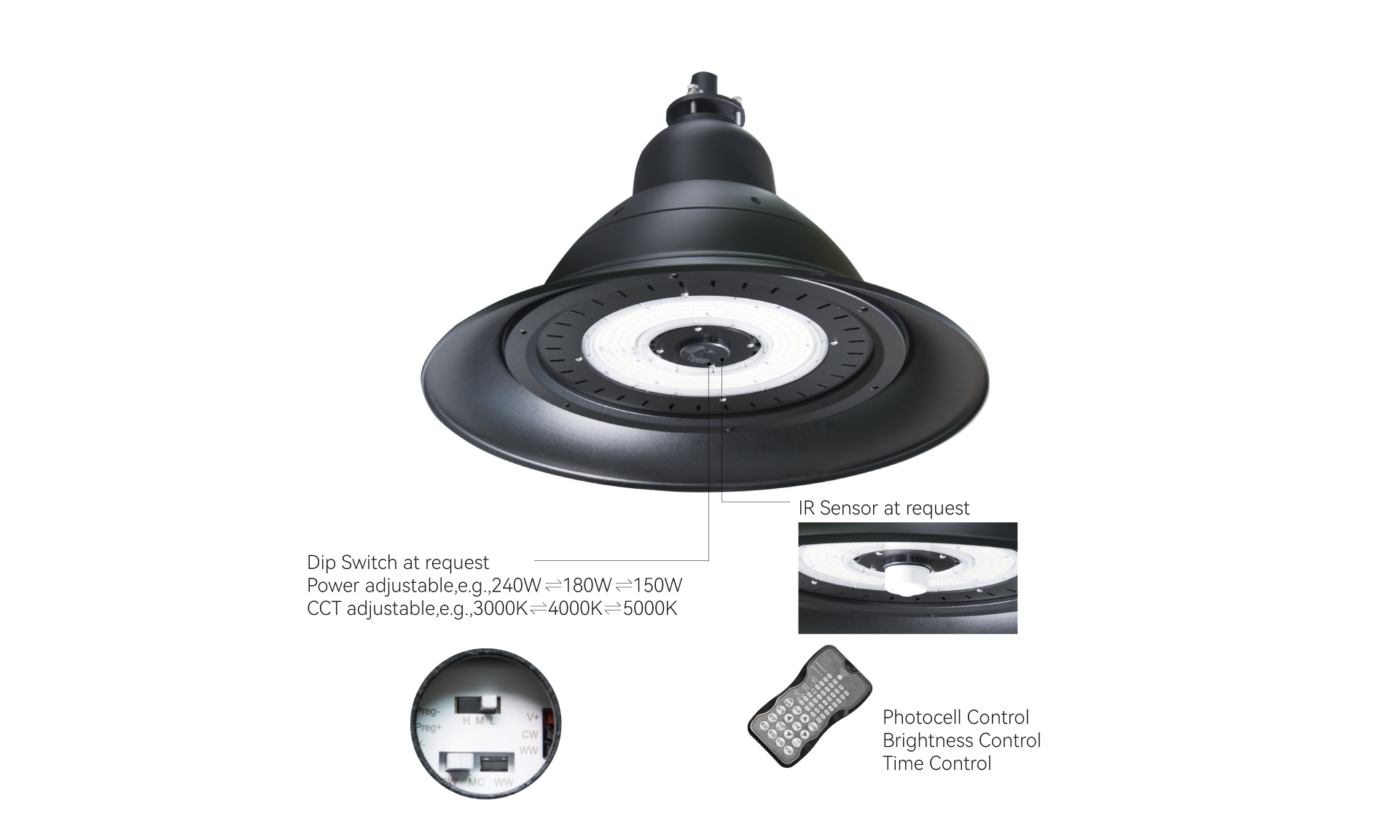

Optional SPD/ Photocell/ NEMA
LED Life Span（L70/B50） >60000 hours


742-02

路灯-模组-01


YZDL742
