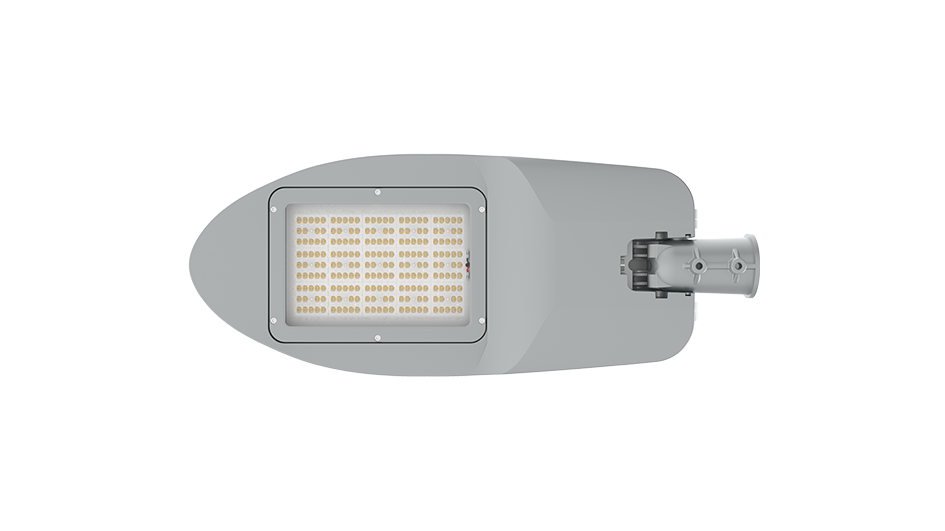

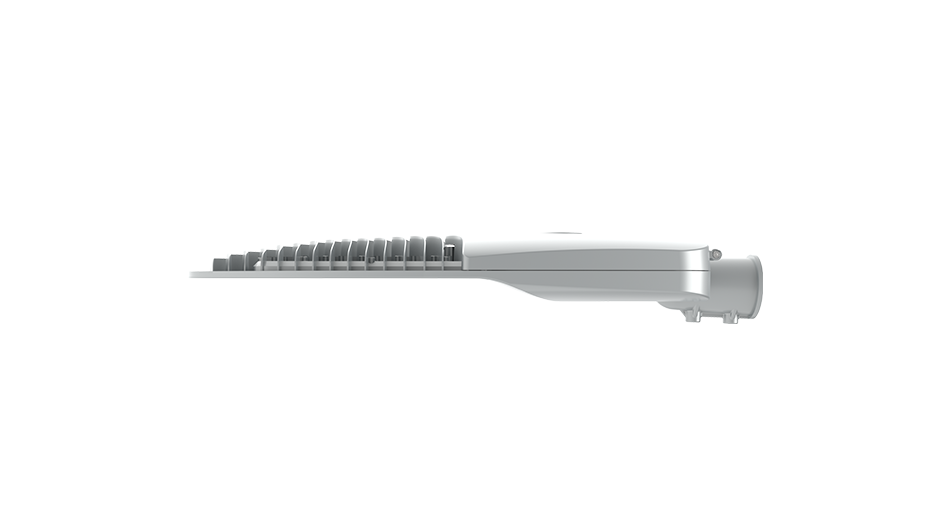

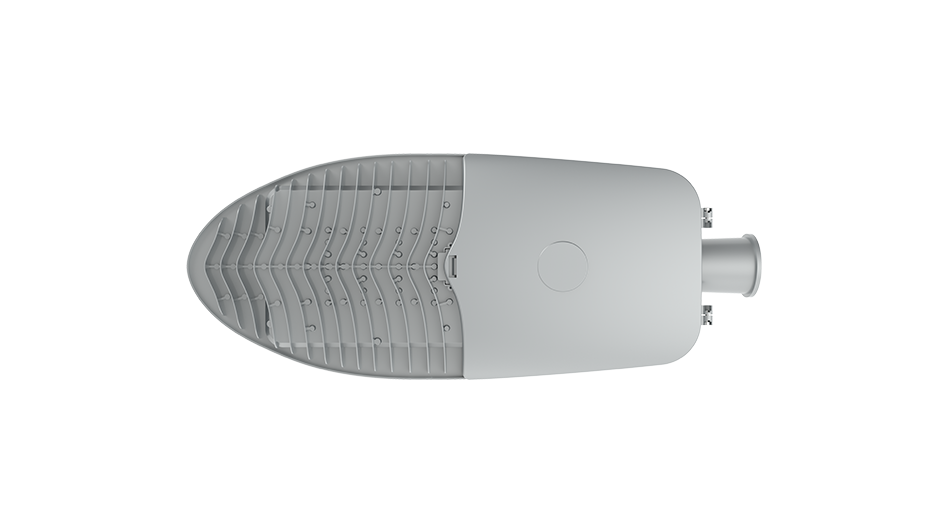

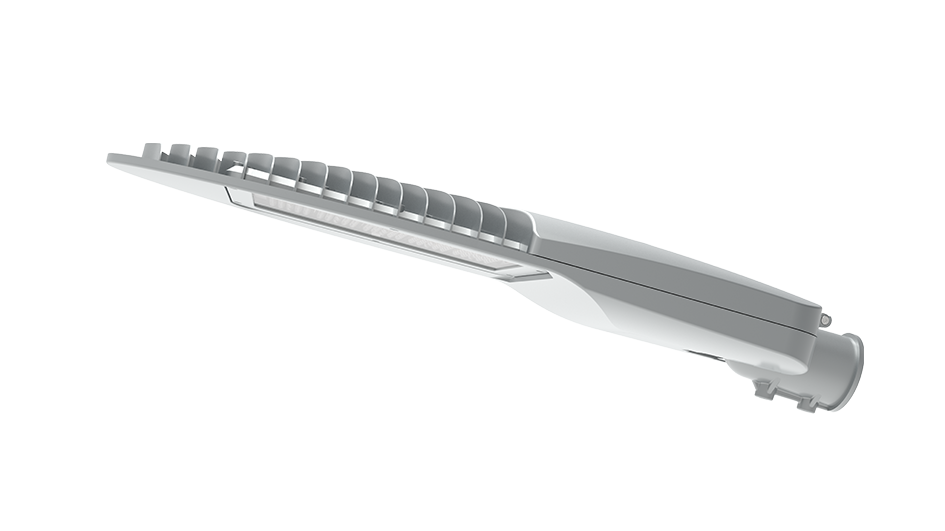

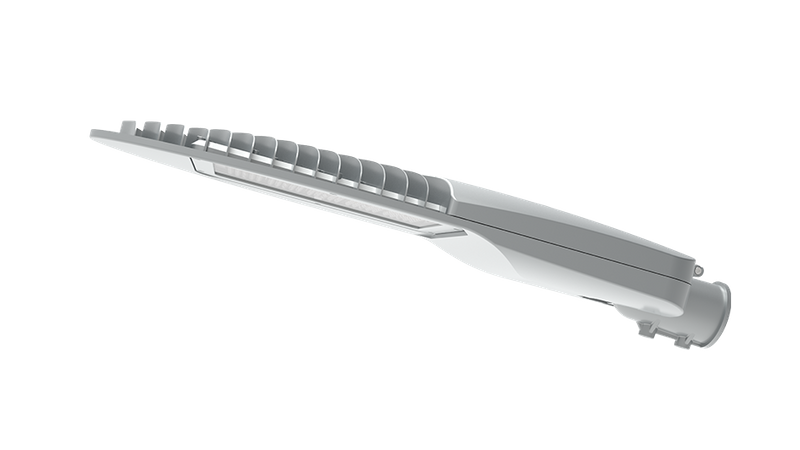

YZDL749 【40W~240W】

Die-cast aluminum fixture.
Excellent performance of wind speed withstand 150Km/h.
Toolless access for quick & easy maintenance.
High performance transmittance tempered glass+PC lens.
Water-flowing guided design cover for optimal thermal dissipation and quick self clean.
Installation: Horizontal/Vertical,angle adjustable.
Application: Main/secondary roads,parks,city squares,districts,etc.
Availability:

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


SPECIFICATION YZDL749
Input Power  40W~60W   80W~120W   150W~180W   200W~240W
Beam Angle

TYPE I / TYPE II / TYPE III / TYPE IV

Color Temp. 3000K/4000K/5000K/5700K
System Efficiency 110-150LM/W
CRI ≥70
Voltage 100-277V
Power Factor 0.95
Housing Aluminum Die-casting
Diffuser Tempered glass
Working Temp. -30℃~+50℃
IP grade IP66
IK IK09
Optional

SPD/ Photocell/ Motion sensor/ NEMA

LED Life Span(L70/B50)

>60000 hours

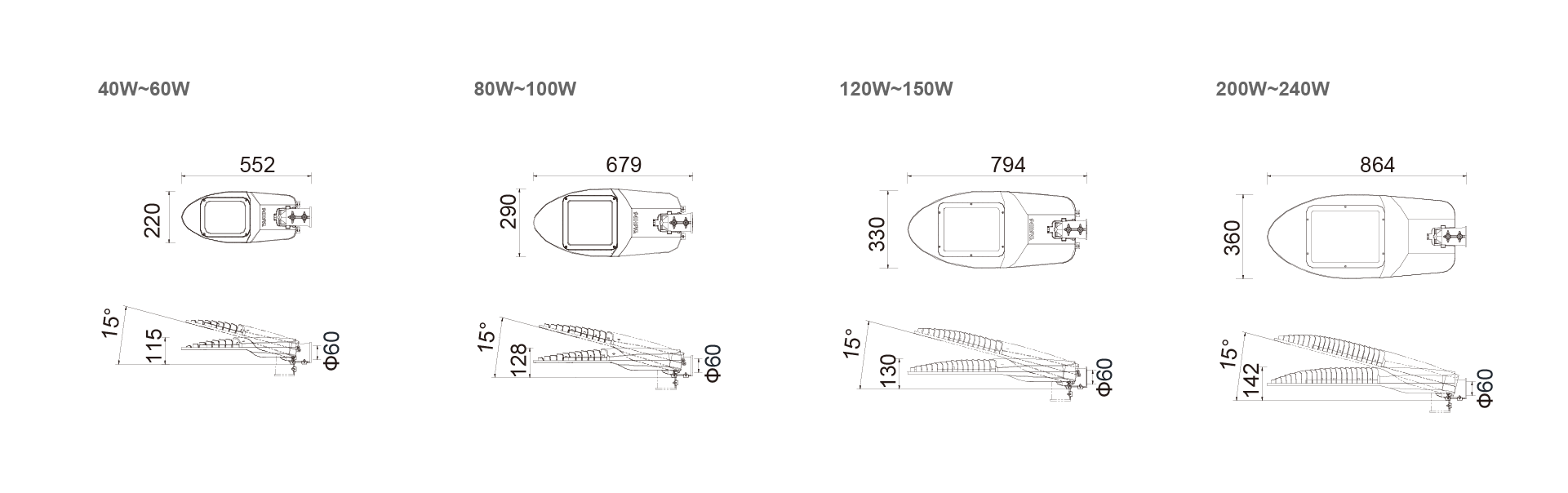

749-02
